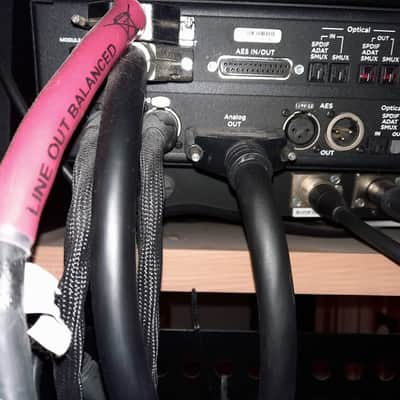

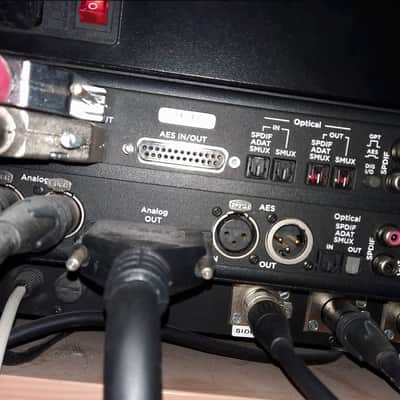

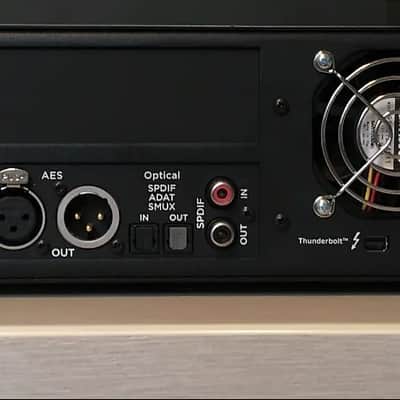

Selling my Apogee Symphony I/O MkII Thunderbolt unit with Mk1 2x6 and 8x8 modules due to gear downsizing. The chassis is from 2017, the modules are Mk1 cards fully compatible with the Mk2 chassis.

The unit is in pristine condition, kept in my smoke and pet free home studio in a rack desktop. I will include the Thunderbolt cable as well as breakout cables for the modules. Please contact me prior to purchasing to get a shipping quote as I have set up dummy figures for shipping!

The module specs are:

2x6 Analog + AES + 8 Optical Module

Provides up to 12 channels of audio input, and up to 16 channels of audio output.

INPUTS

2-channels of analog input via balanced XLR connectors 2-channels of AES digital audio input via XLR female connector Up to 8-channels of digital audio input via Optical connector

SPDIF 44.1 - 192k Sample Rates ADAT 44.1 - 48k Sample Rates SMUX 88.2 - 96k Sample Rates

OUTPUTS

- 2 channels - 8 channels - 4 channels

6-channels of analog output via DB25 connector
2-channels of AES digital audio output via XLR make connector Up to 8-channels of digital audio output via Optical connector

SPDIF 44.1 - 192k Sample Rates ADAT 44.1 - 48k Sample Rates SMUX 88.2 - 96k Sample Rates

- 2 channels - 8 channels - 4 channels

The Optical format is selected in Apogee Maestro’s Device Settings tab window.

Digital Coaxial RCA S/PDIF ports are also provided.
- SPDIF IN replaces a pair of analog or digital audio inputs. Routing of the S/PDIF input is set with the S/PDIF

Replaces drop down menu, found in Apogee Maestroʼs Input tab window.
- SPDIF OUT will duplicate any pair of analog or digital audio outputs. Routing of the S/PDIF Output is set with the

S/PDIF Mirrors drop down menu, found in Apogee Maestroʼs Output tab window.

8x8 Module

Provides a total of 16 channels of audio input and output:

• -  8 channels of analog input and output
• -  8 channels of digital input and 8 channels of digital output through either the AES DB25 connector (Yamaha Pin-outconfiguration), or Optical portsTo select either Optical or AES digital audio:
  1. ToggletheDIGI/Obuttontothedesiredposition
  2. Power-cycletheSymphonyI/O(turntheunitoff,thenon)Optical ports can be configured to use the S/PDIF or ADAT/SMUX protocols.

S/PDIF 44.1 - 192k Sample Rates ADAT 44.1 - 48k Sample Rates SMUX 88.2 - 96k Sample Rates

- 2 channels of audio in and 2 channels of audio out
- 8 channels of audio in and 8 channels of audio out
- 4 channels of audio in and 4 channels of audio provided per port - 8 channels in and 8 channels out total when using both ports

Digital Coaxial RCA S/PDIF ports are also provided.

• -  SPDIF IN replaces a pair of analog or digital audio inputs. Routing of the S/PDIF input is set with the S/PDIFReplaces drop down menu, found in Apogee Maestroʼs Input tab window.
• -  SPDIF OUT will duplicate any pair of analog or digital audio outputs. Routing of the S/PDIF Output is set with theS/PDIF Mirrors drop down menu, found in Apogee Maestroʼs Output tab window.
