Lexicon PCM 80/81/90/91 white OLED display replacement - 1st in the world since 2016!

Lexicon PCM series owners, your long quest for a display replacement is over!

This is the first ever state-of-the-art White OLED display replacement for the out-of-production Futaba M202SD01H VFD display used in Lexicon PCM 80/81 and 90/91 series digital effects/reverb processors.

Get one to:

• Fix your broken Lexicon PCM 80/81/90/91 that has a non-working display rather than selling it as faulty for peanuts!
• Replace your current VFD display before it breaks at any time soon with an awesome, state-of the art technology, white OLED display that will give a few more decades to your beloved effects processor!
• Add much more value to your Lexicon with a higher-spec, awesome looking new display and make that a strong selling point!
• Enable yourself to change the color of your Lexicon display to any color possible by simply replacing the original green/blue plastic display filter of your Lexicon with a piece of transparent colored plexiglass cut to the dimensions of the display bezel and fixed in place with a few drops of contact glue (something quite complicated in terms of color correctness with the greenish VFD where you have to account for color mixing etc.)

Be aware: this is NOT an out-of-the-self standard display!
Lexicon PCM 80/81/90/91 series use a peculiar non-standard VFD display impossible to find anymore!
Which means that, NO previously available display on the market would work with your particular Lexicon, and that is NOT just a matter of flipping some pins!

This OLED display module is the result of a long research & development process and uses a custom software & hardware design to make the impossible possible! It is carefully hand-made and thoroughly tested piece-by-piece (no cheap mass-produced crap here).
The advantages of the Lexicon PCM 80/81/90/91 OLED display from LOGOS Electronics NZ over the old Lexicon VFD display are numerous:

• Lower voltages (5V & 12V) instead of 5V & 50V of Futaba M202SD01H VFD display used in these Lexicon series, making it safer and less prone to component damages

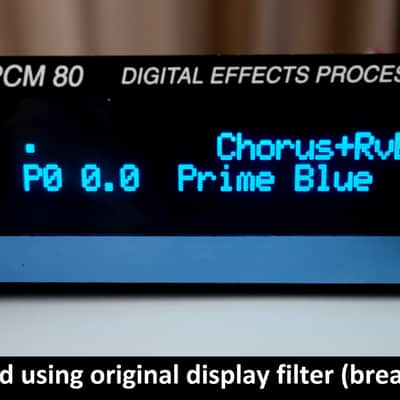

• Amazing contrast (10000 : 1) impossible to achieve with either VFD, LCD or even (natively) TFT displays! (see photos)
• Much longer life span (50000 hours half-life time) compared to the VFD (around 20000 hours, IF its capacitors and transistors will not blow-out much earlier than that due to high voltages and aging!)
• Less than 50% power consumption
• Wider viewing angle (near 170 degrees)
• Higher brightness (100 cd/m2) & color saturation (see photos)

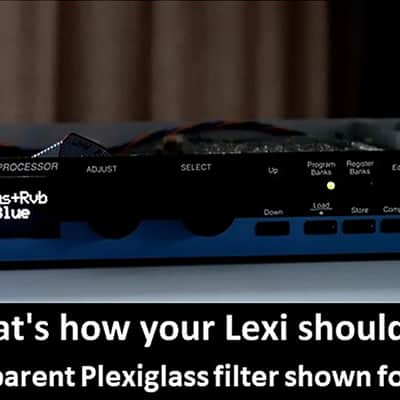

• White color allows you to install ANY color display filter (which can simply be a properly-cut colored piece of transparent plexiglass) in your Lexicon (e.g. CLEAR, RED, GREEN, BLUE, YELLOW, ORANGE, PURPLE, BROWN, MAGENTA, GREY etc.) to immediately get your preferred looks (a red filter will make your Lexicon looking like a Bricasti ;) ) result using a grey or transparent display filter display is shown for demonstration purposes only; no filter is included with the display and I don't make neither sell these).

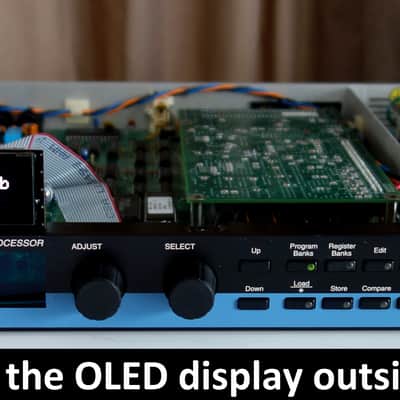

• Very compact and sturdy PCB sandwich construction with no exposed glass areas or pressurized gases that can easily fall into pieces as with the VFD (see photos)

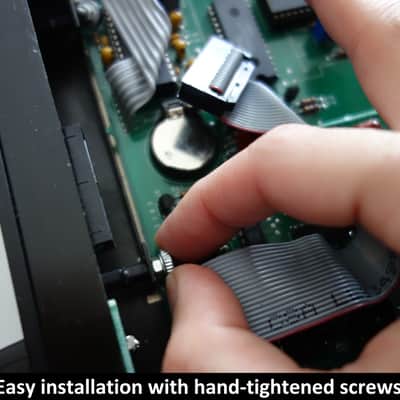

• Easy to install with hand-tightened screws, plug and play!
• Proper cable connector prevents false/reverse installation (and damage to the display as with the VFD)
• Possibility for future display firmware updates if needed

Hardware is currently in version 2.0 as shown in the 4th photo.

Testimonials (from 2 main marketplaces):

"Hey! Just dropped the new display into my PCM 80 - it works perfectly and looks *incredible*. Thank you so much for your hard work on this, it's a huge upgrade to save a piece of gear I've grown to love. I wasn't sure if it was going to be worth it at first: my old display was still working, but the bottom row was intermittent until warmed up, plus I tend to prefer the "vintage look" of things, but it is SO MUCH BETTER!"

"OLED display looks amazing!!! so pleased. fast shipping. great communication :-)"

"It arrived today and works perfectly! Amazing work!"

"PERFECT item, incredibly fast shipper, great transaction - thank you!"

"Great communication with seller.item works great.A+ seller"

"Excellent buy.....works great, good communication, fast shipping!"

"Great product, fast delivery Thankyou A+++"

"Awesome seller, item was packed extremely well. Great support on the product"

"SUPER ...Thanks for All !!!!"

"Great screen. Easy to install. Looks amazing!! Thanks"

Flat $30 USD International tracked shipping cost from New Zealand (combined shipping: no additional charge for additional items).

The price is for one display module only. No effects processor nor display filters are included!

Please note: Any import taxes/duties/import fees are not included in the price of the item. These charges are the buyer's responsibility.

Also: I do not ship to mail forwarding services, only your real address as I have had bad experiences in the past with those services!

Currently I have included a limited number of regions/countries that I ship to due to previous issues with shipping to particular countries. Please contact me to discuss whether it is possible to ship to your country if it is not listed.

Please also contact me if you would like the display to be shipped via a (more expensive) faster international courier service .

Each display is fully tested before shipping and packed securely.

The number of displays produced is limited.
