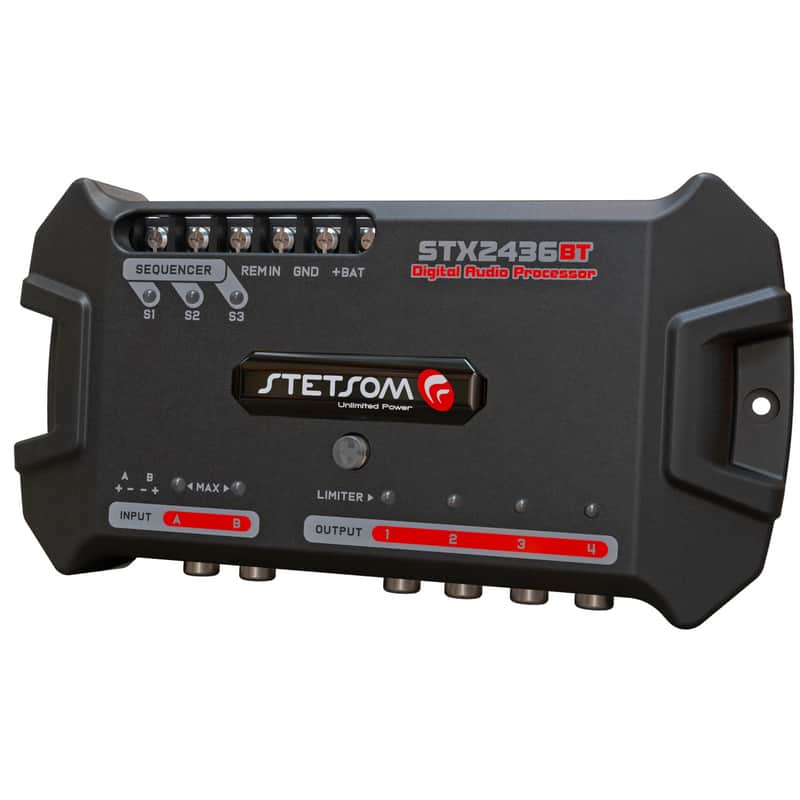

Stetsom STX2436BT Bluetooth Equalizer / Crossover 4 Output Channel with Full DSP

Stetsom STX2436BT Bluetooth DSP Equalizer / Crossover 4 Output Channel Full Digital Signal Processor

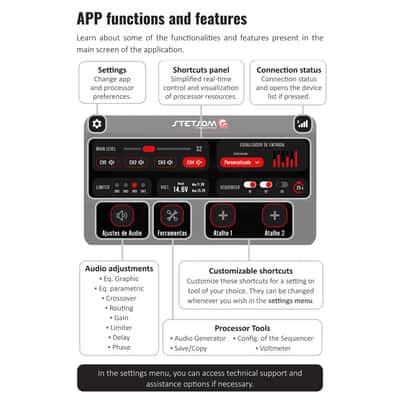

• The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to enhance the performance of your audio system. Through Bluetooth communication, the processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modification of equalizations, crossover filters, alignment, gain control, phase inversion, limiter, digital input/output routing, and other treatments.
• Its exclusive remote sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).

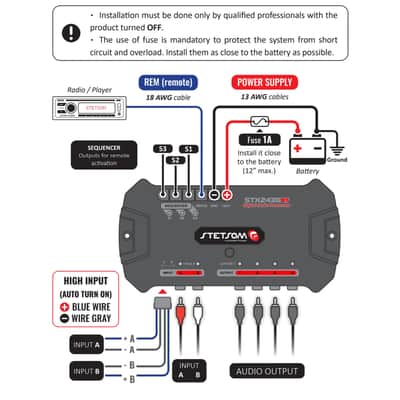

1. SEQUENCER

2. REM IN

3. NEGATIVE POWER CONNECTOR (GND)

4. POSITIVE CONNECTOR (+BAT)

5. SMC INPUT

6. AUDIO INPUT WITH WIRE CONNECTION (HIGH INPUT)

7. AUDIO INPUT WITH RCA CONNECTION (INPUT)

8. MAX LEDs (INPUT CHANNELS)

9. COMMAND BUTTON

10. AUDIO OUTPUTS CHANNELS (OUTPUT)

11. LIMITER LEDs (OUTPUT CHANNELS)

Technical Specifications

Number of Channels

• Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4)

Graphic Equalizer

• 15 Bands (gain ±12dB)

Graphic Equalizer Presets

• 12

Parametric Equalizer

• 5 Bands (1 Input + 4 Output) (gain ±12dB, Factor Q 0.4 a 10.0)

Crossover with Variable Freq.

• Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª

Crossover Presets

• 11

Routing between input/output

• A, B ou A+B

Alignment

• 0ms ~ 8ms (275cm)

Phase Inversion

• 0° ~ 180°

Limiter

• Threshold: -24dB ~ 0dB Attack: 0.1ms ~ 100.0ms e Release: 1ms ~ 1600ms (manual or auto.)

Master Level

• 0 ~ 100%

Output Gain

• -45dB ~ +15dB per output

Frequency Generator

• 10Hz ~ 22kHz and Level -60 ~ 0dB

Frequency Scan

• Starting and ending frequency: 10Hz ~ 22kHz Level: -60dB ~ 0dB

Pink Noise Generator

• Gain: -60dB ~ 0dB

Battery Voltage Monitor

• Current, minimum and maximum voltage

Password

• 6-digit password

Input Impedance

• RCA: 28 kΩ / FIO: 1 kΩ

Output Impedance

• 47 Ω

Signal to Noise Ratio

• > 90dB

Total Harmonic Distortion

• < 0,01% T.H.D.

Channel Separation

• > 80dB

Frequency Response

• 10Hz ~ 22kHz @ 0dB

Max. Input Voltage

• RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu)

Max. Output Voltage

• 5,6 Vpp (+8,2 dBu)

Power Supply

• 10V ~ 15V DC

Max. Output current SEQUENCER

• 180 mA per output

Rated Current Consumption

• 170mA @ 12.6V DC

Maximum Current Consumption

• 710mA @ 12.6V DC

Protection

• Short Circuit (PTC fuse)

Bluetooth Version

• Low Energy (LE)

Range

• 15 meters*

Compatibility

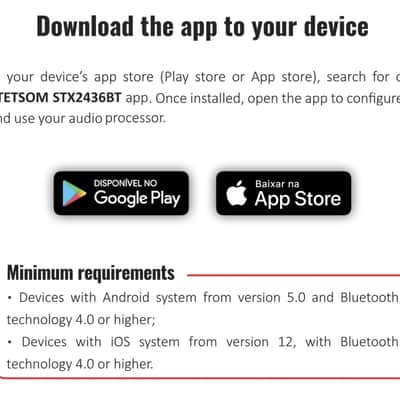

• Android 5.0 or higher iOS 12 or higher

Dimensions (H x W x L)

• 1.3” x 3,8” x 7,4”

Weight

• 0.40 Lb

Compatible SMC Remote Control

• Sold Separately
