KM 184 MT

Authentic, vibrant, transparent: The perfect high-resolution instrument microphone

• High-precision tool for instruments and voice
• Reference class small diaphragm microphone

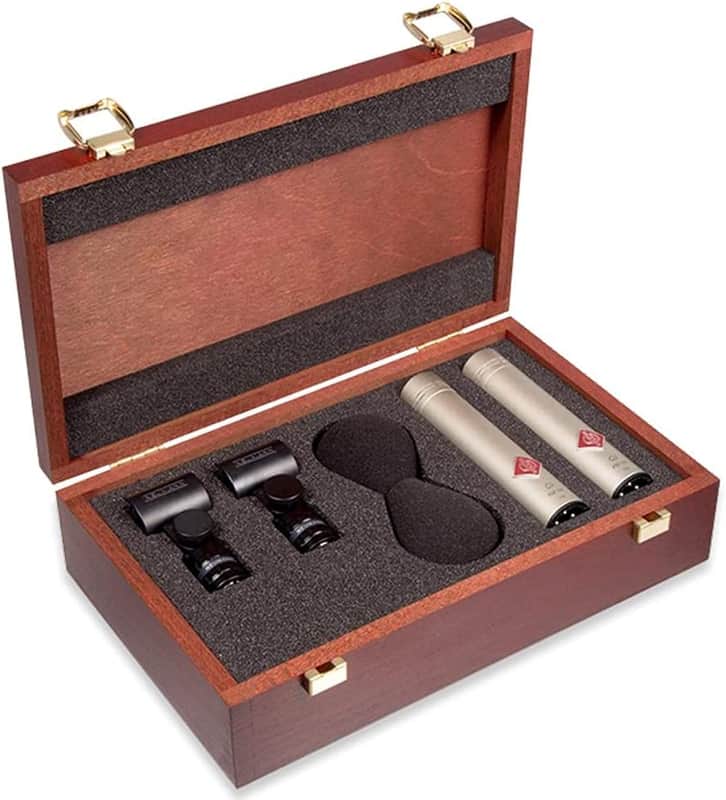

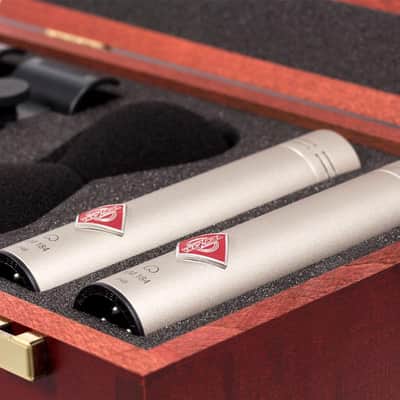

• Also available in stereo sets

Experienced users often describe the sound of our small diaphragm microphone as „fresh“ and „vivid”. This is – among other factors – due to a slight treble lift around 9 kilohertz. The KM 184 is an experienced all-rounder, a mic for all seasons. It captures virtually any instrument with amazing complexity and depth of sound.

Another advantage: thanks to the extremely tight production tolerances, all KM 184 microphones produce a very consistent sound. Therefore, they can easily be used as a stereo pair with exact spatial imaging for all stereo recording methods.

FEATURES

• Versatile small membrane microphone primarily for instrumental recordings
• Slight treble lift for fresh and vivid sound
• Precise cardioid directionality with excellent rejection of rearward sound
• Uncolored reproduction of neighboring sound sources
• Tight production tolerances – perfect for stereo recordings

Acoustical operating principle: Pressure gradient transducer
Directional pattern: cardioid
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 22 dB
Equivalent noise level, A-weighted1): 13 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
Maximum SPL for THD 0.5%2): 138 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3.2 mA
Matching connectors: XLR 3F
Weight approx.: 80 g
Diameter: 22 mm
Length: 107 mm
