One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

• One touch ease-of-use

• 2.4 GHz digital transmission for worldwide operation

• 75m range (250ft) in optimal conditions

• Up to 5 hours battery life on a single charge

• Switch between multiple transmitters linked to one receiver

• Configure any combination of transmitters and receivers

• Mute from either transmitter or receiver

• Dimensions XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm  XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm  XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

• THD, total harmonic distortion < 0.1 %

• Charging time typ. 3 h

• Audio output max. 12 dBu

• Operating temperature -10 °C to +55 °C (14 °F to 131 °F)

• Signal-to-noise ratio ≥ 106 dB

• Operating time up to 5 h

• Modulation GFSK with TDMA

• Battery Specification Li-Ion

• Capacity 850 mAh

• Codecs aptX® Live

• Frequency range 2,400 - 2,483.5MHz

• Max. Input voltage typ. 5.0 V

• Transmission power max. 10 mW

• Voltage 3.7 V

• Operating relative humidity 95 % (non-condensing)

• Latency < 4 ms

• Temperature Range 0 °C - 60 °C (32 °F - 140 °F)

• Audio frequency response 3.5 mm Jack/XLR: 80 - 18,000 Hz 6.3 mm Jack: 10 - 18,000 Hz

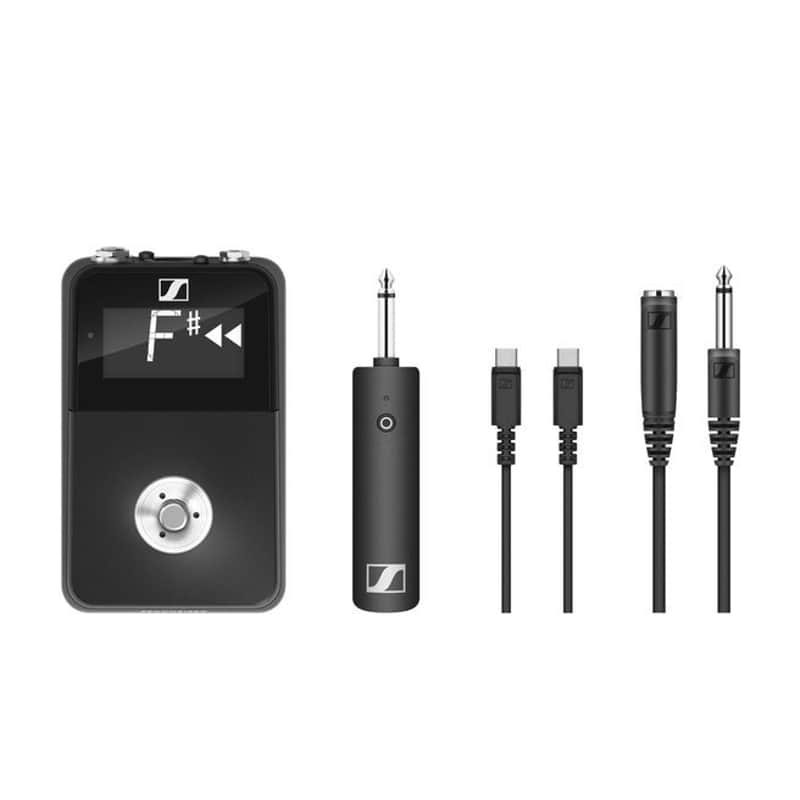

•  XSW-D 6.3mm (1/4”) transmitter
•  XSW-D Pedalboard receiver
•  Receiver power supply
•  Extension cable 6.3mm (1/4”)
•  Belt clip
•  USB-C to USB-C charging cable
