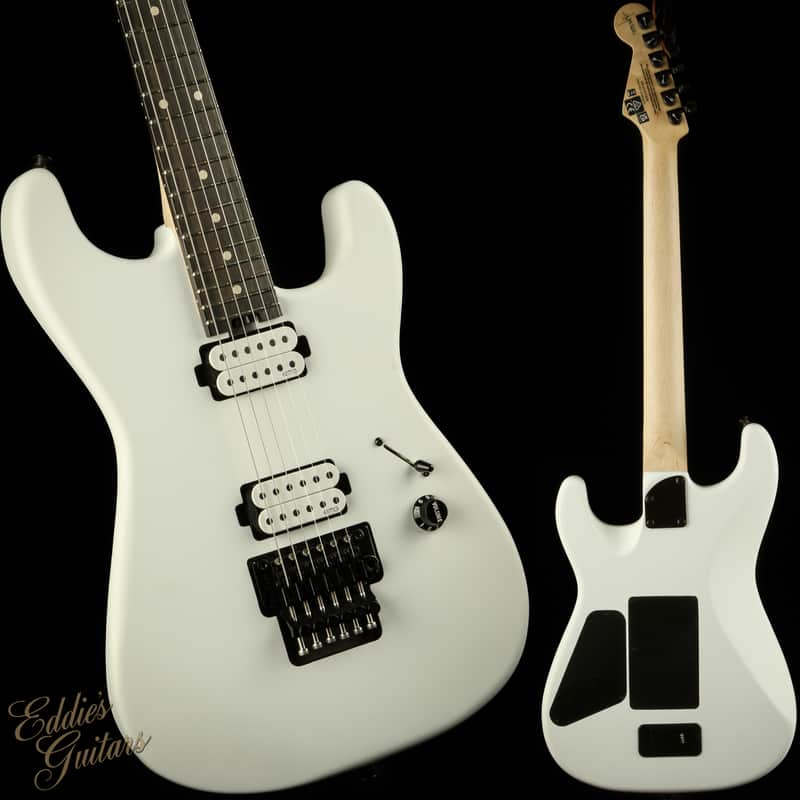

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR M begins with a mahogany body that has been sleekly contoured with a scalloped lower back bout for comfortable and unencumbered upper-fret access. The bolt-on maple neck is graphite-reinforced for rock-solid stability to withstand extreme climate changes, while the 12”-16” compound radius maple fingerboard with rolled edges and 22 jumbo frets allows for effortlessly fast playing and comfortable bends. A heel-mount truss rod adjustment wheel and Luminlay® side dots are game changers for touring musicians, allowing for pain-free neck relief tweaks on the fly and fingerboard guidance on even the darkest of metal stages.

A fearsome set of EMG® Jim Root Daemonum™ humbucking pickups combines the power of active pickups with the sensitive touch of passive pickups. Incredibly responsive and versatile, these pickups create a massive wall of crushing sound that cuts to the front of the mix. The streamlined controls consist of a three-way blade pickup switch and a skirted Strat®-style volume knob.

Dive bomb for days while maintaining tuning stability courtesy of the premium Floyd Rose® 1500 Series double-locking tremolo and Charvel locking tuners.

The Jim Root Signature Pro-Mod San Dimas® Style 1 HH FR M comes in a menacing Satin White finish with black hardware. A Charvel multi-fit hardshell gig bag is also included.

Other specifications included:

• Model Number 2965801876
• Series Artist Signature
• Color Satin White
• Number of Strings 6
• Orientation Right-Hand
• Bridge Pickup EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
• Neck Pickup EMG® Jim Root Signature Daemonum™ Open-Coil Active Humbucking
• Pickup Color White
• Controls Volume
• Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Special Electronics Active Electronics
• Pickup Configuration HH
• Body Finish Satin
• Body Shape San Dimas® Style 1
• Body Material Mahogany

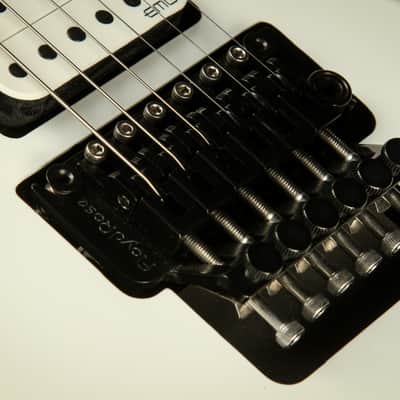

• Bridge Floyd Rose® 1500 Series Double-Locking Tremolo
• Hardware Finish Black
• Tremolo Arm Floyd Rose® 1500 Series Locking
• Tuning Machines Charvel®-Branded Die-Cast Locking
• Pickguard None
• Control Knobs Strat®-Style Skirt
• Switch Tip Black
• Saddle Height Wrench N/A
• Neck Material Maple
• Neck Construction Bolt-On with Graphite Reinforcement
• Neck Finish Hand-Rubbed Satin Urethane
• Neck Shape Speed Neck with Rolled Fingerboard Edges
• Neck Binding None - Rolled Fingerboard Edges
• Scale Length 25.5" (64.77 cm)
• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material Ebony

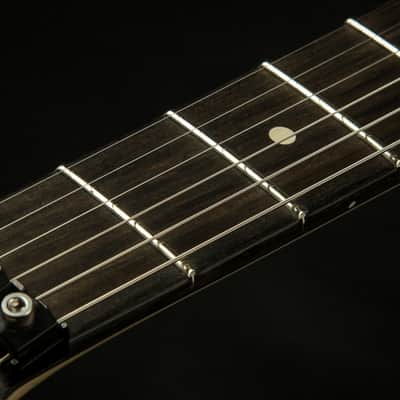

• Number of Frets 22
• Fret Size Jumbo

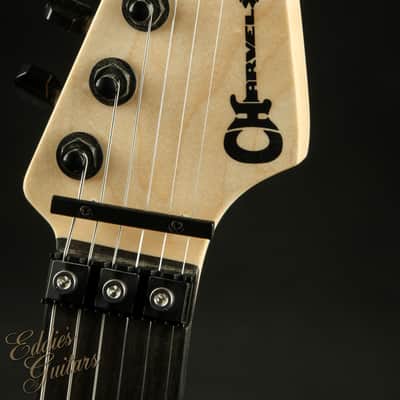

• Nut Material Floyd Rose® 1500 Series Locking
• Nut Width 1.6875" (42.86 mm)

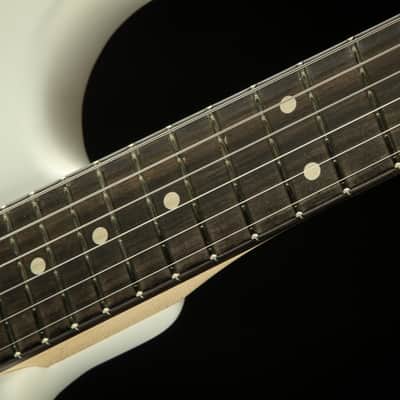

• Position Inlays Black Dot
• Side Dots Luminlay®
• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
• String Trees Floyd Rose® Retainer Bar
• Headstock Licensed Fender® Stratocaster®

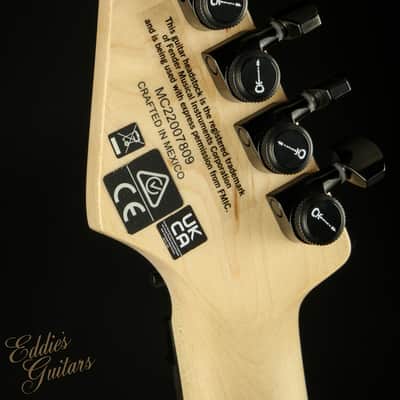

• Neck Plate 4-Bolt Serialized
• Strings Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons Standard
• Other Features Luminlay® Side Dots
• Charvel multi-fit hardshell gig bag
• 8 lbs 3 oz
• #MC22007809

For more information on this Charvel instrument, please contact us.
