Funktion One Res 4D Downfills (No Tops Included)
Predicted to Sell Soon
Only 1 available and 1 other person has this in their cart
Our users rate Reverb

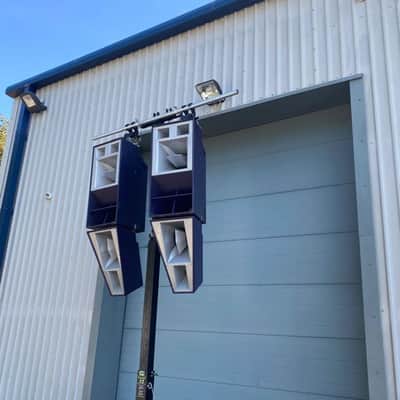

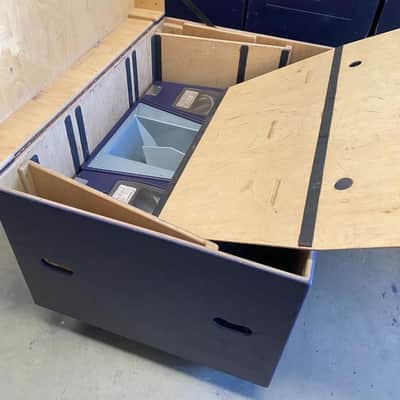

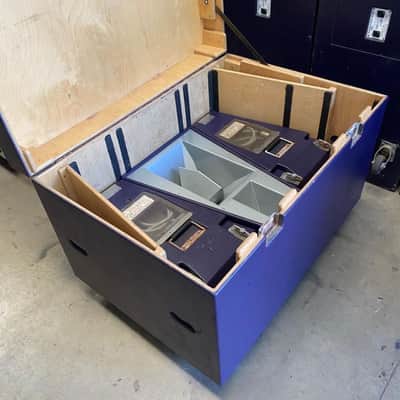

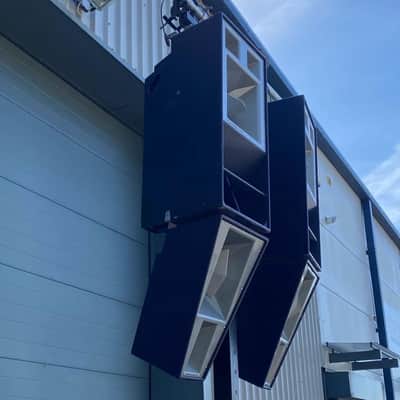

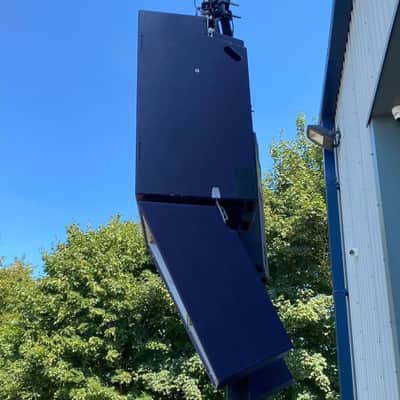

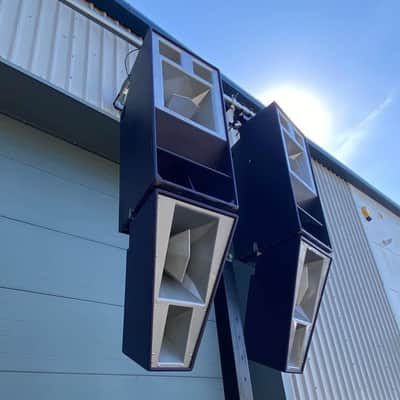

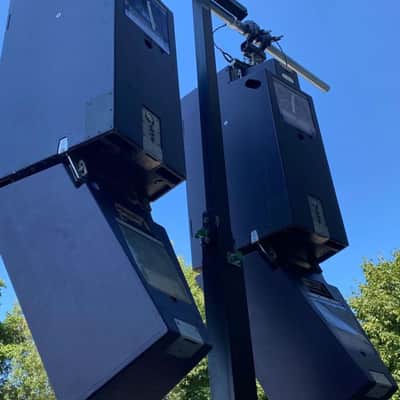

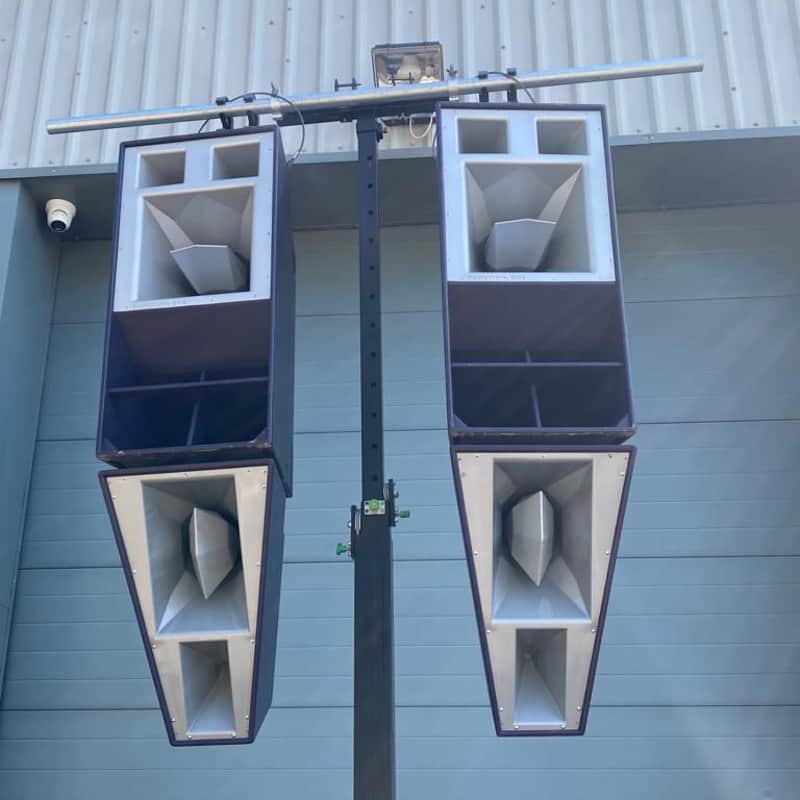

We have 4 Funktion One Res 4D Downfills with 2 Official Flightcases. Price listed is for all 4. They are ex hire units in excellent good condition all around.
Please note that no Funktion One Top are included in this price and listing, ONLY the Res 4 Downfills with flight cases.
Contact us with your country and city for a shipping estimate.
- All serial numbered
Features:
- Unique shape for close arraying
- Large vertical coverage
- Two-way active
- Horn loaded for high efficiency
- Funktion One designed Neodymium drivers
- Built-in flying hardware
- Optional scrim for discrete appearance
Overview:
The Resolution 4D Downfill enclosure is designed to complete Resolution 5 flown arrays. It offers extensive vertical dispersion providing coverage right down to the first row of seats. Its unique tapered shape allows the rest of the cluster to be coupled closely together generating a coherent wave-front and adding a finishing touch to the spherical cluster's aesthetics. As with other Resolution Touring enclosures, all inter-cabinet flying hardware is included.
Driver
Operating
Band
Sensitivity
(1W at 1m)
Power
(AES)
Nominal
Impedance
8"
445Hz - 5k77Hz
108dB
200W
16Ω
1"5k55Hz - up109dB50W16Ω
Go to crossover settings
Frequency Response ± 3dB:445Hz - 18kHzWeight:20kg (44lbs)Nominal Dispersion:25° Horizontal x 50° VerticalConnectors:
EP6 panel and captive lead
in cable recess
