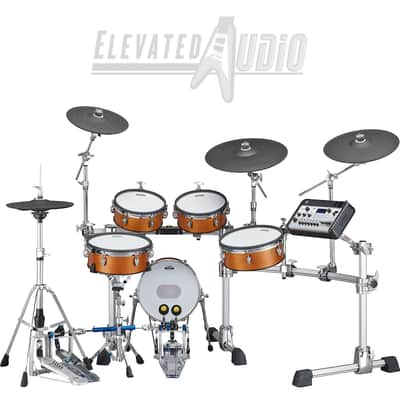

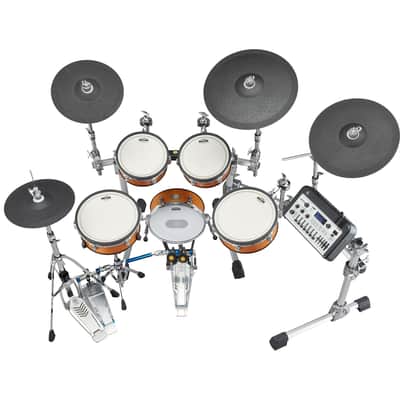

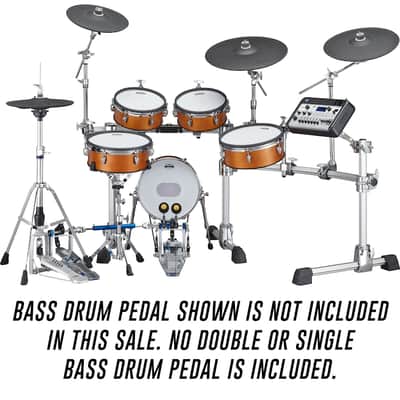

We are Authorized Yamaha Dealers and are selling one Brand New DTX10K-M Electronic Drum Kit (with Mesh Heads) in Real Wood finish in sealed boxes that comes with the Full Manufacturer's Warranty ! Sale includes drums, cymbals and rack shown. Plus, hi hat stand and snare stand are also included. However, there is NO Bass Drum pedal (neither double nor single) INCLUDED. If you need those items, they can be purchased from us separately. There has never been a better time to own a set of these Electronic Drums than now !! We also sell all drum hardware, stands, thrones, triggers, etc... message us if you need to add anything else on to your purchase.  Buy Confidently from Elevated Audio, CA's #1 Yamaha Dealer !!

DTX10K-M flagship model that boasts the beauty of real drums, featuring the DTX-PROX Module.  The DTX10 Series is the flagship of the DTX lineup, combining the functionality of electronic drums with the sheer beauty of their acoustic counterparts. Featuring real drum sounds and real-room ambience recorded in world-renowned studios, playability that allows you to create sounds intuitively, inspiring feel and expressiveness and the true beauty of real birch shells with the same finishes used on acoustic drums, the DTX10 Series was born from the technology and sensibilities that Yamaha has cultivated over its many years of crafting drums.

DTX10K-M

Pad Sets

Snare

XP125SD-M (12-inch mesh pad with 2-zone)

Tom Pad

XP105T-M (10-inch mesh pad with 2-zone)

Floor Tom Pad

XP125T-M (12-inch mesh pad with 2-zone)

Kick Pad

KP128 (12--inch mesh pad with multi-layer cushion)

Hi-Hat Pad

RHH135 (13-inch pad with 2-zone)

Crash Cymbal 1

PCY135 (13-inch pad with 3-zone)

Crash Cymbal 2

PCY155 (15-inch pad with 3-zone)

Ride Cymbal

PCY175 (17-inch pad with 3-zone)

Hi-Hat Stand

HS740A

Snare Stand

SS662 (Snare Stand for 12")

Footprint (Average)

1,100 mm x 1,600 mm

Weight

42.1 kg

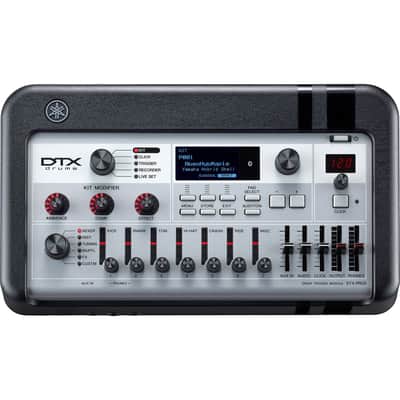

Tone Generator

Tone Generator

Dimensions

Width

342 mm (13-7/16 in)

Height

196 mm (7-11/16 in)

Depth

66 mm (2-5/8 in)

Weight

2 kg (4 lbs, 7 oz)

Maximum Polyphony

256 notes

Effects

For each Inst: EQ / Comp / Transient / Insertion (*1),

For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect,

For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.

Drum Kits

Preset: 70 Kits, User: 200 Kits

Voices

733

Click

Click Sets

30

Tempo

30 to 300 BPM, Tap Tempo supported

Time Signatures

1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16

Subdivisions

Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets

Others

Individual click volume control, WAV import, timer

Training

Types

10

Songs

Preset: 37 songs, User: 1 song

Audio Files

Import Limit

1,000 files

Maximum Loadable Sample Time

50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)

Sample Format

WAV

Recorder

Recording Time

Internal Memory

Maximum of 90 seconds

USB Flash Drive

Maximum of 90 minutes per file

Format

Record/playback: WAV (44.1 kHz, 16 bit, stereo)

Other

Connectors

DC IN

DC IN (+12V)

Headphones

Headphones (standard stereo phone jack ×1, stereo mini jack ×1)

AUX IN

AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)

Output

OUTPUT L/MONO, R (standard phone jack, one for each),

INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)

USB

USB TO DEVICE, USB TO HOST

MIDI

MIDI OUT ×1, MIDI IN ×1

Trigger Input

Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for all types of pads; 2, 4, 6 for 2-zone; 8, 9, 10 for 3-zone; 11 dedicated for hi-hat pad/controller; 12 for kick, 2-zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum of 14 pads can be connected (when Y-cable is used)

Display

Full Dot LCD (128×64 dot)

Accessories

AC adapter (PA-150 or an equivalent recommended by Yamaha)*,Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI download Information. *May not be included depending on your area. Check with your Yamaha dealer.

Superbly playable

Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums. Our electronic drums feature a sound module that captures and reproduces the full range of sound, from the initial attack to the final cutoff, all based on samples of authentic drums tuned by skilled engineers and drummers.

Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PROX, further allowing Yamaha to improve its expressive capabilities.

Our expertise as a manufacturer of musical hardware has allowed us to offer combinations of expertly-crafted modules and pads that deliver superb playability.

Live Set function instantly recalls settings

The DTX-PROX is equipped with a "Live Set" function that allows you to freely arrange and set various combinations of kits, tempos and audio files or backing tracks and recall them with a single touch, making it particularly useful for live venues or for live-streaming events. It also allows for various setups, including the WAV & Click Sync function that adds click settings to audio files and follows them for playback, adds a pre-count and stops the click after a pre-arranged time.

Connect to Bluetooth and record performances to USB memory

The Bluetooth function of DTX-PROX allows you to wirelessly connect to smart devices, portable music players and computers and have fun playing drums along with the audio. Furthermore, USB memory can be used to record audio from not only devices connected via Bluetooth, but also devices connected by AUX or USB cables. You can also record your own drum performances over the songs being played.

*Availability of Bluetooth audio varies by country

Professional-grade headphone amp

Yamaha understands it is incredibly important that drummers are able to hear themselves clearly, so the DTX-PROX module comes equipped with a high-precision, low-distortion, low noise and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, and it envelops the player in a realistic drumming sound stage.

Connections for every possible application

The DTX-PROX is equipped with 8 INDIVIDUAL OUTPUTS and a matrix that allows routing to any output. The two AUX IN sockets are ideal for receiving monitor sound from a PA system, connecting to other musical instruments (rear side) and connecting to smart devices (front side). The DTX-PROX is also equipped with standard jack and mini jack headphone outputs, allowing for highly-flexible routing, such as outputting clicks and AUX IN sounds only to the headphones.

The USB port can be directly connected to a computer or smart device to send and receive audio data and MIDI.

An extensive range of training functions to support drummers

The best practice functions featured in previous DTX models are also found in the DTX-PROX. Along with the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. Beginners and professionals alike will find the DTX10 training functions a useful aid for daily practice.

Includes Cubase AI

The DTX-PROX comes with a download code for the latest version of Cubase AI.

By connecting the DTX-PROX to your computer with a USB cable, all recording, editing and mixing necessary for modern music production can be done using this powerful software.
