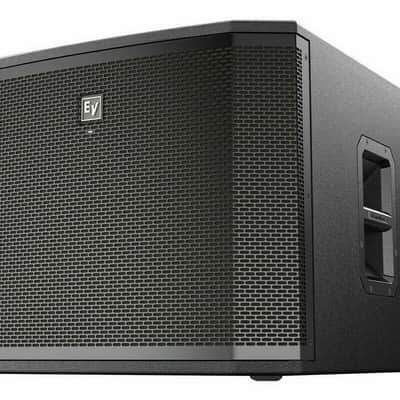

Electro-Voice ETX-15SP Active 15" Powered Sub-Woofer 1800W Amplified DSP

ETX-15SP

15" powered subwoofer

• 15-inch DVX woofer for maximum punch

• 1800 W Class-D power amplifier with integrated FIR-Drive DSP

• 134 dB peak SPL

• Special DSP preset for true cardioid performance across the full operating bandwidth

• Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models

• Removable casters

Specifications

Frequency Response (-3 dB)

• 37 Hz - 150 Hz¹

Frequency Range (-10 dB)

• 32 Hz - 180 Hz¹

Maximum SPL

• 134 dB peak²

Power Rating

• 1800 W

LF Transducer

• DVX3159A 380 mm (15 in)

Low Pass Frequency

• Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

Connectors

• (2) XLR/TRS Combo Jack and (2) XLR link Output

Enclosure

• 18 mm, 13-ply birch plywood with EVCoat

Grille

• 16AWG steel with powdercoat

Dimensions (H x W x D)

• 471 mm x 576 mm x 825 mm (19 in x 23 in x 32 in)

Dimensions (H x W x D)

• without casters ,471 mm x 576 mm x 692 mm (19 in x 23 in x 27 in)

Net Weight

• 41.7 kg (91.9 lb)

Shipping Weight

• 46.8 kg (103.2 lb)

Power Consumption

• 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³


¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
