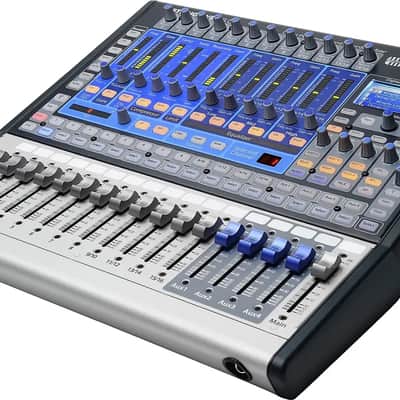

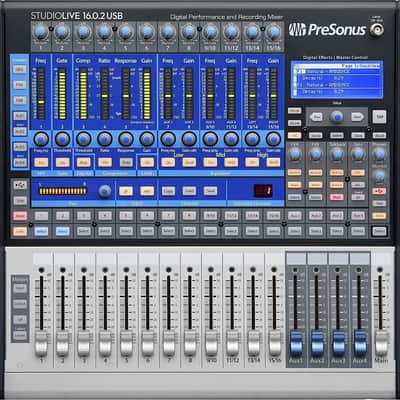

The PreSonus StudioLive 16.0.2 USB Performance & Recording Digital Mixer is a compact yet powerful digital mixer with an 18 x 16 USB interface for direct recording with Mac- or Windows-based DAW software. Its compact frame features 16 inputs—including 8 mono mic/line balanced inputs and 4 stereo line input channels—all fitted with 60mm precision faders. All mono input channels feature PreSonus' high-headroom, Class-A XMAX mic preamplifiers for maximum gain, a low noise floor, and detailed audio quality.The StudioLive 16.0.2 USB delivers the gamut of DSP processing including gate, compression, channel EQ, 31-band graphic EQ, and two stereo 32-bit digital effects processors with customizable reverb and delay presets. There are 2 dedicated effects buses and 4 auxiliary buses (pre- and post-fader assignable) for flexible signal routing. The mixer's flexible remote-control features and its compact design allow for a variety of portable applications.The StudioLive 16.0.2 USB is bundled with PreSonus Studio One Artist recording software, Capture, UC Surface, and QMix software. UC Surface enables full-duplex remote control with an iPad, iPhone, or laptop, making it an ideal solution for use on stage, in live sound reinforcement applications and remote recording, and more. The Studio Magic Plug-in Suite is also included, which adds a wealth of fresh sound and effects to Studio One. The StudioLive 16.0.2 ships with a power cord and a USB cable.

Product Features

• 8 Mono and 4 Stereo Channel Inputs with 60mm Faders (12 faders)
• 4 Auxiliary Buses (pre/post-fader send) and 2 Internal FX Buses
• On All Channels and Buses: 3-Band Semi-Parametric EQ, Compressor, Limiter, Downward Expander
• Stereo, 31-Band Graphic EQ on the Main Bus
• 16-In/16-Out FireWire Recording Interface (24-bit/44.1 kHz and 48 kHz)
• MIDI I/O: Control Main and Effects Output Levels, Recall Effects Presets and Scenes, and Serve as a MIDI Interface
• Includes Studio One Artist DAW Software
• Packaged with the Complete Studio Magic Plug-In Suite

Attributes

• Color: Grey

Technical Specifications

• Features: Wireless, USB, Power Supply Included
• # of Channels: 16
• Dimensions: 5.15" H x 15.75" D x 16" W
• Weight: 20lbs
• EQ: 3-Band EQ

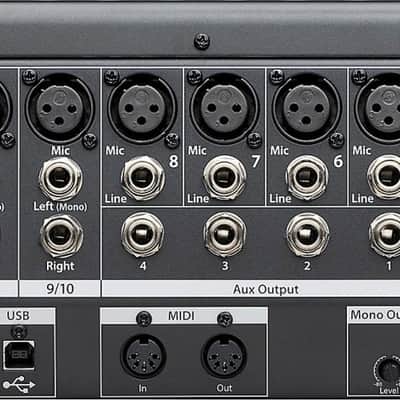

• Inputs: 12 x XLR, 8 x 1/4", 8 x 1/4" (4 x stereo channels), 2 x Stereo RCA pair
• Outputs: 2 x XLR (L/R), 1 x XLR (Mono), 2 x 1/4" TRS (L/R), 2 x 1/4" TRS (monitor), 1 x 1/4" (TRS) Headphones
• USB: 1 x USB-B
• Power Supply: 90 to 240 VAC, 50 / 60 Hz
• # of Mic Inputs: 12
• Busses/Groups: 4 x Aux, 2 x FX buses
• Computer Connectivity: USB
• Faders: 12 x 60mm
• A/D Resolution: 24-bit/48kHz
• Screen: 7" Touchscreen
