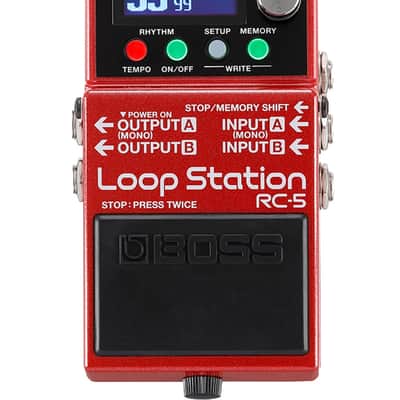

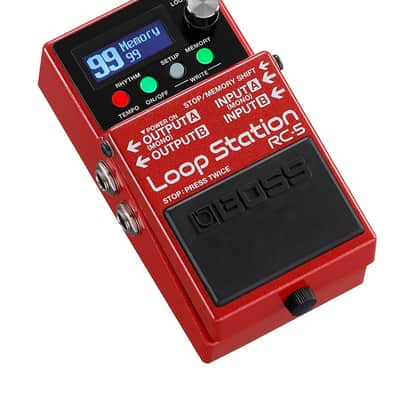

Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.

• Advanced BOSS looping features in a compact footprint
• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Stereo looper engine with 13 hours of recording time
• LCD with multi-color backlight for viewing loop status and editing parameters
• Reverse function for infusing loops with interesting textures
• Seven different drum kits and 57 preset rhythms with A/B variations
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Onboard storage for 99 phrase memories
• Back up and load WAV loops via USB


SPECIFICATIONS:
Sampling Frequency: 44.1 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Recording/Playback: Number of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) Rhythm Type: 57 Patterns x 2 Variations
Rhythm Kit: 7 types
Effect: Reverb (only for rhythm part)
Memory: 99
Nominal Input Level: INPUT A/MONO, B: -20 dBu
Input Impedance: INPUT A/MONO, B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, B:-20 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass

Controls: MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch

Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)

Connectors:
INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack

Power Supply:
Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)

Current Draw: 170 mA
Expected battery life under continuous use: Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.

INCLUDED ACCESSORIES:
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35

SIZE AND WEIGHT:
Width73 mm, 2-7/8 inches
Depth129 mm, 5-1/8 inches
Height56 mm, 2-1/4 inches
Weight (including battery)450 g, 1 lb
