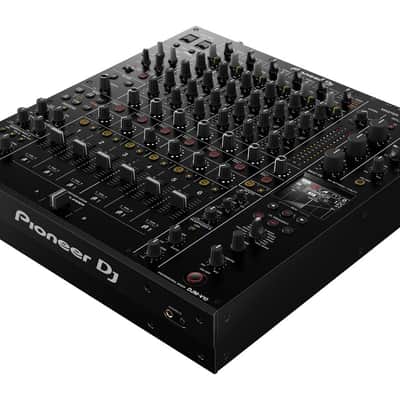

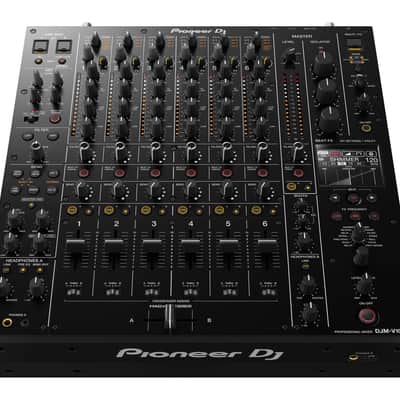

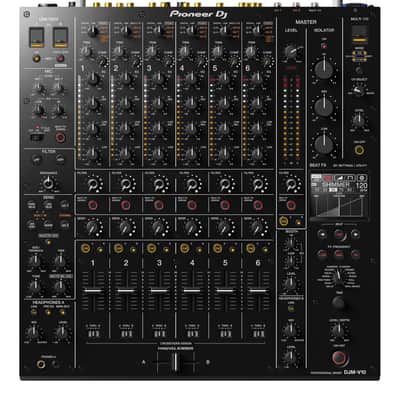

Pioneer DJM-V10 6-channel club mixer enabling DJs to craft new soundscapes from multiple audio sources

Craft your sound

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.

This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.

Key features

• Elite sound qualityFeel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to  produce a full low-end, vibrant mids, and precise highs.
• 6 channels with a wide range of inputsYou’re free to create your perfect setup with 6 channels and a host of different input types.
• 4-BAND EQ and compressorTake full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
• Effects for more creative expressionThe expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
• 3-band master isolatorEffortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
• Dual headphones output and booth EQThe DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

• Lockable power cableA lockable power cord is included for added reliability and to avoid accidental disconnections.
  *In selected regions, a non-lockable power cable is supplied instead.
• DJM-REC compatibleRecord and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions. Find out more.
• rekordboxMake full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching. Find out more.
• Serato DVS-readyUse Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately – Serato DJ Pro compatibility is coming soon).
• TRAKTOR DVS-readyEnjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.
• ShowKontrolThe DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

Main FeaturesMIDI Control

• Full assignable MIDI controls

ProDJ Link

• Yes

Booth EQ

• Yes

P-LOCK Fader Caps

• Yes

Auto Standby

• Yes

DVS Control

• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3

What's in the box

• DJM-V10
• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use

SpecificationsWidth

• 437.6 mm

Height

• 107.9 mm

Depth

• 467 mm

Weight

• 11.9 kg

Frequency Range

• 20 - 40000 Hz

Sampling Rate

• 96 kHz

A/D Converter

• 32 bit

D/A Converter

• 32 bit

S/N Ratio Line

• 105 dB

S/N Ratio Phono

• 88 dB

S/N Ratio Mic

• 79 dB

Distortion

• < 0.005 % (LINE)

ChannelsEQ

• 4 band

EQ Range

• [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB

COMP

• Yes

Performance ControlChannels

• 6

Filter

• HPF
• LPF

SEND

• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4-inch TS jack)

MULTI I/O

• 1/4-inch jack
• USB (Type A)

Beat FX

• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake

FX Frequency

• Yes

X-PAD

• Yes

rekordbox Quantize

• Yes

Master Isolator

• Yes

CrossfaderCrossfader Type

• Magvel Fader

CURVE Assignable

• Yes

Fader Curve

• 3

MicMic Connection

• XLR / 1/4-inch Jack Combo
• 1/4-inch TRS Jack

Talkover

• 3 Position Switch

Talkover Attenuator

• Yes

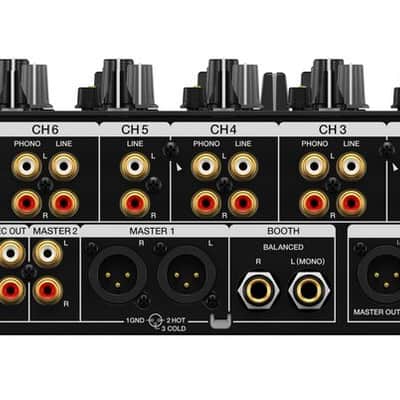

TerminalsInputs

• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)

Send/Return

• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)

LAN

• 1

USB

• 2 USB B ports
• 1 USB A port

Outputs

• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)
