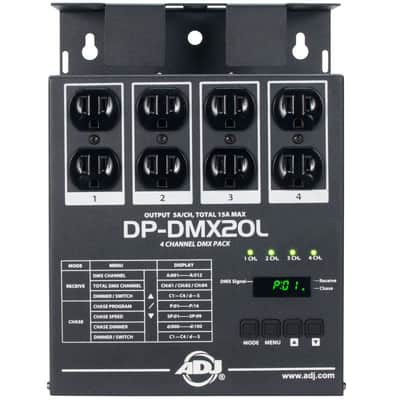

ADJ's DP-DMX20L is a 4 channel universal, portable DMX dimmer/switch pack. That has a selectable 1,2 or 4 channel operation. With dual 3-prong Edison sockets per channel, allowing you to hook up two devices per channel. Also the DP-DMX20L has 4 LED's display for channel activity.

There are dual Edison sockets supplied so more than one effect can be connected to each channel. There are 16 built in chase sequences, with speed and intensity control, available for your convenience. This device also has four external channel fuses which allows for quick and easy serviceability while out on the road.

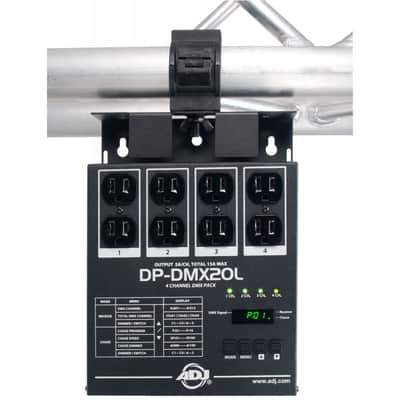

Another feature we included was the sleek reversible mounting panel on the rear to make it easier to install. Also for your safety we have a zero crossing circuitry for protection of the transformer loads when switching.

Features

• 4-channel DMX dimmer
• Switchable to one, 2, or 4 channels
• LED display lets you change DMX settings easily
• Zero-crossing circuitry
• Two 3-prong sockets per channel

Specifications:

- Type: DMX Dimmer/Switch
- Connectivity: 2 x 3-pin XLR (DMX in/out), 8 x Standard IEC
- DMX Modes: 1, 2, 4 channels
- Power Source: Fixed Power Cable
- Height: 10.25"
- Width: 8.25" Depth: 3"
- Weight: 6 lbs.
