CT475  CROWN

 4 Channel Install Power Amp

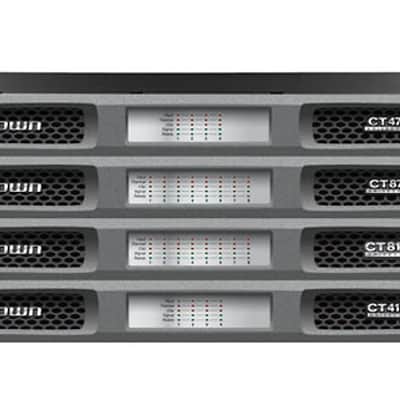

The CT475, part of the ComTech DriveCore series from Crown Audio, is a 4-channel power amplifier that offers professional audio quality in a slim design. The amplifier has a 1RU chassis, allowing you to install it in any standard equipment rack. It provides 75W per channel into 8 ohms for strong, clear audio with low distortion. DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio. It does not require a cooling fan, providing silent operation.

The amplifier offers flexible input routing, allowing you to send an input signal to any of the 4 outputs. Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation. A universal power supply lets you use the amplifier internationally, ideal for touring applications.

Features:

• Slim 1RU chassis can be installed in any standard equipment rack

• Delivers 75W per channel into 8 ohms for strong, clear audio with low distortion

• DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio

• No cooling fan required, providing silent operation

• Flexible input routing allows you to send an input signal to any of the 4 outputs

• Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation

• A universal power supply lets you use the amplifier internationally, ideal for touring applications

Specifications:

• Channels: 4

• Sensitivity: 1.4V

• Rated Power Outlput: 75W per CH @ 4 Ohms, 75W per Ch @ 8 Ohms

• Signal to Noise Ratio: 110dB

• Total Harmonic Distortion (Full Rated Power, 20Hz-20kHz): <0.05%

• Intermodulation Distortion (From 0dB down to -30dB): <0.05%

• Frequency Response (At 1W into 4/8 Ohms): ± 0.5dB

• Crosstalk (Below Rated Power 20Hz to 1kHz): >70dB

• Common Mode Rejection (20Hz to 1kHz) >55dB, Typically >70dB

• Voltage Gain: 25dB

• DC Offset: ± 20mV

• Idle Power Consumption (Standard Mode): 15.0W

• Dimension (HxWxD) 1.75" x 19" x 15.19"

• Weight: 10 lbs (4.54kg)
