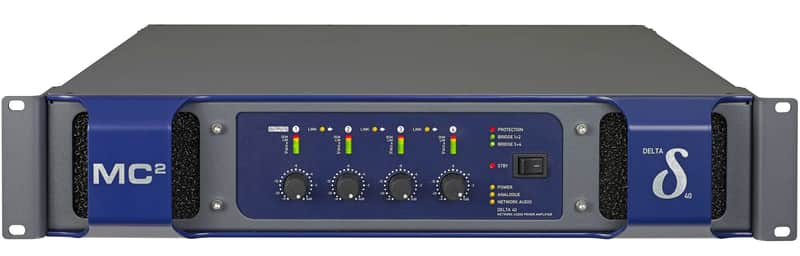

MC2 Audio Delta 40 DSP 4 Channel Amplifier

The new Mc2 Audio Delta 40 DSP 4 Channel Amplifier

Combining new technology power amplification with the highest definition XTA DSP, the Delta Series offers performance and convenience at a whole new level.

Powerful processing features, such as FIR filtering and Dante networking, work alongside unique enhancements including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing.

Configure and tune using a fast, powerful combination of AudioCore (XTA’s fast efficient control software platform) and DeltaDirect, the bespoke iPad app. Every aspect of a network of amplifiers can be controlled and monitored, wirelessly. USB, direct Ethernet and RS485 control options plus configurable GPIO offer unparalleled flexibility.

All MC² Audio products are covered by a 5 year warranty.

Number of channels4Output Power: (per channel)8 ohms500W4 ohms1000W2.7 ohms1400W2 ohms1200WOutput Power: (bridged)8 ohms2000W4 ohms2400WTHD%: (@1dB below max output)@ 1kHz< 0.08%20Hz to 20kHz< 0.1%Gain / Sensitivity:Gain32dBSensitivity (for max power)6.2dBuFrequency Response:20Hz to 20kHz
(+ 0/- 0.5dB)Power Consumption: (< 50W in standby)Nominal @ 240v into 4 ohms2.9ANominal @ 120v into 4 ohms6.0ADimensions: (2U) (mm)Amplifier88(h) x 482(w) x 428(d)Single Box (UK shipping)230 x 580 x 560Double Box (outside UK)250 x 610 x 600Weight:Amplifier10.0kgBoxed (shipping weight)12.0kg
