Yamaha STAGEPAS 400BT Portable PA System

Austin Bazaar is an authorized Yamaha dealer.

Ultimate portability: Compact and light enough to carry by hand

Fast and easy set-up: STAGEPAS 400BT can be setup and ready to perform in a matter of seconds

A PA for any occasion: Cover a wide range of environments and applications

Bluetooth connectivity: Allows wireless streaming from smartphones and tablets

Stereo operation: Provides remarkable fidelity and audience coverage

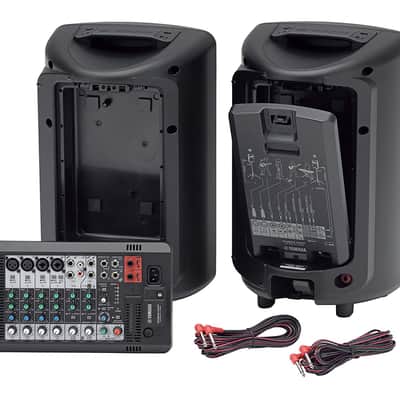

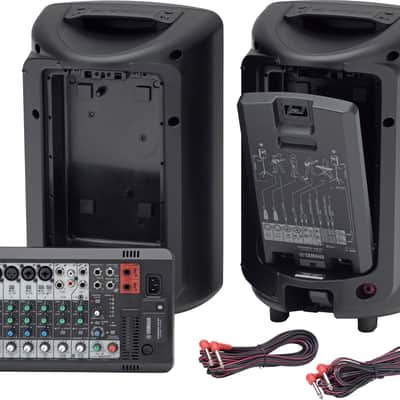

Compact and light enough to carry by hand, STAGEPAS 400BT is an all in one PA system that you can take literally anywhere. The two lightweight speakers and a detachable mixer, along with a pair of speaker cables and a power cord combine into a high performance, compact package that provides remarkable portability. With its intuitive, simple design STAGEPAS 400BT can be set up and ready to go in seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute. Flexible enough to be used in a truly impressive range of environmonments and applications, STAGEPAS 400BT can be set up in a variety of PA and monitoring configurations.

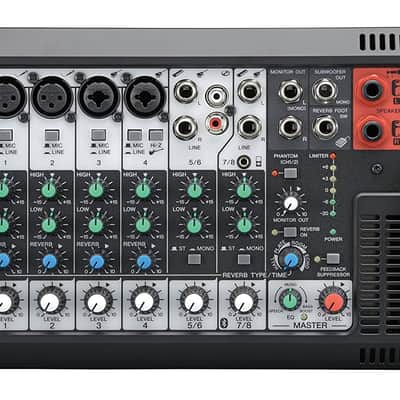

Type: Powered mixer with 2 passive speakers
Mixing channels: 8
Input channel functions: Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8
Output channel functions: Feedback suppressor, 1-Knob Master EQ;
I/O Inputs: 4 mono mic / line + 4 mono / 2 stereo line
I/O Phantom power: +30V (CH1, 2)
I/O Outputs: SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
I/O Bluetooth: Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
I/O Control and others: Reverb foot switch
Input Channel Function Hi-Z: CH4
Input Channel Function EQ HIGH: HIGH Shelving: 8 kHz
Input Channel Function EQ LOW: LOW Shelving: 100 Hz
On-board processors DSP: SPX digital reverb (4 program, parameter control)
On-board amplifiers - Maximum output power @4ohms: 400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)
Speaker type: Two-way bass-relfex speakers
Frequency range (-10dB): 55 Hz - 20 kHz
Nominal coverage H: 90 degrees
Nominal coverage V: 60 degrees
Floor Monitor Angle: 50 degrees
Components LF: 8" (20 cm) cone
Components HF: 1" (2.54 cm) voice coil compression driver
Maximum output level (1m; on axis): 125 dB SPL / speaker
Power requirements: 100 V - 240 V 50 Hz/60 Hz
Power consumption: 30 W (Idle), 70 W (1/8 Power)
Pole socket: 34.8-35.2 mm pole socket with StageLok;
Accessories: Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options: Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others: Handle: 1 x Top
Dimensions (W x H x D): Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm
Weight: 18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)

SKU: YAM-STAGEPAS-400BT
