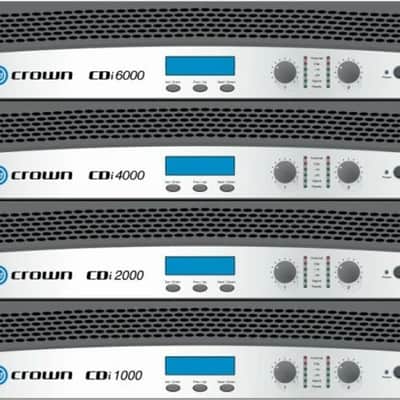

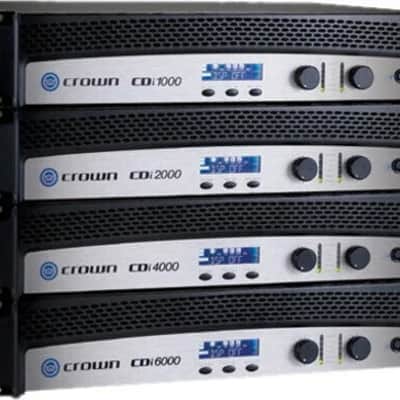

Crown CDi Series amplifiers are professional tools designed and built for installed sound applications. All models are rugged and lightweight, and offer unmatched value in their class.

Frequency Response: 20Hz - 20kHz (@ 1W into 4 Ohms)

Sensitivity: 1.4V @ 8 Ohms

Signal to Noise Ratio: 100dB

Voltage Gain: 30.5dB (@ 1kHz, 8 Ohm Rate Output)

Load Impedance: Rated for 2-8 Ohms in Stereo Mode
Rated for 4-16 Ohms in Bridge-Mono Mode

Input Impedance: 20 kOhms (Nominal)

Output Power: 700W @ 2 Ohm Dual (Per Channel)
500W @ 4 Ohm Dual (Per Channel)
275W @ 8 Ohm Dual (Per Channel)
1400W @ 4 Ohm Bridge-Mono
500W @ 70V Dual (Per Channel)
1000W @ 140V Bridge-Mono

Damping Factor: Better than 500 from 20 to 400Hz

Crosstalk: >70dB Below Rated Power, 20Hz to 1kHz

Max Input Signal: +22dBu Typical

Inputs: 2 x 3-Pin Removable Phoenix-Type

Outputs: 4-Position Barrier Strip with Connectors for Dual Loudspeakers or Bridge-Mono Loudspeaker

Power: 100V, 120V-240V, 50/60 Hz

Dimensions (WxHxD): 19 x 3.5 x 12.25" (483 x 89 x 311mm)

Weight: 19 lb (8.6 kg)

Features:

Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs
Switch-mode universal power supply
Intuitive front-panel LCD screen for quick, easy configuration
Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
Up to 20 user defined DSP presets are available
