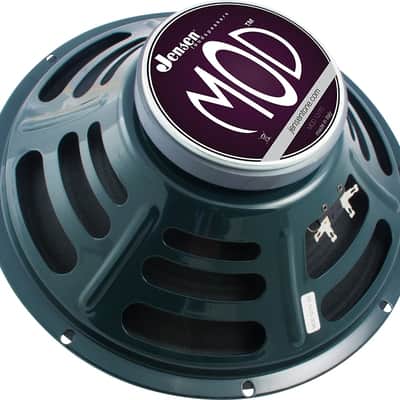

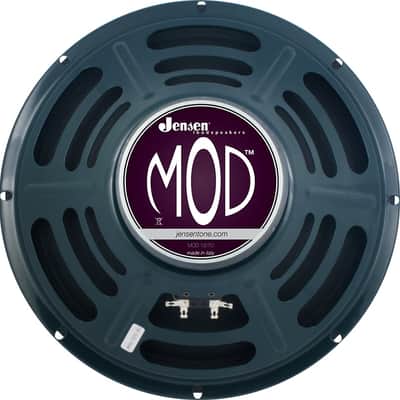

Speaker - Jensen® MOD®, 12", MOD12-70, 70W, Impedance: 8 Ω
This seller has not set a shipping cost for Canada. Please contact them to ask about shipping.
30-Day Return Policy
Enjoy peace of mind with your new gear
The Mod 12-70 is a 12" ferrite speaker with 70 watts of power. The MOD12-70 is loud, dynamic, and well defined. It has a defined warm crunch response to overdrive distortion.
The MOD® Speakers lineup is a collaborative effort with MOD® Electronics that provides musicians with a classic sounding speaker voicing that doesn't shy away from new technologies and modern advancements. Unbound from the restraints of producing an authentic reissue, Jensen® and MOD® have developed a new series of speakers that carefully blends the clarity of the vintage Americans with the forward, driving tone of their vintage British counterparts. The result is an extremely versatile sound that sits well in any mix, be it classic rock, blues, jazz, or contemporary genres.
Guitarist Description: Loud, dynamic, and well defined. Has a defined warm crunch response to overdrive distortion
Bassist Description: Straightforward, bottom-heavy punch
- Lows: Tight
- Mids: Subdued
- Highs: Bright
- Overdrive: Edgy
Product Measurements
Diameter: 12 in.
Voice Coil Diameter: 1.5 in.
Depth: 4.5669 in.
Outer Diameter: 12.0275 in.
Inner Diameter: 10.9055 in.
Mounting Hole Bolt Circle Diameter: 11.5551 in.
Magnet Assembly Diameter: 4.7637 in.
Magnet Assembly Depth: 1.0629 in.
Mounting Hole Diameter: 0.2559 in.
Nominal Overall Diameter: 306.00 mm
Nominal Voice Coil Diameter: 38.00 mm
Flux Density: 1.16 T
Magnet Type: Ferrite
Voice Coil Winding Type: Copper
Voice Coil Former: Epotex
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Voice Coil DC Resistance (Re): 5.00 Ω
Resonance Frequency (ƒS): 78.00 Hz
Mechanical Q Factor (QMS): 13.77
Total Q Factor (QTS): 0.89
Mechanical Moving Mass (MMS): 29.60 g
Mechanical Compliance (CMS): 141.00 µm/N
Force Factor (BxL): 8.28 Wb/m
Equivalent Acoustic Volume (VAS): 48.10 liters
Linear Displacement, maximum (XMAX): 1.50 mm
Reference Efficiency (nO): 2.09 %
Diaphragm Area (SD): 490.90 cm2
Losses Electrical Resistance (RES): 67.70 Ω
Voice Coil Inductance @ 1 kHZ (LE): 0.58 mH
Rated Power: 70.00 W
Musical Power: 140.00 W
Sensitivity @ 1W, 1m: 97.50 dB
