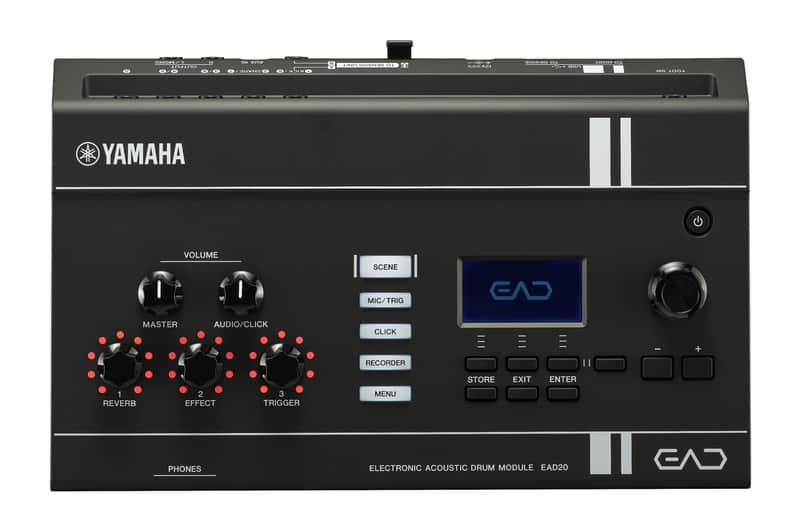

Yamaha EAD20 Electronic Acoustic Drum module

The EAD (Electronic Acoustic Drum module) is a unique Yamaha system that naturally captures the sound of an entire drum kit with a simple setup, creating a new drumming experience by blending acoustic sounds with effects and electronic elements.

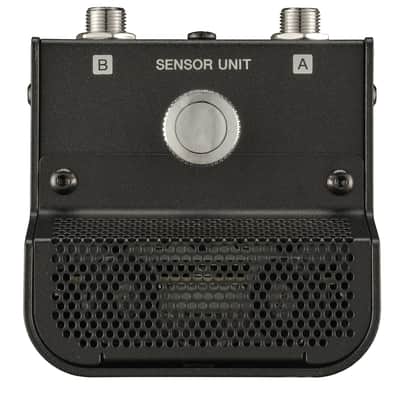

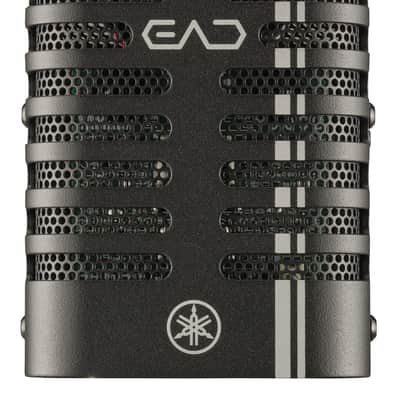

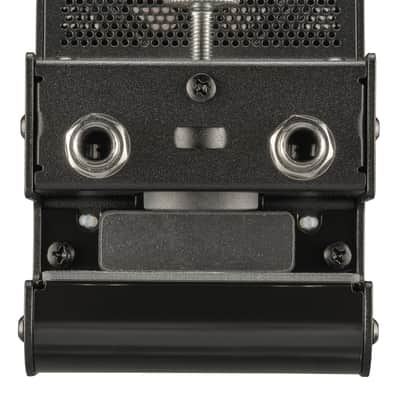

The EAD20 makes this concept more accessible than ever, featuring a newly developed sensor unit and a main unit equipped with the same cutting-edge sound chip found in high-end models. The hybrid sound—combining the authentic resonance of acoustic drums with effects and electronic tones—elevates performances across the board, from creating videos and recording to daily practice and online lessons.

● Module Dimensions

Size: 300 (W) x 70 (H) x 190 (D) mm

Weight: 1.4 kg

● Specifications

Presets: 50+

User Presets: 200

● Microphone

Mic EQ: 7

Mic Transient Compressor: 10

Mic Insertion Effect 1: 252

Mic Insertion Effect 2: 252

● Trigger

Tone Generation: AWM2

Max Polyphony: 256

Parts: 10

Voices: 2,203

Instrument EQ: 13

Instrument Transient Compressor: 21

Instrument Insertion Effect: 252

● Microphone/Trigger

Reverb: 137

FX1: 247

FX2: 247

Master FX: 252

Master Compressor: 33

Master EQ: 5-band

● Other

Click EQ: 1

Audio EQ: Recorder, Looper, Aux In, USB Audio

Phones EQ: 13 (4-band)

● User Samples

Mono: Approx. 50 min (44.1 kHz, 16-bit) / Stereo: Approx. 25 min (44.1 kHz, 16-bit)

● Functions

Mic Talk function, Gain Auto Setup, Crosstalk Auto Setup, Voice function

● Recorder

Recorder (playback x2), Looper, Sampling

● Connections

Trigger Input: Connectable pads / 9 (using Y-cables)

Footswitch: FOOT SW (standard stereo phone jack)

HH Controller, Expression, On/Off, Inc/Dec

Audio Input: Mic/Line Input (EAD20 sensor unit only)

Audio Output: Main Output / OUTPUT L/MONO, R (standard TS phone jacks, unbalanced)

Headphones: PHONES (1x standard stereo phone jack, 1x mini stereo phone jack)

USB TO HOST: Audio / 2-in/2-out, 24-bit, 44.1/48/96 kHz (synchronous); 8-in/10-out, 24-bit, 44.1 kHz (asynchronous)

USB TO DEVICE: MIDI / USB Trigger Link (USB MIDI host function)

External memory: Supports USB flash drives
