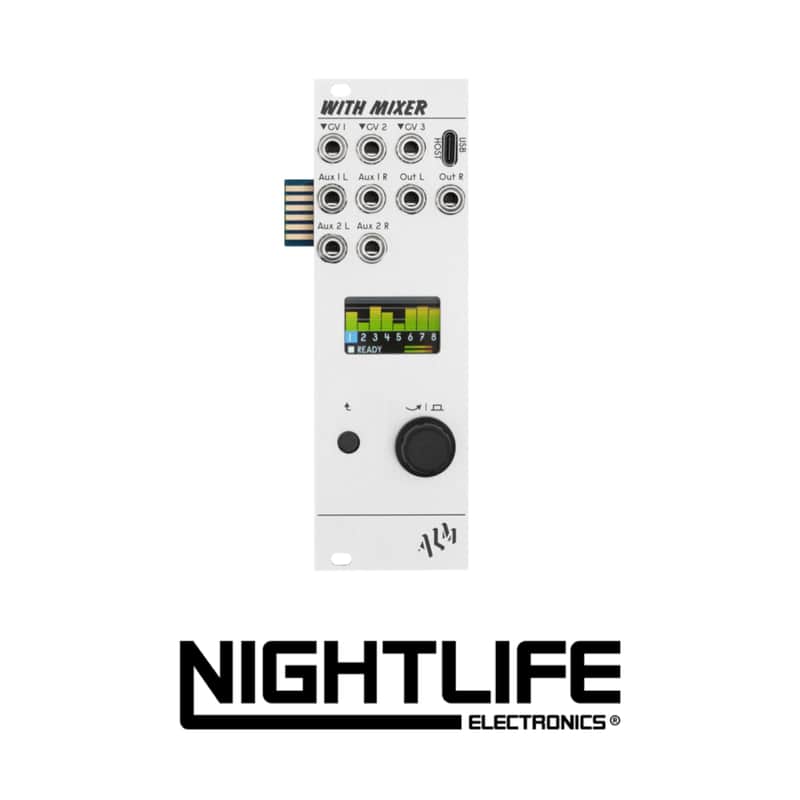

ALM Busy Circuits With Mixer - Stem Ripper Expander

The ’With Mixer’ is a companion expander for the ALM Stem Ripper, adding a full-featured 8- channel stereo mixer with per-channel level and gain control, stereo panning, dual stereo aux sends, and mute and solo controls.

An easy-to-use graphical interface provides visual monitoring of all eight input channels and the stereo mix output, along with precise control of all mix parameters. Mix parameters can also be controlled via CV or an external MIDI controller connected to the powered USB host port, providing hands-on control and making the With Mixer well suited to live performance. Complete mixer setups can be saved and recalled, while the display also shows the Stem Ripper’s recording status and elapsed time. The final stereo mix is available from the stereo output jacks and is simultaneously recorded to the Stem Ripper’s SD card alongside the individual, unprocessed input stems.

Together, the ’Stem Ripper With Mixer’ pair provides a modern multitrack stereo mixing and recording setup for your Eurorack system in just 16HP.

• Width: 8HP
• Depth: 32mm
• Power: 45mA @ +12V / 35mA @ -12V

Features:

• Enhances the Stem Ripper with 8-channel stereo mixing, aux sends, mix output, and recording.
• Full-colour, high-resolution, easy-to-use GUI
• USB Host MIDI controller support for more hands-on mixing
• Visual Stem Ripper status monitoring
• 3 assignable CV inputs, expandable to 7 with the AXON expander
• Save and recall up to 8 complete mixes
• All settings are retained across power cycles
• Skiff-friendly design with reverse-power protection
• 2-year warranty
• Made in England
