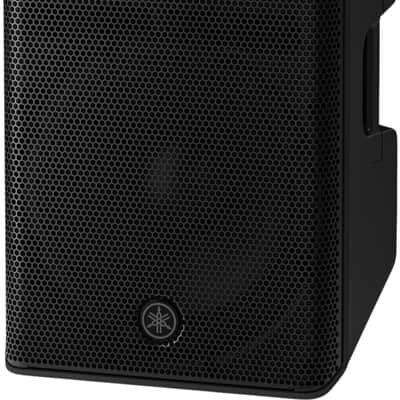

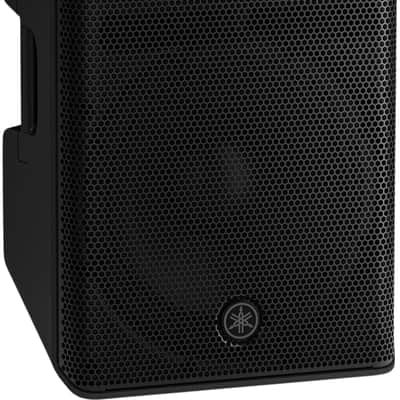

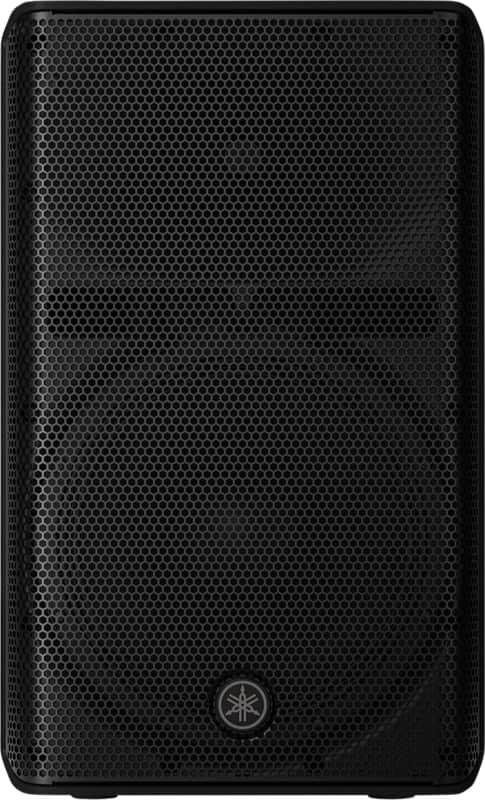

Yamaha DXR12 MK3 12" Powered Loudspeaker, 2000W

The DXR12 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers a perfect balance of portability and performance, delivering exceptional clarity, precision, and a powerful 134 dB SPL output. Ideal for front-of-house use, floor monitoring applications, or even as stage side fills—the DXR12 mk3 is an excellent choice for a wide range of sound reinforcement needs. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.

Product Features

• 12" LF + 1.75" HF proprietary high-durability speaker units
• The large-diameter horn secures directivity control across a wide frequency range
• Optimized port positioning reduces standing wave effects
• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
• Newly developed 2000W Class-D amplifier
• FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
• Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
• DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
• Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
• Compatible with audio streaming via Bluetooth
• Intelligent feedback suppressor automatically eliminates unpleasant feedback
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts

Attributes

• Total Power: 500W and Up

Technical Specifications

• Type: Loudspeaker
• # of Channels: 2
• Wattage: 2000W
• Dimensions: 23.6" H x 14.4" W x 13.8" D
• Weight: 38.4 lbs
• Inputs: 2 x 1/4" XLR combo
• Outputs: 2 x XLR
• Power Source: Standard AC IEC cable
• Frequency Response: 50 Hz - 20 kHz
• Driver Size: 60mm and Up
• Powered/Passive: Powered
