Yamaha EAD20

The Yamaha EAD20 transforms an acoustic drum kit into a complete hybrid system for practice, recording, streaming and live performance. Its new sensor attaches to the bass drum hoop and naturally captures the entire kit in stereo, without a complex multi-microphone setup.

Powered by the same advanced processing platform as the flagship EAD50, the EAD20 combines the acoustic drum sound with PCM sounds, studio-quality effects and recording functions. Automatic settings optimize microphone levels and trigger sensitivity simply by playing.

Key features

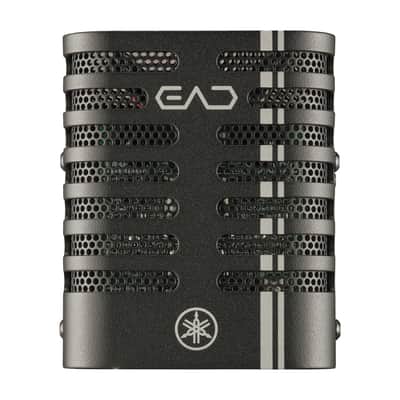

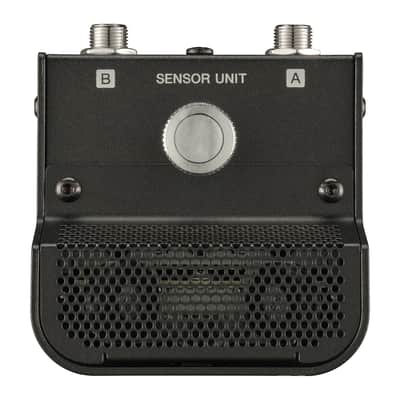

• Dedicated sensor with two matched condenser microphones in an XY stereo configuration and a built-in kick drum trigger
• Over 50 preset scenes and 200 user scenes
• 2 203 sounds, AWM2 sound generator and maximum 256-note polyphony
• Reverb, two effect blocks, master effect, master compressor and 5-band master EQ
• WAV and AIFF file import, up to 500 user voices
• Built-in recorder, looper and sampling
• 8-input / 10-output USB audio interface, 24-bit / 44,1 kHz
• Trigger inputs connect up to 9 pads using Y-cables
• USB-C for computer or mobile device, USB-A for USB flash drive and USB Trigger Link
• L/Mono and R main outputs, 6,35 mm and 3,5 mm headphone outputs, and stereo auxiliary input
• Compatible with the free Yamaha EAD Touch and Rec’n’Share apps

Dimensions and contents

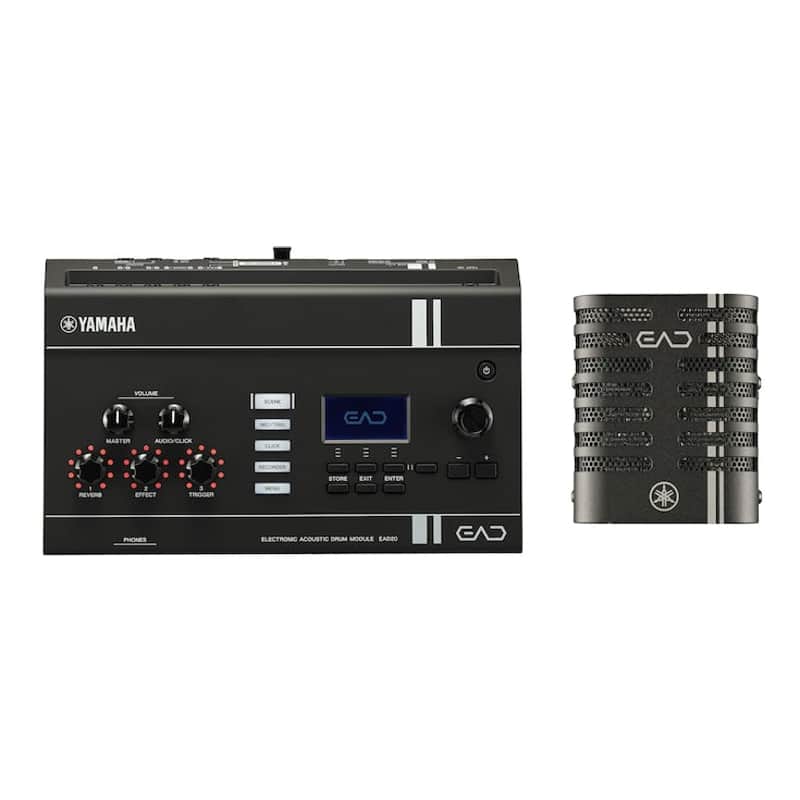

• Module : 300 × 190 × 70 mm; 1,4 kg
• Sensor: 75 × 78 × 88 mm; 450 g
• Includes: EAD20 sensor, PA-150 adapter, module holder, two wing bolts, connection cable, three cable ties and two adhesive pads
