Radial Stagebug SB-1 active 48v Phantom DI
This seller has not set a shipping cost for Bulgaria. Please contact them to ask about shipping.
The Radial StageBug SB-1 is an ultra-compact active direct box designed for acoustic guitars, passive basses, and other instruments with high-impedance outputs. Its active circuitry converts the instrument signal to a balanced, low-impedance output, making it suitable for long cable runs to a mixing console, PA system, or recording interface. It operates entirely from 48V phantom power, eliminating the need for batteries or an external power supply.
Condition:

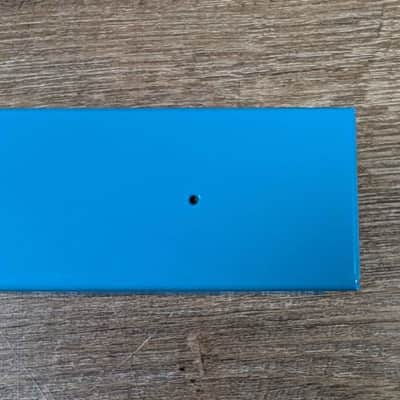

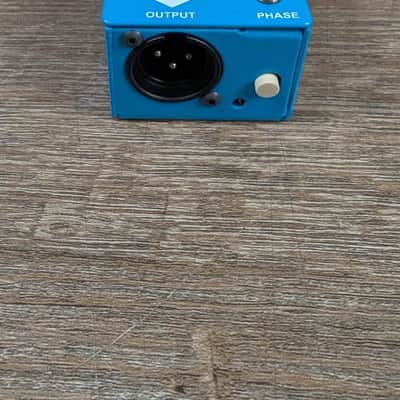

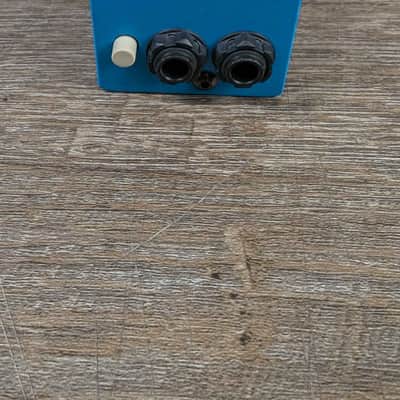

This DI is used and remains in very good overall condition. It shows light cosmetic wear consistent with normal use, including minor marks on the enclosure. The connectors, switches, and controls are clean and well kept. Please refer to the photos for a detailed look at the cosmetic condition
Features:
- Compact active direct box
- Optimized for acoustic guitar and passive bass
- 48V phantom powered
- 1/4" high-impedance instrument input
- Tuner/thru output for connecting a tuner or stage amplifier
- Balanced XLR output
- Input pad for higher-output instruments
- 180° polarity reverse
- Ground lift
- Rugged 16-gauge steel construction
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: >100 dB
Total Harmonic Distortion: <0.006%
Input Impedance: 800 kΩ / 23 kΩ
Output Impedance: 330 ohms
Equivalent Input Noise: -101 dBu
Noise Floor: -97 dBu
Input: 1/4"
Tuner/Thru Output: 1/4"
Balanced Output: XLR
Controls: Input Pad, 180° Polarity Reverse, Ground Lift
Power: 48V Phantom Power, 5 mA
Construction: 16-gauge steel chassis and outer shell
Dimensions: 4.5" × 1.85" × 1.35" (114 × 47 × 34 mm)
Weight: 0.55 lb (250 g)
