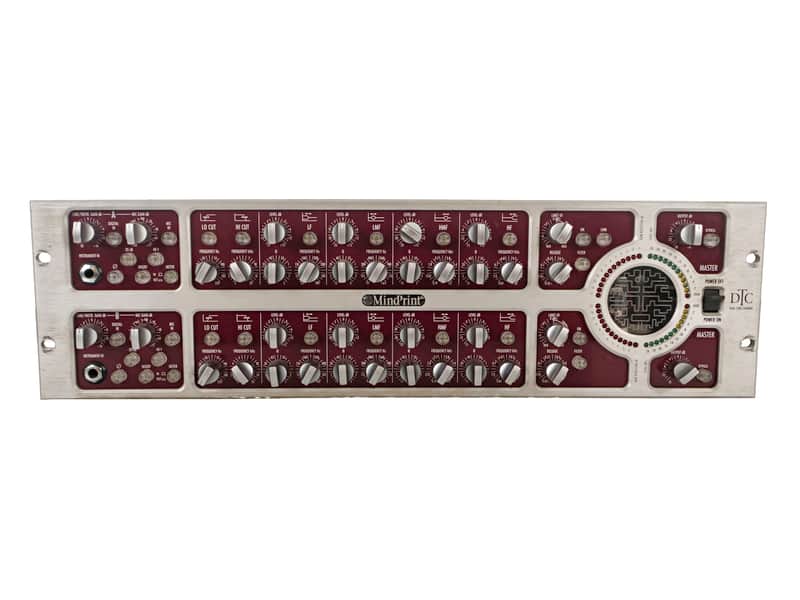

MindPrint DTC Dual Tube Channel Strip

Short Description:

High end tube channel strip. In Used, Very Good condition

What We Think:

The Mindprint DTC (Dual Tube Channel) is a powerhouse, high-end 2U recording strip that delivers serious German-engineered audio performance. Designed to handle everything from tracking high-resolution lead vocals to processing complex stereo mix buses, the DTC combines ultra-clean discrete Class-A solid-state preamps with variable high-voltage tube saturation. It gives you the best of both worlds: pristine clarity when you need it, and rich harmonic warmth when you want to thicken up your tracks.

Beyond its transparent preamps, the real star of the show is the DTC's signal shaping chain. The 4-band, passive-style parametric EQ is exceptionally sweet and musical, allowing for aggressive boosts or surgical cuts without ever sounding harsh or phase-smears. Paired with a fast, highly flexible VCA compressor, this dual-channel unit acts as a complete analog frontend and a secret-weapon mastering tool for stem bus processing.

This unit sustained some cosmetic damage to one knob during shipping. The knob and all other functions of the unit are completely operational.

Manufacturer Description:

The Mindprint DTC (Dual Tube Channel) is a flagship, high-end two-channel voice strip and mastering-grade signal processor designed for uncompromising analogue recording, tracking, and mixing applications. Developed in Germany, the DTC combines ultra-low-noise solid-state circuitry with high-voltage vacuum tube saturation to deliver maximum transparency, vast dynamic headroom, and musical vintage warmth in a single 2U rackmount unit.

Each independent channel of the DTC features a discrete Class-A microphone preamplifier built with hand-selected components, providing clean gain with exceptional transient accuracy and exceptionally low distortion. For dynamic shaping, the DTC integrates a sophisticated VCA compressor section with switchable tube saturation, variable attack and release parameters, and program-dependent adaptivity. The centerpiece of its tonal sculpting capabilities is a fully parametric 4-band equalizer based on classic passive circuit topologies, offering precise frequency control with musical, sweet-sounding curves.

Engineered for seamless integration into modern digital production workflows, the DTC offers optional high-resolution 24-bit/96kHz AD/DA digital conversion via the Mindprint DI-MOD expansion module. With comprehensive metering, insert loops per channel, flexible link modes for stereo operation, and pristine balanced analog I/O, the Mindprint DTC serves as a supreme dual-channel frontend for boutique studios, broadcast facilities, and mastering suites.

• Dual-Channel Discrete Class-A Preamplification: Two independent high-end preamps providing clean, low-noise gain with massive headroom for dynamic, condenser, and ribbon microphones.

• Dual-Stage Tube Saturation Engine: Integrates high-voltage vacuum tubes into the signal path to introduce controllable harmonic warmth and soft-knee tube saturation.

• Mastering-Grade 4-Band Parametric EQ: Highly musical passive-style EQ architecture featuring fully parametric midrange bands and sweepable high/low shelf filters.

• Precision VCA Compressor: Advanced dynamic control section with variable threshold, ratio, attack, release, and adaptive program-dependent modes for seamless level management.

• Stereo Link Capability: True stereo linking mode locks both channels together for mix bus processing, stem compression, and mastering tasks.

• Digital Expansion Slot: Accommodates optional DI-MOD digital expansion boards for pristine 24-bit/96kHz AES/EBU and S/PDIF digital connectivity.

• Flexible Insert Architecture: Independent channel inserts allow external outboard processors to be patched into the signal chain before or after the EQ and dynamics stages.

Specifications:

• Processor Type: Dual-Channel Tube/Solid-State Channel Strip & Equalizer
• Inputs: 2 × XLR (Microphone), 2 × 1/4" TRS (Line), 2 × 1/4" Instrument (Front Panel Hi-Z)
• Outputs: 2 × XLR (Balanced Main Out), 2 × 1/4" TRS (Balanced Main Out)
• Frequency Response: 10Hz – 50kHz (±0.5 dB)
• Equivalent Input Noise (EIN): -129 dBu (A-weighted)
• Dynamic Range: > 118 dB
• Maximum Output Level: +22 dBu
• Form Factor: 2U Rackmount
• Dimensions: 19" W × 3.5" H × 9.4" D (483mm × 88mm × 240mm)
• Weight: 13.2 lbs (6.0 kg)
