Studio Level Vocals In An Easy-To-Use Stompbox

Features

• Real-time vocal harmonies and high-quality effects in an affordable, easy-to-operate pedal
• Auto Harmony function automatically detects chords played on a connected guitar and generates perfectly matching harmonies, even during mid-song key changes
• Solo singers can create harmonies by manually setting the song key with a dedicated panel knob
• Hybrid mode creates harmonies based on both guitar chord input and the manual key setting, perfect for songs where the guitar part transitions between rhythm and lead playing
• 24 harmony types to choose from (12 one- and two-voice harmonies plus variations that provide even fuller sounds)
• Friendly user interface that’s simple to use, even for vocalists not familiar with using effects
• Easily dial up reverb and delay effects with a single knob
• Enhance function controls dynamics and applies subtle pitch correction as you sing
• Three memories for storing favorite settings
• Runs on four AA-size batteries or optional PSA-series AC adapter
• XLR mic input with phantom power (phantom power is available even when running on batteries)
• USB audio function for capturing processed vocal sounds into your computer

Nominal Input Level

• MIC IN : -40 dBu (MicSens = Center)
• GUITAR IN : -10 dBu

Input Impedance

• MIC IN : 4 k ohms
• GUITAR IN : 1 M ohm

Nominal Output Level

• XLR OUT : -40 dBu
• PHONES/LINE OUT : -20 dBu

Output Impedance

• XLR OUT: 600 ohms
• PHONES/LINE OUT : 33 ohms
• GUITAR THRU : -10 dBu
• Effect Types : HARMONY, ECHO, ENHANCE
• Number of Harmony Types : 12 x 2(VARIATION)
• Number of Memory : 3

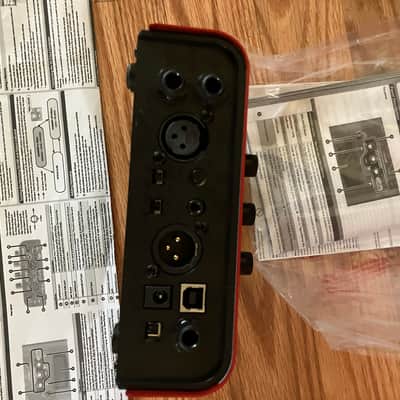

Connectors

• MIC IN jack : XLR type, balanced, phantom power (DC 46 V, 10 mA Max)
• GUITAR IN jack : 1/4-inch phone type
• GUITAR THRU jack : 1/4-inch phone type
• XLR OUT jack : XLR type
• PHONES/LINE OUT jack : Stereo miniature phone type
• VARIATION, MEMORY INC jack : 1/4-inch TRS phone type
• USB COMPUTER port : USB type B

Size

• Width : 156 mm, 6-3/16 inches
• Depth : 116 mm, 4-5/8 inches
• Height : 64 mm, 2-9/16 inches
