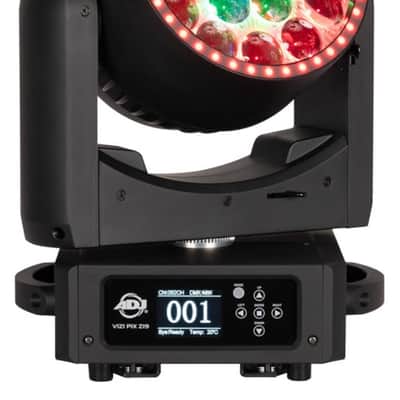

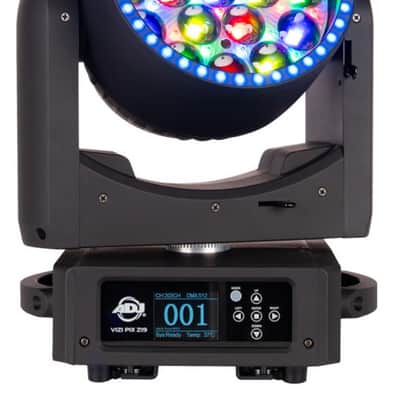

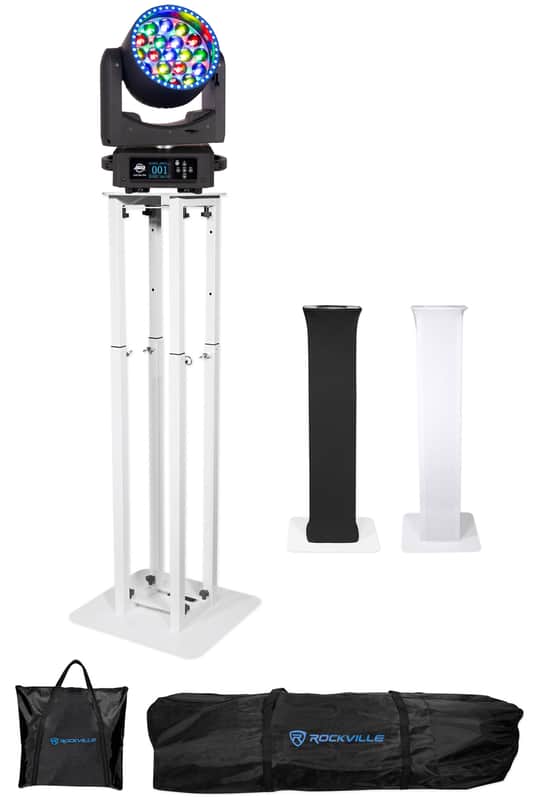

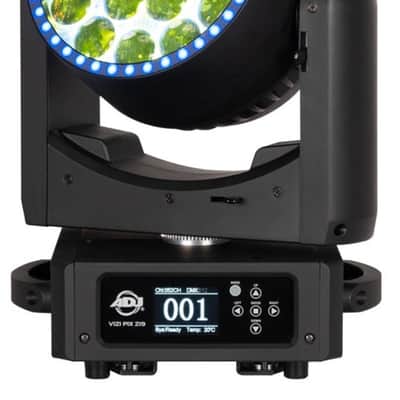

American DJ Vizi Pix Z19 RGBL LED Moving Head Light+Totem Stand+Carry Bag

Package Includes:

• (1) American DJ Vizi Pix Z19 RGBL LED Moving Head Light w/virtual CMY Color Mixing
• (1) Rockville RTP32W Totem Moving Head Light Stand+Black+White Scrims+Carry Bags

What’s Included:

• 108mm Omega Brackets (2x)

• 1x 2M, IP65-rated locking power cable


Description:

Vizi Pix Z19 is a cutting-edge tool for modern lighting designers, delivering a stunning array of dynamic effects and advanced virtual CMY color mixing for an unforgettable live experience. Featuring 19x 30-Watt RGBL LEDs, vibrant RGB background LEDs, and an innovative LED ring, it creates immersive beams, washes, and vibrant color effects that captivate audiences.

Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.

Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.

Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.

With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.

Specifications:

Optical (Foreground LEDs):

• 19x 30W RGBL (4-IN-1) LEDs

• 30,000 Hour Average LED Life

• CRI: 86

• 16,500+ Lux (Zoomed In to 7° @ 5 meters)

• 7° to 42° Beam Angle

• 9° to 60° Field Angle


Optical (Background LEDs):

• 30x 0.5W SMD RGB LEDs

• 50,000 Hour Average LED Life


Optical (Ring LEDs):

• 40x 0.5W SMD RGB LEDs

• 50,000 Hour Average LED Life


Features:

• Moving Light Pixel Wash with Effects

• Individual Pixel Control (Foreground Background LEDs)

• RGB LED Ring

• Built-In Pixel Effect Programs

• Aria X2 Wireless Management System

• Electronic Strobe / Dimmer

• Pan/Tilt: 630/540 x 270

• Motorized Zoom

• Color Calibrated Pixels so units match from batch to batch

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Selectable LED Refresh Rates (900 Hz~25K Hz)

• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)

• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve

• 0-100% smooth dimming

• Fan Cooled


Colors:

• 19x RGBL LEDs (Red, Green, Blue and Lime)

• 70x RGB LEDs (Red, Green and Blue)

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Built-In Color Macros

• 2,700K ~ 10,000K Linear White Color Temperature Control

• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K


Effects:

• 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable

• 30x 0.5W RGB Background LEDs, Fully pixel mappable

• 40x 0.5W RGB Ring LEDs, three channel control

• Variable Strobe Pulse effects (0.5Hz to 33Hz)

• Motorized Zoom (7° to 42°)


Connections:

• Seetronic, IP65 locking power In Thru Connections

• Seetronic, IP20 5-pin In Out DMX Connections

• 2x IP20, RJ45 network ports


Control:

• Aria X2 Wireless Management System

• DMX-512

• RDM (Remote Device Management)

• Artnet

• sACN

• 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 133 channels

• Built-In Effect Pixel Programs with Speed and Fade Control

• With Wired Digital Communication Network


Pan/Tilt:

• Pan: 630 or 540 degrees

• Tilt: 270 degrees

• 16-Bit Fine Pan Tilt

• Pan Tilt Locks


Electrical:

• Multi-voltage operation: 100-230V, 50/60Hz

• Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.


Dimensions Weight:

• Dimensions (LxWxH): 9.0”L x 12.0”W x 15.5”H (230x304x394mm)

• Center-to-Center Spacing: 13.8" (351mm)

• Weight: 22.6lbs (10.1kg)


Approvals / Rating:

• cETLus (Control # 5028947)

• CE Certified

• FCC

• IP20

All About Your RTP Totem Stands:

All About Your Totem Plates for RTP32W, RTP32B, RTP82W, and RTP82B:

How To Set Up Your RTP Totem Stands:

What's in the box:

• (1) Podium Stand
• (1) White Scrim
• (1) Black Scrim
• (1) Bag for Main Frames Base, and Top Support Legs
• (1) Bag for Top Plate and Base Plate
• (1) 35mm Pole Mount Adaptor
• Non-slip foam EVA pads
• (1) 8mm Thumb Bolt and Washer Pack
• Warranty Card
• Owner's Manual

Features:

• Rockville RTP32W Totem Pole Moving Head Light Stand+Black+White Scrims+Carry Bag
• Perfect for lights, speakers, monitors, etc.
• Adjustable height from 39" inches to 68.8" inches
• Requires no tools for assembly and can be assembled within a couple minutes
• Designed for maximum stability even at its top height of 69" inches
• Includes 2 sets of scrims (black and white)
• Includes 2 travel bags for easy transporting
• Includes 35mm pole mount speaker adapter for mounting speakers
• Non-slip foam EVA pads can be attached to the top plate
• Velcro cable ties included for neat cable management
• Unique, spring loaded turn and lock mechanism for easy height adjustment
• Base and top plate have integrated transport handless
• Includes frame support bars to assist with stability
• Includes 8mm quick release thumb screws and bolts for easy assembly
• Color: White
• Steel Construction
• Base Plate (W x D x H): 19.6" x 19.6" x 0.11" inches
• Top Plate (W x D x H): 11.8" x 11.8" x 0.11" inches
• Pole Mount Speaker Adapter Length: 4 7/8"
• Unit Dimensions for transport (W x D x H): 19.6" x 19.6" x 39" inches
• Maximum Weight that the unit will support: 132 lb
• Unit Weight: 37 Lbs.
