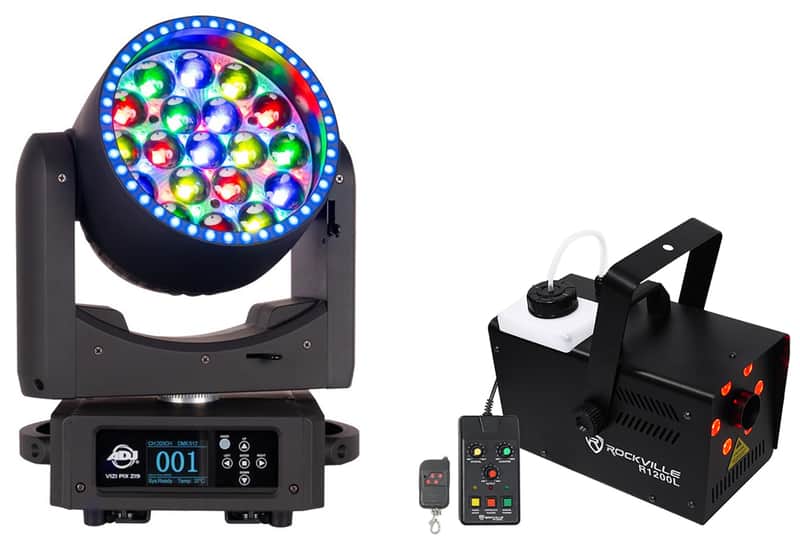

American DJ Vizi Pix Z19 RGBL LED Moving Head Light+Fog/Smoke Machine w/ LED's

Package Includes:

• (1) American DJ Vizi Pix Z19 RGBL LED Moving Head Light w/virtual CMY Color Mixing
• (1) Rockville R1200L Fog/Smoke Machine w LED Lights/Strobe, 7 Channel DMX+2 Remotes

What’s Included:

• 108mm Omega Brackets (2x)

• 1x 2M, IP65-rated locking power cable


Description:

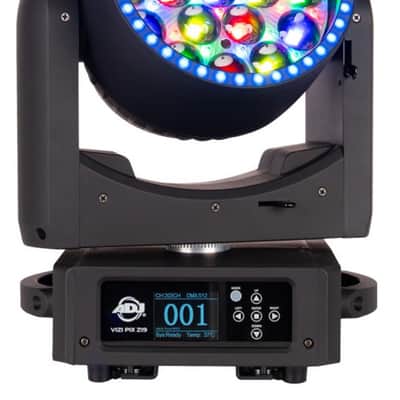

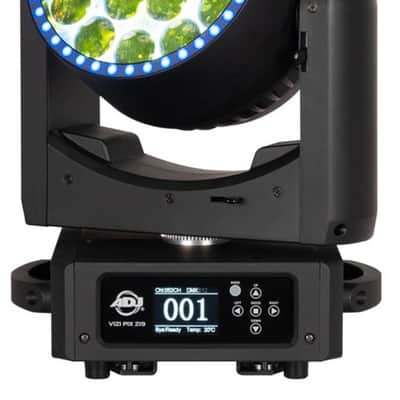

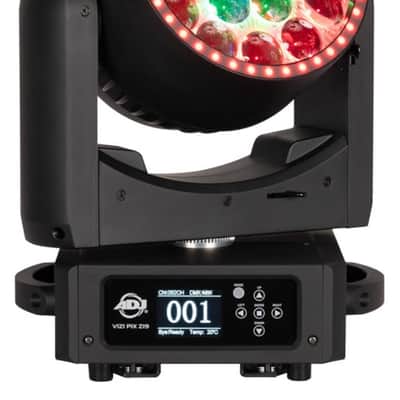

Vizi Pix Z19 is a cutting-edge tool for modern lighting designers, delivering a stunning array of dynamic effects and advanced virtual CMY color mixing for an unforgettable live experience. Featuring 19x 30-Watt RGBL LEDs, vibrant RGB background LEDs, and an innovative LED ring, it creates immersive beams, washes, and vibrant color effects that captivate audiences.

Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.

Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.

Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.

With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.

Specifications:

Optical (Foreground LEDs):

• 19x 30W RGBL (4-IN-1) LEDs

• 30,000 Hour Average LED Life

• CRI: 86

• 16,500+ Lux (Zoomed In to 7° @ 5 meters)

• 7° to 42° Beam Angle

• 9° to 60° Field Angle


Optical (Background LEDs):

• 30x 0.5W SMD RGB LEDs

• 50,000 Hour Average LED Life


Optical (Ring LEDs):

• 40x 0.5W SMD RGB LEDs

• 50,000 Hour Average LED Life


Features:

• Moving Light Pixel Wash with Effects

• Individual Pixel Control (Foreground Background LEDs)

• RGB LED Ring

• Built-In Pixel Effect Programs

• Aria X2 Wireless Management System

• Electronic Strobe / Dimmer

• Pan/Tilt: 630/540 x 270

• Motorized Zoom

• Color Calibrated Pixels so units match from batch to batch

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Selectable LED Refresh Rates (900 Hz~25K Hz)

• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)

• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve

• 0-100% smooth dimming

• Fan Cooled


Colors:

• 19x RGBL LEDs (Red, Green, Blue and Lime)

• 70x RGB LEDs (Red, Green and Blue)

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Built-In Color Macros

• 2,700K ~ 10,000K Linear White Color Temperature Control

• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K


Effects:

• 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable

• 30x 0.5W RGB Background LEDs, Fully pixel mappable

• 40x 0.5W RGB Ring LEDs, three channel control

• Variable Strobe Pulse effects (0.5Hz to 33Hz)

• Motorized Zoom (7° to 42°)

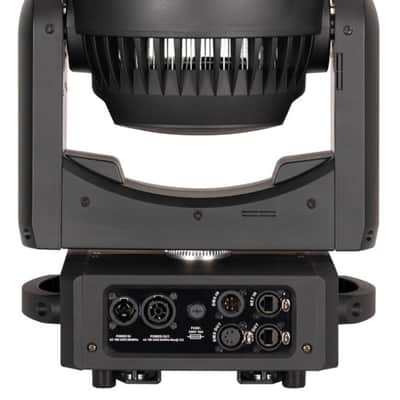

Connections:

• Seetronic, IP65 locking power In Thru Connections

• Seetronic, IP20 5-pin In Out DMX Connections

• 2x IP20, RJ45 network ports


Control:

• Aria X2 Wireless Management System

• DMX-512

• RDM (Remote Device Management)

• Artnet

• sACN

• 7 DMX Control Modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 133 channels

• Built-In Effect Pixel Programs with Speed and Fade Control

• With Wired Digital Communication Network


Pan/Tilt:

• Pan: 630 or 540 degrees

• Tilt: 270 degrees

• 16-Bit Fine Pan Tilt

• Pan Tilt Locks


Electrical:

• Multi-voltage operation: 100-230V, 50/60Hz

• Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.


Dimensions Weight:

• Dimensions (LxWxH): 9.0”L x 12.0”W x 15.5”H (230x304x394mm)

• Center-to-Center Spacing: 13.8" (351mm)

• Weight: 22.6lbs (10.1kg)


Approvals / Rating:

• cETLus (Control # 5028947)

• CE Certified

• FCC

• IP20

How To Set Up Your R1200L:

Video of R1200L:

What's In The Box:

• 1 x R1200L Top Quality Fog Machine with Remote and Multi Color 3in1 LED Lights
• 1 x Wired Remote
• 1 x Wireless Timer Remote
• 1 x Warranty Card
• 1 x User Manual

Description:

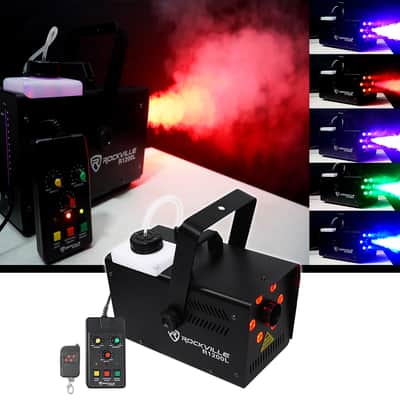

The Rockville R1200L fog machine is incredible. On top of being a top of the line fog machine; we've added built in LED lights that give off an effect of colored fog coming out of the machine. The LED's on the machine can be controlled in 3 ways:

1. Sound activated - light and color will go along with the beat
2. You can use one of the (2) included remotes
3. This has 7 channels of DMX controls

There is currently nothing on the market like this product. This product combines an extremely high output fog machine with completely customizable LED lights that can create many cool effects. The amount of fog this machine produces is enough to fill up large venues within minutes. What is unique about this product is the amount of control that you will have. With both a wired and a wireless remote included, you can control the following:

1. The color of the 6 RGB LED lights (You can choose a solid color or go to color changing mode where the lights will change colors)
2. The speed of the lights (You can have them solid color or set them to strobe)
3. There is also a sound activated mode which will have the lights go to the beat of the music
4. In addition you can use each of the features individually which means you can use only the lights or only fog, or both!

The build quality of the Rockville R1200L is incredible! It is extremely durable, and easy to transfer to all of your events!
We are offering a 30 Day money back guarantee including return shipping! We know this is the best fog machine on the market with the best controls and features! If you do not agree, we will send you a pre-paid shipping label and you can send it back for a full refund! (You have to send it back with the original box and all included accessories).

Features:

• Rockville R1200L Fog/Smoke Machine with RGB Lights and Included Wired Remote, Wireless Remote
• 6 LED's Built In Each LED is 3 Watts
• Top of the line Tianxin brand LED's are reliable, bright, and have amazing performance
• DMX Control (7 Channels) details below*
• Output: Capacity 12,000cfm (cubic feet per minute)
• Fluid Capacity Meter allows you to see how much fluid remains
• 4-5 minute start time (fastest on the market for a similar priced unit)
• Manual fog button
• Wired remote included can control the timing, and the output of the fog with either manual, or continuous fogging
• Wireless timer remote included. Hit one button and 30 seconds of fog will come out
• Water-based fogger compatible with standard fog fluid made by Rockville, Chauvet, American DJ, Visual Effects, and other famous brands
• 1.2L (40.57 Fluid ounce) tank capacity
• Fluid Consumption: 10 Fluid Ounces per hour
• More power, more reliable, and better controls than machines that are twice the price
• Strong enough for indoor or outdoor use
• This machine produces a thick fog capable of staying in the air for a long time
• Perfect for DJ use, bars, karaoke parties, etc.
• Wired Remote Length: 16.5 Feet
• Wireless Remote Range: 65 Feet
• Power and Current: 110V, 60Hz: 440W, 10A operating
• AC Power: 110V-130V (60HZ)
• Unit Weight: 7.7 lbs
• Unit Dimensions (Inches): 12.2" x 5.9" x 8.66"
• Shipping Weight: 8.82 lbs
• Shipping Dimensions (Inches): 13.78" x 8.07" x 10.04"
• Our fog machine will output twice as much as other machines being sold by other famous brands.

DMX Adjustment Properties:

• Fog Spraying Adjust: 0-255
• Red Color Adjust: 0-255
• Green Color Adjust: 0-255
• Blue Color Adjust: 0-255
• Strobe: 0-255
• Led Gradient: 0~255
• Led Sound Control: 251~255
• LED Gradient Speed Adjustment
