HH Audio TNA-2051-G3 Passive Line Array Speaker 2-Way PA Loudspeaker 200W 16 Ohm

TNA-2051-G3

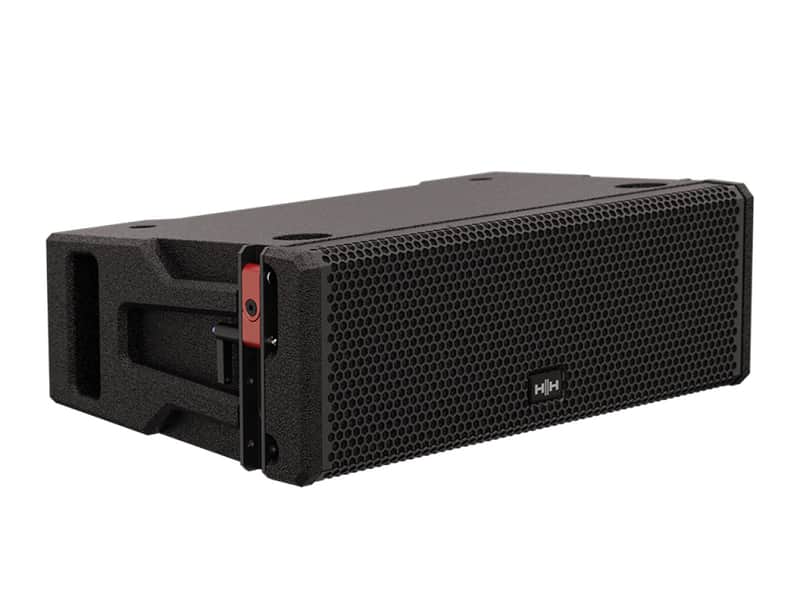

The TNA-2051-G3 is a passive line array loudspeaker comprising two 5-inch HH-designed LF drivers alongside a 1.33-inch Celestion CDX1-10WG compression driver, mounted to a Celestion-designed waveguide and horn flare for optimal coverage control and clarity.

With a system power rating of 200W AES and a sensitivity of 94dB SPL (1W/1m), the TNA-2051-G3 delivers an impressive maximum SPL of 123 dB SPL (1m), ensuring precise and powerful audio throughout the carefully controlled coverage area.

Engineered for seamless integration, the TNA-2051-G3 pairs effortlessly with either the TNA-1200S-G3 passive subwoofer or the TNA-2120SA-G3 active subwoofer. The integrated 3-point pin-based rigging system simplifies set-up and tear-down time for TNA-G3, offering significant efficiency improvements over previous generations. Whether the system is flown or ground stacked, this mechanical upgrade minimises set-up time while expanding the range of use cases from fixed installations to small-to-medium scale touring applications.

This generation of TNA benefits from several key acoustic, mechanical, and aesthetic upgrades, including:

• Acoustic optimisation to improve overall system performance.
• Simple setup and teardown via the integrated pin-based rigging system.
• Enhanced durability with an upgraded hard-wearing black paint finish.
• Improved aesthetics with an updated cabinet design.
• TNA-G3 systems can be flown via the TNA-BRK1-G3 flying bracket.

Features:

• System Type: 2-Way Line Array Loudspeaker.
• Frequency Response (-10dB): 65Hz–20kHz.
• Frequency Response (-3dB): 100Hz–18kHz.
• Power: 200W AES, 800 W peak.
• Sensitivity (1W/1M): 94dB SPL.
• Maximum SPL: 123dB SPL.
• Nominal System Impedance: 16 Ohms.
• Input Connector: NL4 ±1 Twist Lock Connector.
• Link Connector: NL4 ±1 Twist Lock Connector.
• HF Driver: 1 x 1.33" Celestion Compression Driver mounted to Celestion-designed Waveguide and Horn.
• LF Driver: 2 x 5" HH-Designed Drivers.
• Crossover Frequency: 2000Hz.
• Nominal Dispersion: 120° x 8° Single Box.
• Recommended HPF Frequency: 100Hz.
• Cabinet: 15mm Plywood.
• Finish: Painted Black.
• Mounting Bracket: TNA-BRK1-G3 for Suspended Mounting.
• Mounting Points: 6 x M8 Mounting Points for Integrated Rigging System.
• Linking Bracket: 3-Point Rigging System with Removable Locking Pin for Linking and Adjusting Splay Angle.
• Splay Angle Settings: 0°, 4°, and 8° Between Enclosures.
• Grille: 1.5mm Steel Thickness, Hexagonal Mesh with Acoustic Foam Lining.

Please Note: This listing is for one HH Audio TNA-2051-G3 passive line array loudspeaker only. Power amplifier, subwoofer, speaker cables, flying bracket, mounting hardware, and additional TNA-G3 array modules are sold separately unless specifically stated otherwise.
