Genex GXA8 8-Channel HiRes A/D Converter w/ Expansion Modules

Genex GXA8 8-Channel HiRes A/D Converter

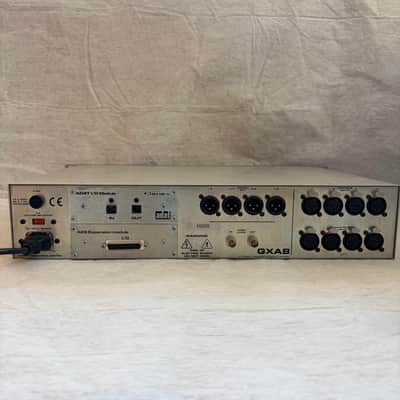

in good working condition all around, includes the ADAT I/O module and the AES expansion module!

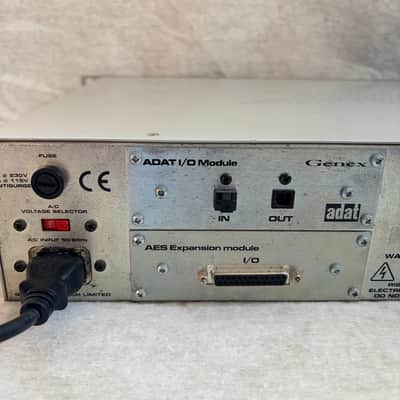

The ADAT I/O module is an expansion card that uses optical "lightpipe" cables to send and receive multiple channels of digital audio between studio gear.

The AES expansion module I/O is a hardware card that allows you to send and receive multi-channel digital audio using the AES3 (AES/EBU) standard over one breakout cable.

"The Genex GXA8 is a professional 8-channel analog-to-digital (A/D) audio converter known for its high sonic transparency, mastering-grade clarity, and support for high-resolution audio.

• Channels: 8 pristine analog inputs via XLR
• Sample Rates: Supports standard rates from 44.1kHz up to 192kHz
• Bit Depths: 16-bit, 20-bit, and 24-bit PCM
• Dynamic Range: 123dB (A-weighted)
• THD+N: 105dB at 48kHz, 103dB at 96kHz, and 100dB at 192kHz
• Interchannel Crosstalk: 120dB
• Dimensions: 482mm x 310mm x 89mm (standard rackmount)

Features & Connectivity

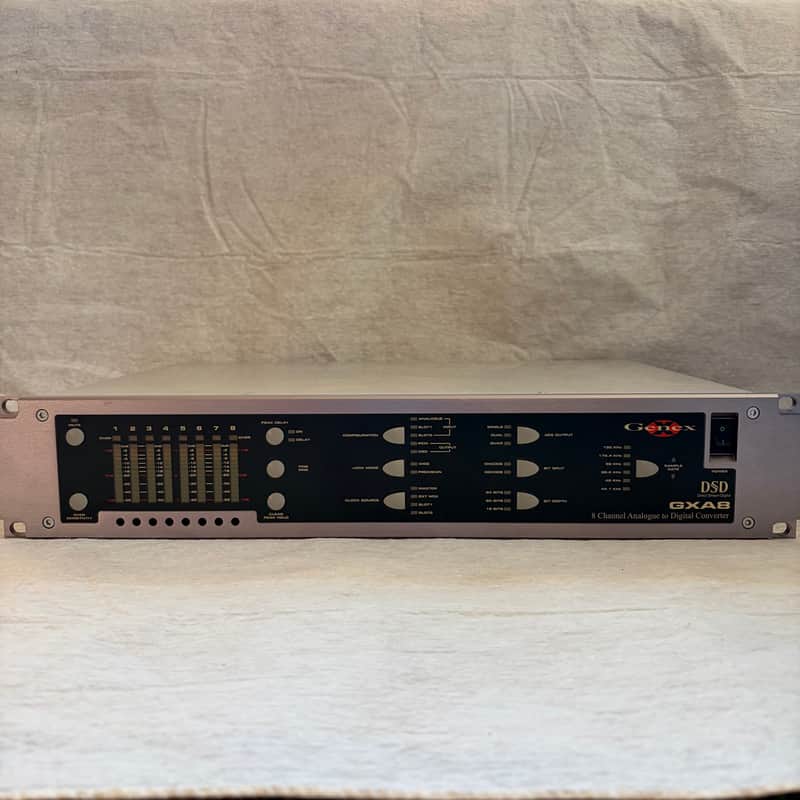

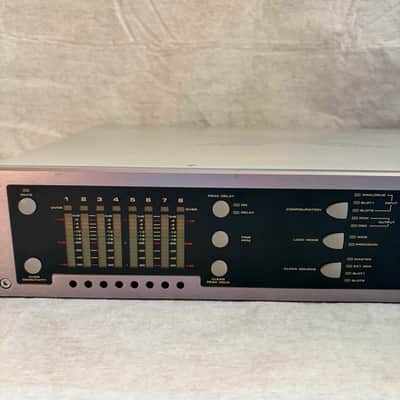

• Metering: Features 8 high-resolution peak power meters (PPMs) on the front panel with zooming capabilities.

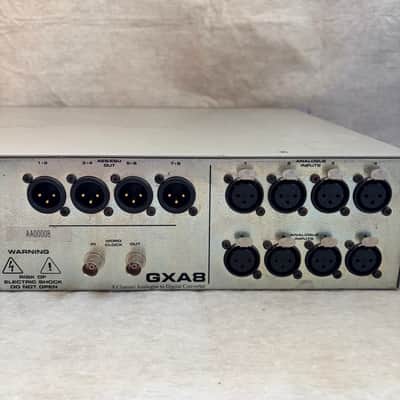

• Standard Outputs: Fitted with four AES/EBU digital outputs (delivering 8 channels up to 96kHz or 4 channels at 192kHz).
• Optional Interfaces: Compatible with expansion cards for AES/EBU, ADAT, MADI, SuperMAC, Pro Tools interfaces, and a specialized DSD I/O card for Sony Direct Stream Digital (1-bit, 2.8224MHz) recording."
