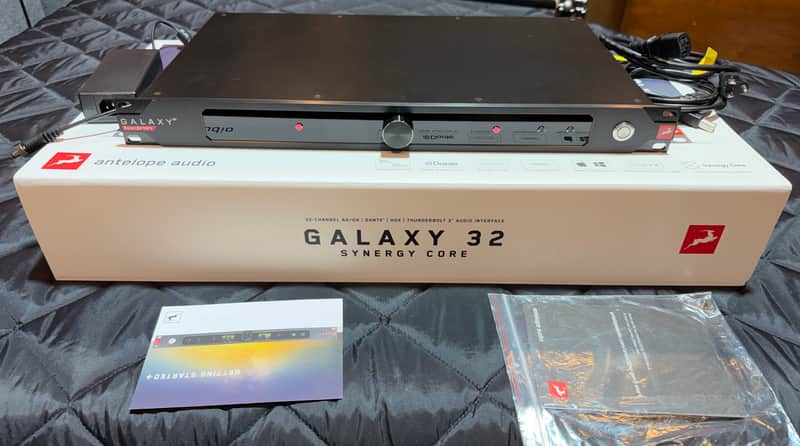

This one is in like new condition. Used handful of time. What an amazing interface with excellent variety of connections! AD/DA conversion sound is in league on its own! Amazing! We already have 64 AD/DA, so this one was a backup. Not needed anymore.

Dante audio capability and Synergy Core processing perfectly position the Galaxy 32 Synergy Core audio interface for use in professional recording studios or high-end production and broadcast facilities. 32 analog inputs and outputs (I/O) on 25-pin D-sub connectors, and various digital I/O, make the Galaxy 32 the ideal hub for large-scale production applications. Built-in Dante connectivity allows the interface to offer its available I/O, features, and conversion across your entire facility with only a single LAN Ethernet cable, providing a seamless introduction to your current Audio Over IP system. With dual HDX ports, there’s also complete out-of-the-box integration with Pro Tools (sold separately). Native HDX support accommodates 64 channels of Pro Tools I/O at 192kHz for your most demanding multimedia productions, including all surround and immersive audio protocols. And since it's it’s Antelope, you can expect audio conversion with flawless clocking producing master-grade tracks with perfect sync to tie your productions together. The Galaxy 32 Synergy Core for uncompromising audio with the connections that matter, hook yours up today.

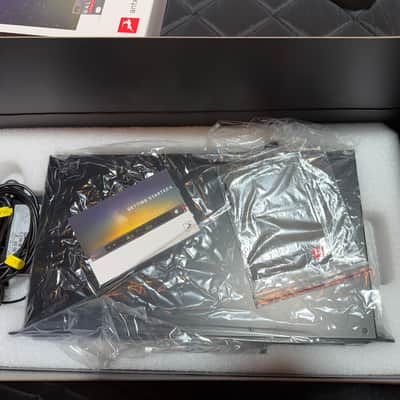

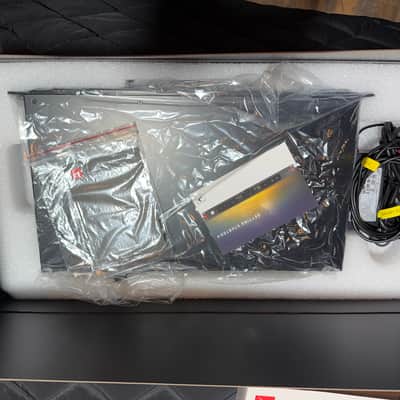

Antelope Audio GALAXY-32-SYN-CORE Includes:

• Power cable
• Power adapter
• USB Cable
• Getting Started guide

Antelope Audio GALAXY-32-SYN-CORE Features:

• 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
• Dante™ audio over IP with primary port for audio transfer over long distances and a mirrored secondary port for redundancy
• 2 × HDX ports (24-bit, 192kHz): up to 64 channels I/O for Pro Tools HD / HDX integration
• Thunderbolt™ 3 port with custom macOS & Windows drivers for low latency performance in native DAW applications
• Digital I/O: 64 channels of optical MADI, 8 channels of ADAT, and 2 channels over S/PDIF
• Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail
• High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter
• Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear
• Up to 128 real-time effects instances per session loaded simultaneously
• Virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop
• All digital ports can be used simultaneously for easy integration with multiple systems and different setups
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing

Antelope Audio GALAXY-32-SYN-CORE Specifications:

• AD Line Input
• • Input Connection: 4 x D-sub 25-pin (Tascam Standard)
  • I/O Channel Count: 32 Channels
  • Input level trim: 12 dBu to 22 dBu in steps of 1 dB
  • Dynamic Range: 122 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -116 dB
  • Impedance Load: 11.2 kOhms
• DA Line Output
• • Output Connection: 4 x DC-coupled D-sub-25-pin (Tascam Standard)
  • I/O Channel Count: 32 Channels
  • Output level: -inf to 22dBu // 1 dB step
  • Dynamic Range: 128 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -115 dB
  • Impedance Load: 56 Ohms
• DA Monitor Output
• • Output Connection: 2 x 1/4” 6.35 mm Jack (3 pin)
  • Channel Count: 2 Channels
  • Output level: -inf to 22dBu // 1 dB step
  • Dynamic Range: 130 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -115 dB
  • Impedance Load: 56 Ohms
• Digital Interface – Thunderbolt™
• • Interface Connection: 1 x Thunderbolt 3 Port, I/O
  • I/O Channel Count: 64 Channels
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • Control Panel Support: Supported
• Digital Interface - Dante®
• • Interface Connection: 2 x RJ-45 Ports, I/O
  • I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
  • Connectivity: Primary and Redundant
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - HDX
• • Interface Connection: 2 x HDX Ports, I/O
  • I/O Channel Count: 64 Channels (32 Per Port)
  • Primary/Secondary ports: 2 Primary
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
  • Delay Compensation: Supported
  • Manual Delay Compensation: Supported (up to 128 samples)
  • Session I/O Support: Yes (16x16)
• Digital Interface - MADI
• • Interface Connection: 2 x Optical SC Connectors
  • MADI Mode: Dual Wire, Optical
  • SMUX: Supported
  • Madi Protocol: AES10-2003
  • I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - S/PDIF
• • Interface Connection: 2 x RCA Connectors
  • SPDIF SRC: Not Supported
  • I/O Channel Count: 2 Channels
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - ADAT
• • Interface Connection: 2 x Optical
  • SMUX MODE: Supported
  • I/O Channel Count: 8 Channels I/O (@ 44,1/48 kHz)
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Clocking System
• • Clocking Technology: 4th Generation Acoustically Focused Clocking 64-Bit Jitter Management DDS
  • Word Clock/Loop-Sync Input: 1 x Input @ 75 Ohms 3Vpp on BNC
  • Word Clock/Loop-Sync Output: 2 x Output @ 75 Ohms 3Vpp on BNC
  • 10M Atomic Reference Input: 1 x Input @ 75 Ohms 1Vpp on BNC
  • Clock Stability:
  • Clock Aging:< 1 ppm per year
  • Clock Calibration:
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Display Screens
• • Display Count: 2
  • Display Type: IPS
  • Resolution: 320x240
  • Dimensions: 1.8”
• Other
• • Operational Temperature: 0-50°C/32-122°F
  • Electrical Specs: 40 Watts
  • Weight: 3.4 kg/ 7.49 lbs
  • Dimensions: W482.6, D279, H44
• Mac:
• • Apple Mac 2012 or newer with Thunderbolt™ port
  • Minimum: macOS 10.12 Sierra. Recommended: macOS 11.02 Big Sur
  • Available storage space (Minimum 4 GB)
  • Memory (RAM): 4 GB minimum (8 GB or more recommended)
• Windows:
• • PC computer with certified Thunderbolt™ connectivity
  • Windows 10 (64-bit) with latest Microsoft Updates
  • Available storage space (Minimum 4 GB)
  • Memory (RAM): 4 GB minimum (8 GB or more recommended)
  • CPU: Intel Core i3™ or AMD FX (Higher recommended)
