TTA CL Banshee 34 1981 JCM 800 2204 Clone Working Point to Point VIDEO

TTA Time Tunnel Amps USA Stone Cloned Marshall jcm 800 2204 guitar amp.

Master Volume version and Controls go: Gain, Master, Presence, tone stack Bass, Mid, Treble

This amp is ready to play now, fully functional

Just tested all good, fully burned in 2 years old.

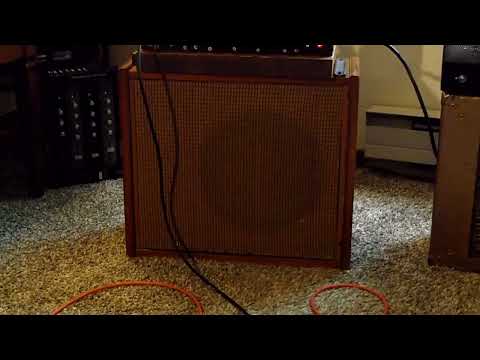

Video is to show the amp is working, I haven't played guitar in years, so figure that into sound sample, in video. Plugged in low input. 12" 70/80 English

gain 10, master 3, treble 2,, mid 10, presence open

using tele 5.2k bridge pickup

Power switch down is on, no B+ cathode biased, 2 inputs low gain and high gain

6L6 Push-Pull Cathode biased point to point raw power circuit kills, 10 percent circuit tolerance to original, no feedback resistor on this one.

Power switch onlyNo B+

Working great. Idling quiet. 5 minute warmup for this type amp before playing.

Running separate 6.3v filament transformer

8 ohm ouput, Bogen chasis, original Bogen ouput transformer and a vintage organ power transformer

OT tubes running 70% max and will last a long time.

Kerry King style power supply no choke. 6l6 ouput Svetlana set included.

2 vintage black plate 12ax7's V1 and V3, V2 vintage black plate 12at7

All tubes Included

around 20lbs, Heavy American iron

6l6 Biased like an old fender 6l6 cathode single resistor and cap approx 34 watts.

Original 1981 Marshall schematic 2 input style. Been running 2 years, fully tested and sounds killer

The Amp is Mounted on butcher block with a handle. TTA CL Banshee 34 watts

High voltage danger, do not service unless trained and skilled in high voltage -400 VDC

Shoot an offer we'll probably take it.
