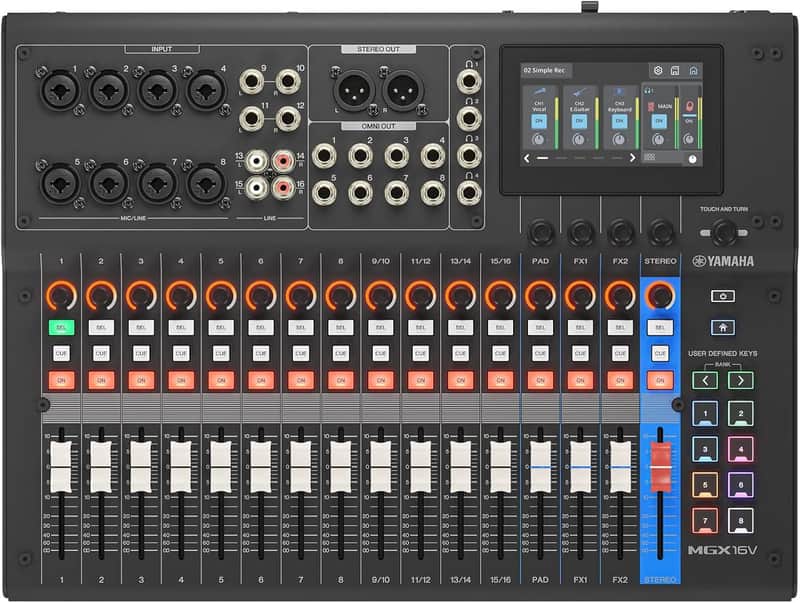

Yamaha MGX16V Digital Mixer - Black

The Yamaha MGX16V is a 22-channel digital mixing console built for live sound, streaming, podcasting, and recording. Its standout feature is an integrated HDMI audio/video interface, enabling streamlined, all-in-one A/V production workflows.

Key Features and Specifications

• Design & Control: Digital mixer with a 4.3-inch touchscreen and 16 non-motorized faders, delivering a familiar hybrid analog/digital mixing experience.

• Channel Count: 16 physical faders control 8 mono and 4 stereo input channels, plus additional returns for effects and a sound pad, totaling 22 mix channels.

• Mic Preamps: Features eight high-quality MGX mic preamps with an expansive 86 dB gain range and ultra-low distortion, reflecting Yamaha’s “True Sound” design philosophy.

• Integrated A/V Interface: Built-in USB-HDMI interface supports simultaneous audio mixing and high-definition video capture up to 4K/60fps, with real-time HDMI pass-through for simplified production setups.

• Recording Capability: Supports up to 16-track recording and 2-track playback directly to a microSD card, ideal for backups or standalone operation.

• Connectivity: Includes dual USB-C ports (22-in/22-out main interface and 2-in/2-out sub interface), Bluetooth 5.0 input, versatile analog I/O (XLR, ¼" TRS, RCA), and four independent headphone outputs.

• DSP Processing: Onboard DSP provides EQ, compression, gate, reverb, and amp simulators, along with smart tools like Auto Gain and Clip Safe for reliable, consistent mixes.

• Software Integration: Bundled with Steinberg Cubase AI and WaveLab Cast LE, and designed for seamless use with platforms such as OBS Studio and Elgato controllers.

Features

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
