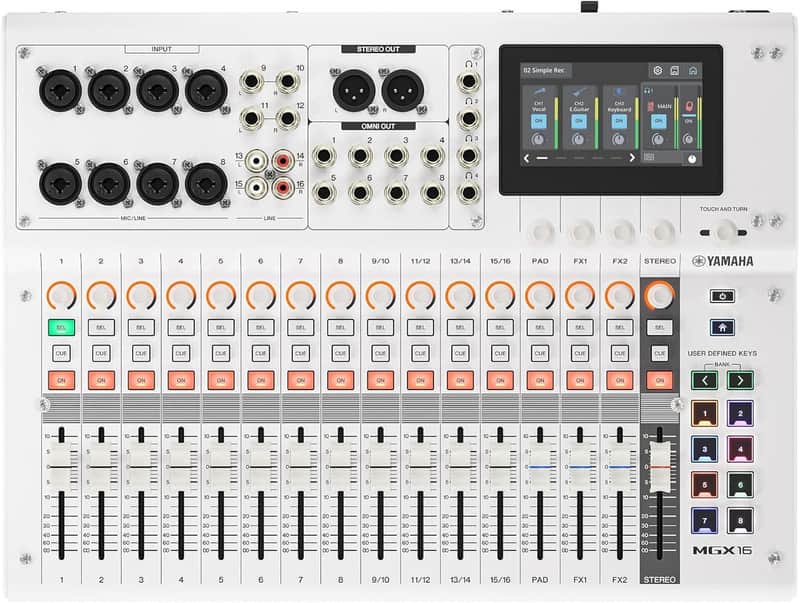

Yamaha MGX16 Digital Mixing Console

The Yamaha MGX16 is a compact yet powerful 22-channel digital mixing console designed for modern production workflows. Combining studio-quality sound with intuitive operation, it features a responsive 4.3-inch color touchscreen, dual USB audio interfaces, and built-in multitrack recording. Whether you’re mixing live sound, streaming, podcasting, or recording, the MGX16 delivers professional performance in a streamlined form factor.

Key Features & Specifications

Modern Evolution of a Classic
Building on the legacy of Yamaha’s renowned MG analog mixers, the MGX16 blends familiar hands-on control with advanced digital processing for fast, confident mixing.

Input Flexibility

• 8 mono mic/line combo inputs

• 4 stereo line inputs

• Dedicated sound pad channel

• 2 FX return channels

High-Quality Mic Preamps
Equipped with 8 premium MGX mic preamps designed around Yamaha’s “True Sound” philosophy, offering up to 86 dB of gain with exceptionally low distortion.

Intuitive Hybrid Control
A tactile control surface with 16 non-motorized faders and five rotary knobs is paired with a 4.3-inch touchscreen for quick access to channel processing, routing, and effects.

Comprehensive Connectivity

• Dual USB-C ports (22-in/22-out main interface, 2-in/2-out sub interface)

• Bluetooth® 5.0 audio input for wireless playback

Onboard Multitrack Recording
Record up to 16 tracks and play back 2 tracks directly to a microSD card—no computer required.

Advanced DSP Effects
Includes EQ, gate, compression, reverb, delay, amp simulators, and voice-changing effects, all processed internally for low-latency performance.

Smart Mixing Tools
Built-in Auto Gain and Clip Safe functions simplify setup, protect against distortion, and help ensure consistent, clean mixes.

MGX16 22-Channel Digital Mixing Console

The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX16 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
