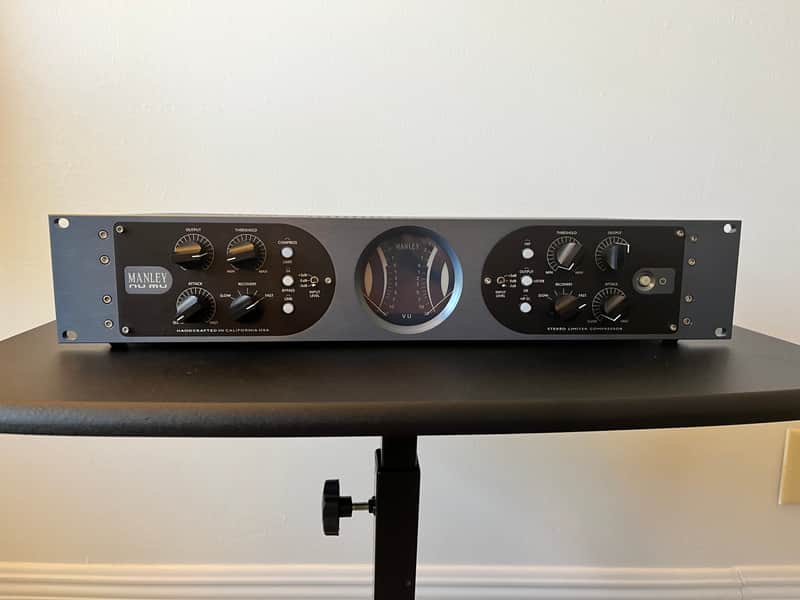

For sale, used Manley Nu Mu Hybrid Tube & Solid-State Compressor Limiter.

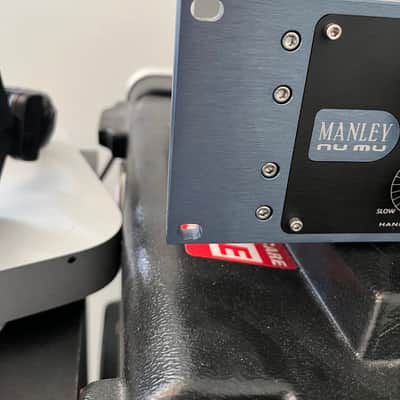

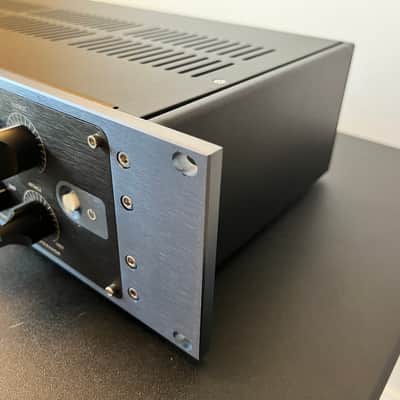

Please note that 1 of the 4 paddings on the bottom is missing, as shown on the second picture. Other than that, item is in perfect working order and in great aesthetic shape. Amazing sounding unit.
Will ship ground, but most likely with signature required. Will ship in original box, although not in great shape, but still protecting the item properly. Ships with power cord, manual and original sticker "tube rules".
Tube Complement & Compression Features:
- Variable-Mu tube input stage with solid-state signal path
- T-Bar modified all-tube front end derived from Variable Mu®
- Manley IRON® input transformers
- 4 x hand-matched 6BA6 vacuum tubes
- Transformer-Balanced XLR inputs
- Manley HIP function raises soft dynamics without squashing louder passages
- MANLEY POWER® High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits
- INPUT Level Preset 3-way switches -3dB, 0, +3dB
- Continuously variable OUTPUT level controls
- Unity Gain set INPUT to "0" and OUTPUT control to 11 o’clock. (Input source Z= 150 Ohms, Output load Z= 100 kOhms)
- Maximum input level: (1 kHz Sine, <0.3% THD+N)
- -3 = +25 dBu
- 0 = +21 dBu
- +3 = +18 dBu
- Maximum GAIN: 13dB
- GAIN makeup: 10dB (gain above unity)
- Output Headroom: 23dB (referenced to +4dBu)
- Variable ATTACK control: 13msec - 130msec
- RECOVERY switch 5 steps: 0.1s, 0.16s, 0.32s, 0.64s, 1.7sec.
- Continuously variable THRESHOLD controls
- Hardwired Relay Bypass Switch
- Ratio Mode switches between LIMIT (1.5:1 to 12:1) or COMPRESS (1.2:1 to 3:1)
- HP SC: High Pass Side Chain Filter -3dB @ 100Hz @ 6dB per Octave
- Stereo Link establishes Left-Master dynamic control for THRESHOLD, ATTACK, and RECOVERY controls
- Beautiful illuminated stereo VU meters read Gain Reduction or Output Level
- Hand-assembled in California with custom-wound Manley IRON® transformers
This item is sold As-Described
