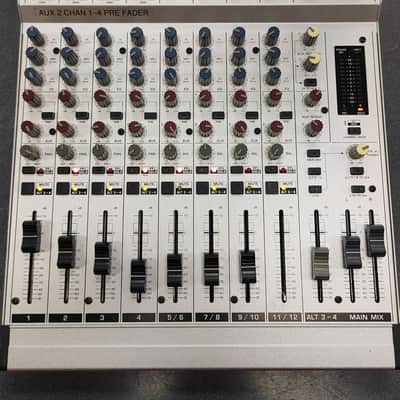

Behringer Eurorack MX1604A 16-Channel 4-Bus Analog Mic/Line Mixer

Versatile compact analog mixer with four mic preamps, four stereo channels, dual aux sends, Alt 3-4 routing and multiple monitoring/output options

The Behringer Eurorack MX1604A is a compact analog mixing console designed for home studios, rehearsal spaces, keyboards, small live setups, recording and general audio routing. Its 16-input architecture combines four dedicated mono mic/line channels with four stereo input channels, along with two stereo auxiliary returns.

It offers individual 3-band EQ, two aux sends, channel mute/Alt 3-4 routing, PFL/Solo monitoring, balanced main outputs, control-room outputs and a dedicated headphone output.

Condition:

Great pre-owned physical condition overall with normal light cosmetic wear consistent with age and use. The controls, input/output jacks, chassis and faders are generally clean and well preserved, as shown in the photos.

One plastic fader cap is missing from the stereo 11/12 channel. The actual fader slider remains present and functioning normally.

The mixer has been basically tested and no known functional issues were found during testing.

Includes:

• Behringer Eurorack MX1604A mixer
• Compatible AC power supply/adapter, not shown in photos
• Not included: Original box, manuals, audio cables, rack hardware or any other accessories

Key Features:

• 16-Input Architecture: Four mono channels plus four stereo channels provide up to 16 input paths.
• Four Mic Preamps: XLR microphone inputs on channels 1–4 with adjustable input gain.

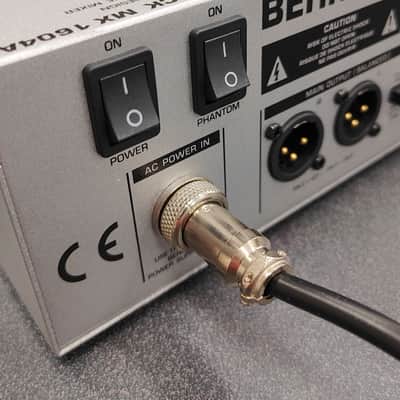

• +48V Phantom Power: Rear-panel phantom-power switching for compatible condenser microphones.
• Four Stereo Line Channels: Stereo inputs for keyboards, processors, playback equipment and other line-level sources.
• 3-Band EQ: High, mid and low EQ controls provided across the main channel strips.
• 75Hz Low-Cut Filters: Switchable low-frequency filtering on the four mono input channels.
• Dual Aux Sends: Two auxiliary buses for effects, monitors and external signal processing.
• Alt 3-4 Bus: Mute/Alt routing provides an additional stereo bus for more flexible signal management.

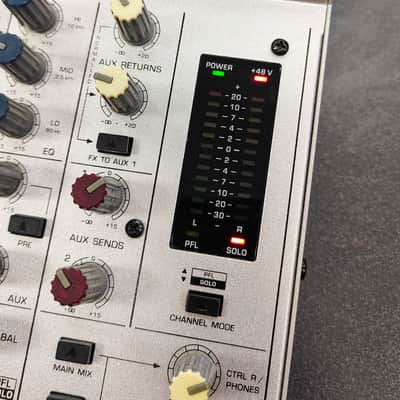

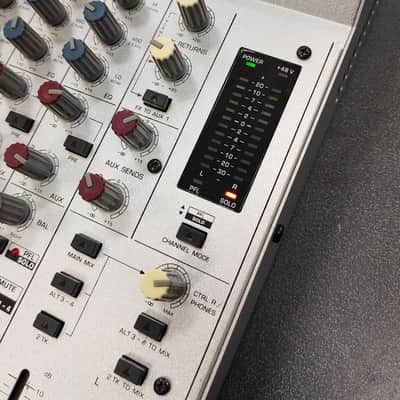

• PFL/Solo Monitoring: Individual channel monitoring with LED level metering.
• Multiple Output Options: Balanced XLR main outputs, 1/4" main and Alt outputs, control-room outputs and headphone monitoring.
• 2-Track I/O: Stereo RCA tape input and output connections.
• Stereo Aux Returns: Two stereo returns for external effects or additional line-level sources.

Technical Specifications:

• Brand: Behringer
• Model: Eurorack MX1604A
• Type: Analog mic/line mixing console
• Configuration: 16-input, 4-bus
• Mono Channels: 4 mic/line channels
• Stereo Channels: 4 stereo pairs – 5/6, 7/8, 9/10 and 11/12
• Mic Inputs: 4 × XLR
• Line Inputs: 1/4" connections
• EQ: 3-band – 12kHz high, 2.5kHz mid, 80Hz low
• Low Cut: 75Hz switchable on mono channels
• Aux Sends: 2
• Stereo Aux Returns: 2
• Main Outputs: Balanced XLR and 1/4"
• Additional Outputs: Alt 3-4, Control Room and headphones
• 2-Track Connections: RCA input/output
• Phantom Power: +48V
• Power: External AC power supply

Frequently Asked Questions:

Is the mixer working properly?
It has been basically tested and no known functional issues were found.

What is missing from the mixer?
The plastic fader cap for stereo channel 11/12 is missing. The underlying fader is still present and functioning normally.

Is the power supply included?
Yes. A compatible AC power supply is included, although it is not shown in the photos.

Does it have phantom power?
Yes. The mixer has switchable +48V phantom power for its microphone inputs.

Are any cables included?
No audio or connection cables are included.
