The photos shown are actual photos of the guitar you will receive.
Serial Number – EVH2501426
Weight – 7 pounds, 6.52 ounces

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series DX is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 DX features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.

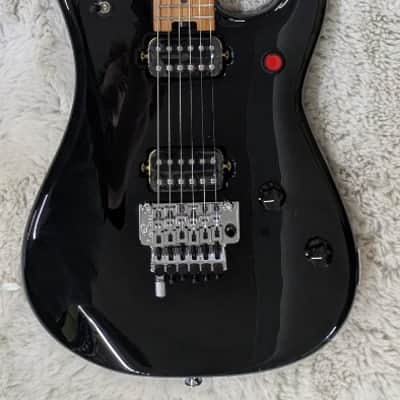

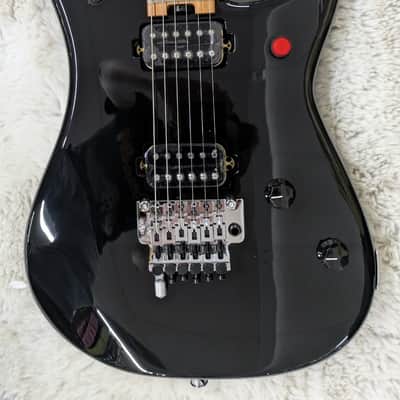

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

Features

• 25.5" scale length
• Modified Strat®-style basswood body with deeper upper body curve
• Graphite-reinforced bolt-on quartersawn baked maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish

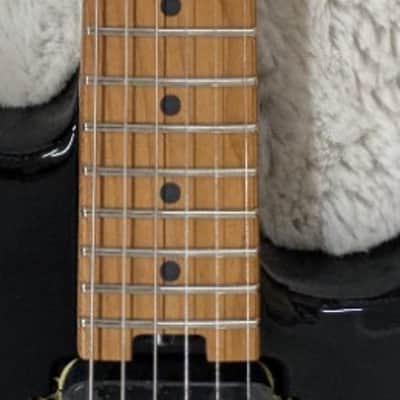

• 12"-16" compound radius baked maple fingerboard with 22 jumbo frets and black dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® bridge and neck humbucking pickups

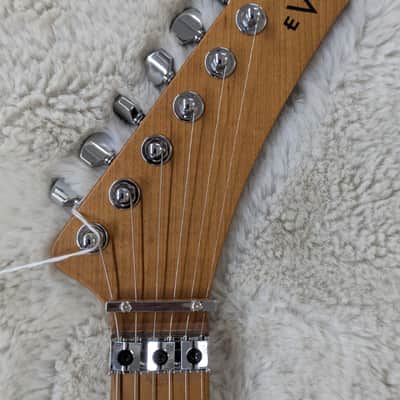

• Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
• EVH D-Tuna®
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction Pot)

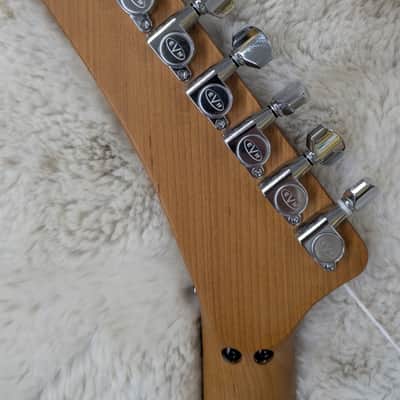

• Available in Gloss Black and Candy Apple Red Metallic with hockey stick headstock and all-chrome hardware, including the EVH-branded Gotoh® tuning machines

General

Series

5150® Series Guitars

Orientation

Right-Hand

Color

Black

Country Of Origin

Mexico

Neck

Headstock

EVH® Hockey Stick

Neck Material

Quartersawn Baked Maple

Neck Finish

Hand-Rubbed Satin Urethane

Neck Shape

EVH® Modified "C" Backshape

Neck Construction

Bolt-On with Graphite Reinforcement

Neck Thickness

.790" at 3rd Fret & .810" at 12th Fret

Fingerboard Radius

12" to 16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material

Baked Maple

Position Inlays

Black Dot

Side Dots

Black

Number of Frets

22

Truss Rod Nut

Heel-Mount Truss Rod Adjustment Wheel

String Nut

Floyd Rose® R3 Locking

Nut Width

1.685" (42.8 mm)

Nut Material

Floyd Rose® R3 Locking

Fret Size

Jumbo

Scale Length

25.5" (648 mm)

Body

Body

Basswood

Body Finish

Gloss Urethane

Body Shape

5150™

Body Material

Basswood

Hardware

Bridge

Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

Tremolo Block

Brass

Pickup Covers

Black

Control Knobs

Black Knurled with White Indicator

Switch Tip

Black

Hardware Finish

Chrome

Tuning Machines

EVH®-Branded Gotoh®

String Trees

Floyd Rose® Retainer Bar

Strings

EVH® Nickel Plated Steel (.009-.042 Gauges)

Tremolo Arm

Floyd Rose® 1000 Series Locking

Neck Plate

4-Bolt Standard

Strap Buttons

Oversized

Electronics

Bridge Pickup

Direct Mount EVH® Wolfgang® Humbucking

Neck Pickup

Direct Mount EVH® Wolfgang® Humbucking

Pickup Configuration

HH

Controls

Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

Switching

3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Auxiliary Switching

Kill Switch

Measurements

Shipping Dimensions

4.40x15.30x42.00 IN

Shipping Weight

10.31 LB

Shipping Length

42.00 IN

Shipping Height

4.40 IN

Shipping Width

15.30 IN

Accessories

Included Accessories

Tremolo Arm, Hex Keys & User Manual

Truss Rod Wrench

2.5 mm Hex
