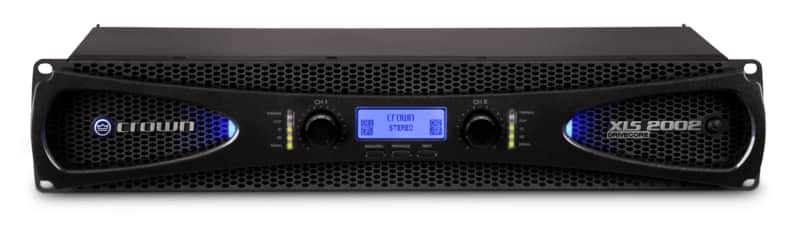

Crown Audio XLS 2002 Two-channel 650W Power Amplifier

The XLS 2002 delivers serious power in a compact, lightweight package—weighing less than 11 pounds while pushing massive wattage to your speakers with virtually no distortion. Crown's patented DriveCore technology ensures efficiency and headroom that lets you drive full output without compromise, making this amp equally at home in live sound reinforcement, touring rigs, or permanent installations. The enlarged LCD display and expanded DSP capabilities give you precise control over your signal path, while intelligent thermal management keeps the unit running cool under sustained load.

Power & Efficiency

Output reaches 650 watts per channel at 4 ohms, 375 watts per channel at 8 ohms, and 1,050 watts per channel at 2 ohms; bridge mode delivers 2,100 watts at 4 ohms or 1,300 watts at 8 ohms. Class D amplifier design with DriveCore technology achieves this performance while keeping weight under control and maintaining a signal-to-noise ratio of 103 dB and total harmonic distortion of just 0.5%—guaranteeing clean, undistorted signal delivery to your speakers.

Connectivity & Signal Control

Multiple input options—balanced XLR, 1/4" and RCA inputs—adapt to any signal source, while selectable input sensitivity at 1.4Vrms and .775Vrms ensures the amp operates at full power regardless of your source level. Touchproof binding post and speakON outputs provide secure, professional speaker connections, and the integrated PureBand™ Crossover System with band pass filter per channel and Peakx™ limiters gives you precise frequency control and speaker protection across a variable crossover range of 30Hz to 3kHz.

Key Features

• 650 watts per channel at 4 ohms; 375 watts at 8 ohms; 1,050 watts at 2 ohms
• 2,100 watts per channel at 4 ohms and 1,300 watts per channel at 8 ohms in bridge mode
• Class D amplifier with Crown's patented DriveCore technology
• Two-channel audio output (2.0)
• Total Harmonic Distortion: 0.5%
• Signal-to-Noise Ratio: 103 dB
• Damping factor of 200
• Balanced XLR, 1/4", and RCA inputs with selectable sensitivity (1.4Vrms / .775Vrms)
• Touchproof binding post and speakON outputs
• PureBand™ Crossover System with band pass filter per channel
• Peakx™ limiters for speaker protection
• Crossover frequency variable from 30Hz to 3kHz on 1/12th octave centers
• Dimensions: 483mm (W) × 212mm (H) × 89mm (D); Weight: 4.9 kg (less than 11 lbs)

The XLS 2002 combines efficient Class D amplification, comprehensive DSP control, and professional I/O in a format light enough to transport yet powerful enough to handle demanding live and fixed installations with clean, reliable performance.
