Pioneer RT-909 Multi Voltage 4-Track 2-Channel Stereo Auto Reverse Open Reel Tape Deck

Very low hours, remarkable overall condition

Pioneer's flagship consumer open-reel deck in the rarely seen factory original packaging, just out of the shop and ready to perform

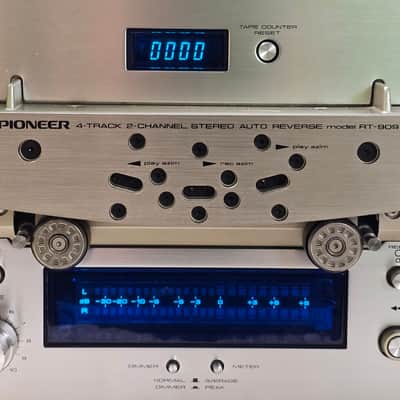

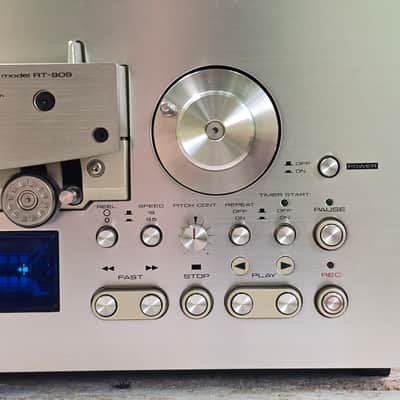

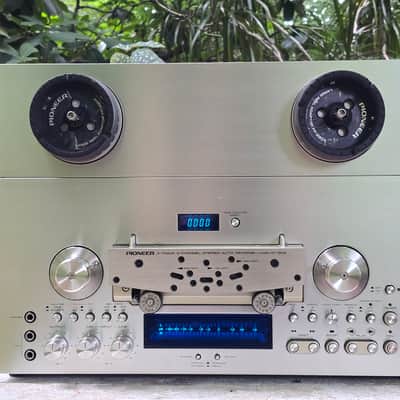

The RT-909 was Pioneer's top-of-the-line consumer reel deck — 4-track/2-channel, auto-reverse, dual-capstan drive, four heads, fluorescent bar-graph meters, variable pitch control, and the capacity to run up to 10.5" reels. This is a multi-voltage model, currently set up for US spec. This is a low-use example, serviced by a qualified technician August 2026. All functions tested and passed, expected to perform reliably for long term use.

THIS UNIT

This RT-909 has been carefully preserved and carries very few original hours. Due to a long period of disuse, all rubber transport parts (pinch rollers, belts) were replaced, the transport was fully re-lubricated, and controls were cleaned, flushed, and exercised. All functions have been tested and passed — this deck is expected to perform reliably for long-term use.

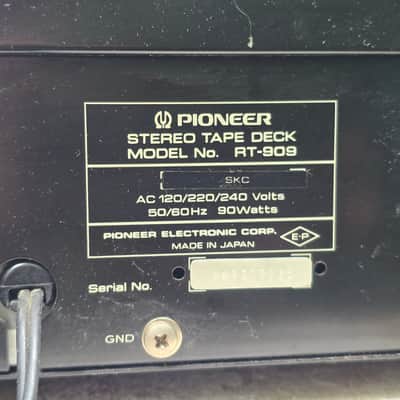

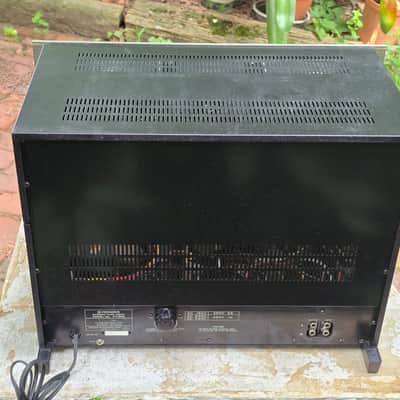

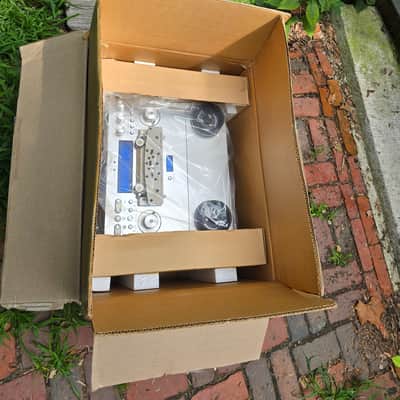

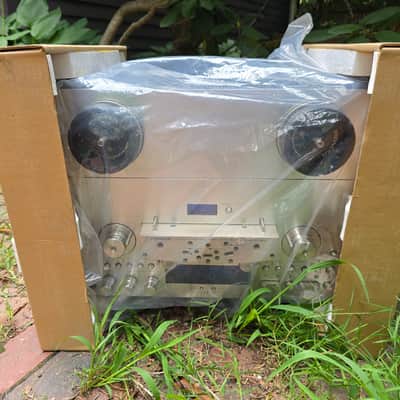

Cosmetically, the face is excellent, showing only very light indications of age and usage. This is a multi-voltage unit (120/220/240V selectable via the rear voltage selector), making it suitable for use worldwide. It ships in the rarely seen original Pioneer double-walled shipping box and foam shipping suspensions (themselves in very good condition), with the deck itself further protected in an outer shipping carton for transit.

SERVICE PERFORMED

• New belts and rollers
• Full clean and lubrication throughout
• All tensions, voltages, and levels reset
• EQ and bias calibrated to Maxell UD tape
• Speeds set and verified
• All switches and controls cleaned
• Tape path set up; heads realigned
• Variable speed tested
• Heads cleaned and demagnetized

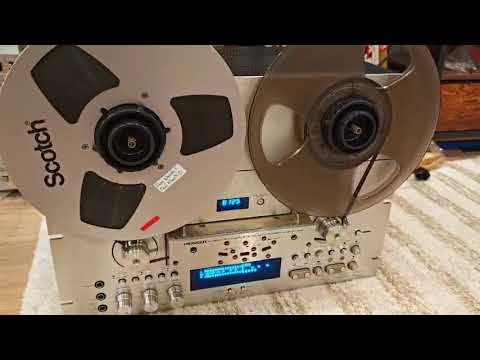

• Test-recorded 30 minutes, played back in both directions; auto-reverse function tested and confirmed

SPECIFICATIONS

• Track format: 4-track, 2-channel stereo
• Auto-reverse: yes

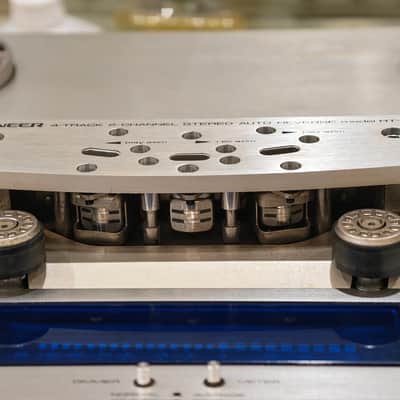

• Heads: 4 (erase / record / 2 × playback — forward and reverse)
• Motors: 3 (2 × reel, 1 × capstan)
• Drive: closed-loop dual capstan
• Speeds: 3¾ and 7½ IPS
• Frequency response: 20Hz–28kHz (±3dB) at 7.5 IPS
• Wow & flutter: 0.04% or better at 7.5 IPS
• Reel capacity: up to 10.5"

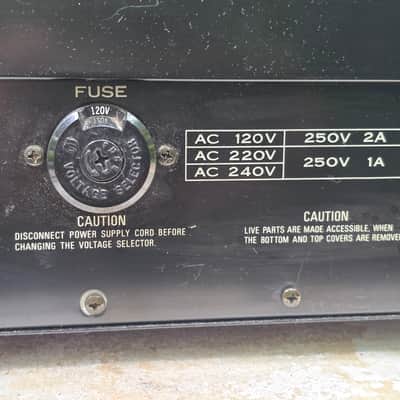

• Voltage: multi-voltage, currently configured for US 120V (250V 2A fuse)
• Weight: approx. 46 lbs.
• Made in Japan (1979–1984)

Ships worldwide, or local pickup can be arranged. Estimated cost of international shipping is based on delivery to Australia, the furthest distance from my location. Please inquire for an estimate to your specific address outside of the USA. The package will be large, heavy, delicate, and insured for full value, so shipping may be a significant expense.
