Neuzeit Instruments Warp 2023 - Black

Neuzeit Instruments Warp

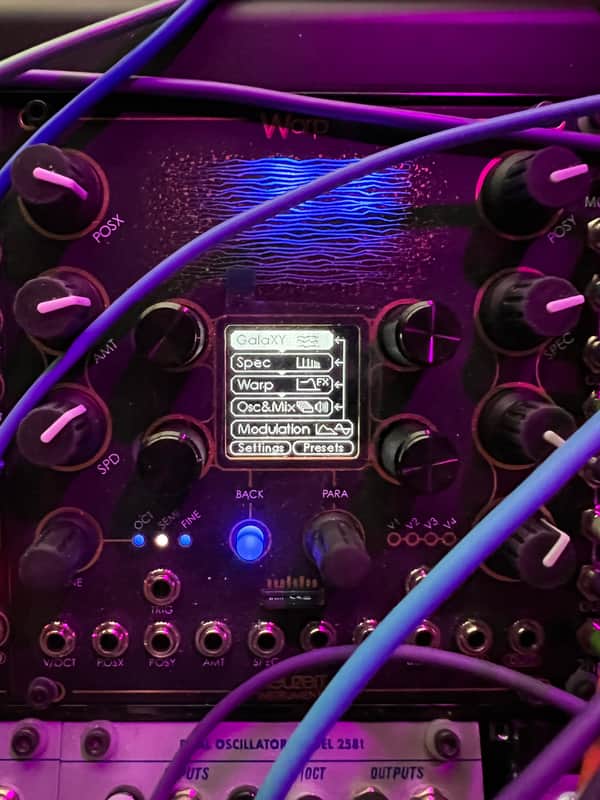

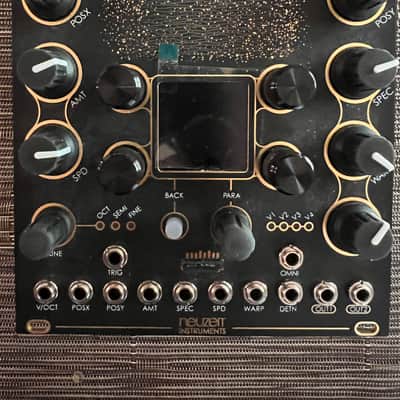

Neuzeit Instruments' Warp is a hybrid additive/wavetable synth voice that uses two oscillators for each of the four voices and features an onboard waveform editor easily usable via the centralized screen. The most eye catching feature is the colorful XY matrix that gives you realtime information on how your sound is traveling through the sonic plane. Using frequency spectra and 512 sines per oscillator, you can generate some incredible and unique sounds. The integrated editor lets you draw your own waveshapes using the matrix and screen, as well as load your own external spectral sources via the SD card reader.

Warp can be a self-contained voice with two EGs and built-in VCAs, along with 2 LFOs for internal modulation. A future expander will allow you polyphonic operation via MIDI. WIth CV control aplenty and an easily navigable interface, the Warp from Neuzeit is an incredible oscillator and voice for any rack.

Warp Features

• Hybrid additive/wavetable synth voice
• 4 Voices with 2 oscillators
• Macro controls for maximum playability
• 512 Sines per oscillator
• XY Sound space is a collection of 32x16 spectra
• Each voice travel independently across XY space
• Spectral and Wavetable FX
• 2x Post filters per voice: 12db/24db low pass and high pass
• Independant oscillator settings per voice
• Integrated modulation with 2x ADSR and 2x LFOs
• Stereo 24 bit output
• Integrated editor

Product Details

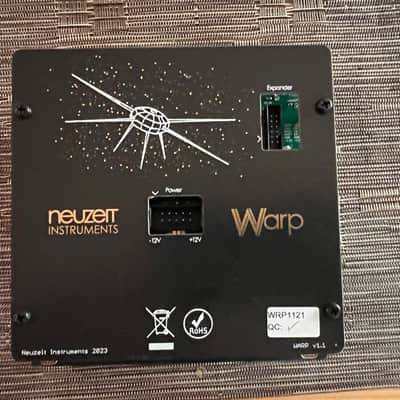

• Eurorack module
• Width: 24hp
• Depth: 30mm
• Current draw: 205mA @ +12V, 20mA @ -12V

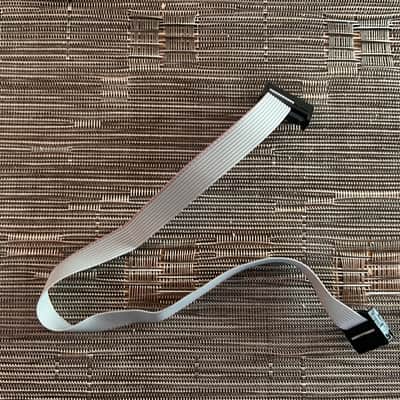

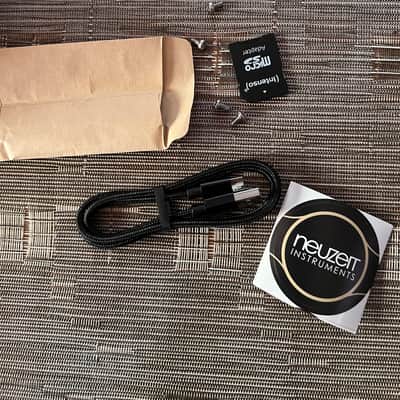

• Includes original box, sticker, screws, module, cable, usb cable
• Note: screen protector has been on since purchase of new unit so the screen is as brand new
• Purchase this along with the Warp EX module I have listed and save $20 and get combined shipping!
