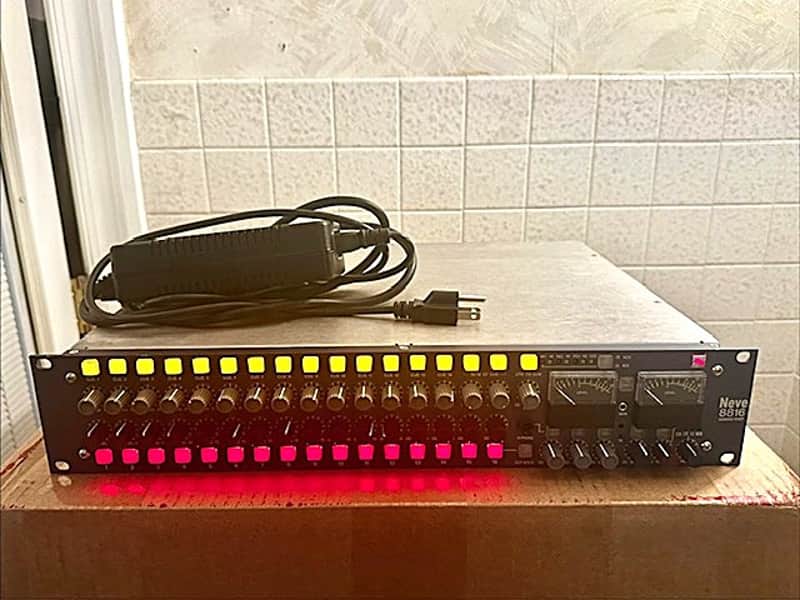

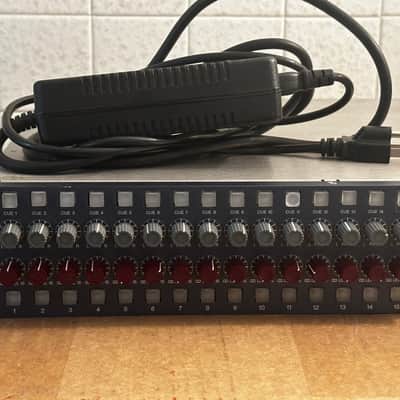

Great condition Neve 8816 Summing Mixer with power supply. Pro tested. Sounds great!

Ready to go to work in your studio.

AMS Neve 8816 Summing Mixer Features:

• Packs the sound and functionality of a Neve console into a 2U rackmount unit
• Contains genuine Neve 80-series topology, including 2 custom Marinair transformers
• Ideal for tracking, overdubbing, submixing, summing, and mastering alike
• 16 channels of analog summing add color and vibrancy to every project
• Each channel boasts rotary Level and Pan controls, plus Cue and Cut/Solo buttons
• Mix insert points for adding effects to individual channels
• Comprehensive cue mixing for creating custom-tailored headphone mixes
• Main stereo insert send/return for adding processing to your mix bus
• Width knob supplies high-end-mastering-studio-level stereo image enhancement
• Main/alternate speaker outputs enable referencing on a second set of studio monitors
• 2-track return, auxiliary input, and dual headphone outputs
• Sends/returns boast a Mid-Side mode for added flexibility
• Hidden talkback mic is engaged with a push of the headphone level knob

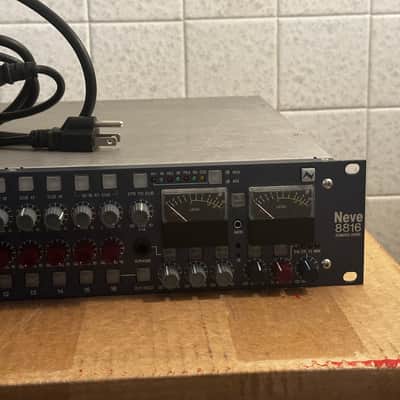

• 2 quasi-PPM VU meters for the main outputs, plus analog and digital clip indicator LEDs
• USB port allows for recall of your settings via control software on your Mac or PC
• Cascade up to 32 units for up to 512 channels

General Specification

• Hand-built, hand-wired 16-channel summing mixer for use in professional computer-based studios
• Classic Neve analogue transformer mix bus topology
• Instant Recall of settings stored on PC or Mac via USB
• 16 input channels plus aux additional inputs
• Cue, Level, Pan, Solo and Mute controls
• Mix Insert points
• Various solo and solo in place functions
• Sum and difference insert with exclusive ‘Stereo Width Control’
• Separate Monitor and Cue levels
• Main and Alt speaker outs
• Onboard talkback mic w/talkback input to Cue
• Units can be cascaded for multiple outputs
• 2U rackmount design with special shielded power supply
• 2 track return, plus iPod input
• Headphone outs on front and back

Audio Performance

• Input impedance: (balanced+4dBu) >20k Ohms
• Output impedance: (balanced +4dBu) 50 Ohms
• Max input level: (balanced) >+26dBu
• Max output level: (balanced) >+26dBu into 600 Ohms,  (unbalanced) >+14dBu into 600 Ohms
• Frequency Response: Channel 1 line input to main output 20Hz to 20kHz +/- 0.5dB Better than –3dB @ 60Hz
• Noise: No channels routed. Better than -86dBu. 20Hz to 20kHz bandwidth. 1 channel routed. Better than -85dBu. 20Hz to 20kHz bandwidth. 16 channels routed. Better than -80dBu. 20Hz to 20kHz bandwidth
• THD Channel 1 line input to main: 0Hz to 20kHz, better than 0.02%
  measured at +20dBu into 10 Ohms with 80Hz filter

Dimensions

• Width: 482.6mm (19 inches)
• Height: 88mm (3.5 inches)
• Depth: 390mm (15.4 inches)
• Weight: 7kg (16 pounds)
