New RockBoard MOD 5 Cab SIM & DI Patchbay for Pedal Boards

This item is new!

Orders placed before 12:00 PM Eastern Standard Time will ship same day! Orders placed after 12:00 may ship same day and if not, they will ship next day.

I am an Authorized Dealer, a store receipt will be included with your purchase.

Check my feedback and buy with confidence!

From RockBoard:

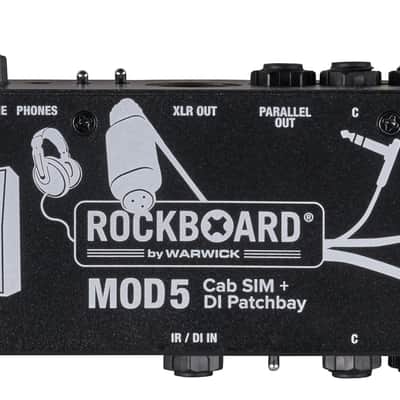

The RockBoard MOD 5 Cab SIM + DI Patchbay offers 6 selectable IR-based stereo cabinet simulations, an active DI box, and an easy way to organize all connections to and from your effects setup. It doesn’t matter if you're using a RockBoard or another brand of pedalboard, the MOD 5 opens up a whole new world of possibilities. With speaker cabinet simulation and DI, you can hit the ground running and have YOUR sound ready, no matter what backline is available at the venue. You want to use your personal favorite cabs? No problem, just load an Impulse Response of the sound into the MOD 5 and you can take it with you wherever you go.

The patchbay section is used to route connections from underneath your pedalboard to the front, providing you with a central access point to your setup and eliminating cable clutter.

A headphone amplifier with adjustable output volume is integrated for quiet playing with your pedalboard.

With four TRS-Through connections, the MOD 5 integrates perfectly into a setup. It is the ideal solution to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4-cable method).

Thanks to the removable front panel, it is also possible to use this ingenious module with pedalboards from other manufacturers, e.g. with our 'Mounting Rack'.

Details at a glance:
cabinet simulation & DI patchbay
IR-based speaker cabinet simulation
6 integrated IRs selectable
support of additional Custom IRs (max. 1024 pts.)
integrated active DI box
headphone amplifier
fits MOD slots in RockBoard pedalboards
compatible with a wide variety of other pedalboards
acts as the central access point to your effects setup
establishes clean cable paths to and from the pedal board

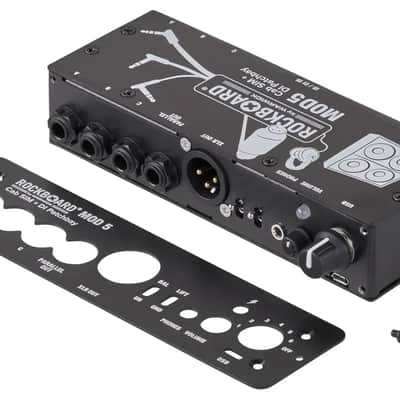

detachable front plate for mounting on top or underneath pedalboards
selectable MONO / STEREO input
selectable UN / BALANCED output
ground lift switch
control for Phones Volume
3 x 6.3 mm / ¼" TRS thru jacks

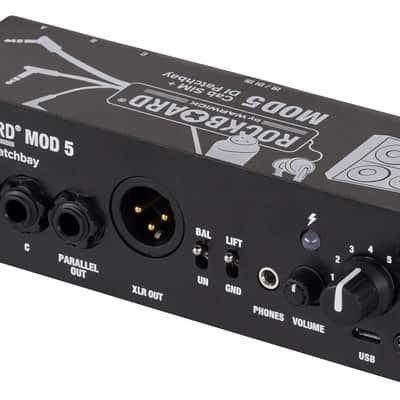

1 x XLR DI Out
1 x 6.3 mm / ¼" Parallel TS output
1 x 3.5 mm / 1/8" stereo headphone output with adjustable volume

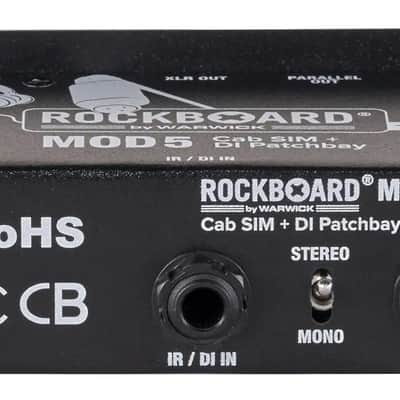

1 x 6.3 mm / ¼" parallel IR/DI TS input
micro USB connection for firmware updates and loading custom IRs
power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
current draw 300 mA
battery operation not supported
dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
weight 470 g / 1.04 lbs.
incl. mounting screws, counter nuts, and TX wrench
