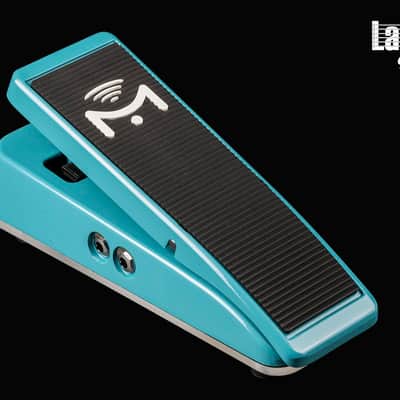

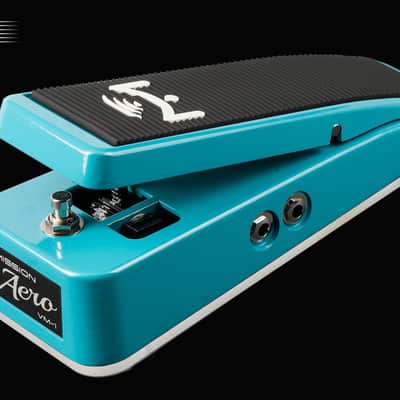

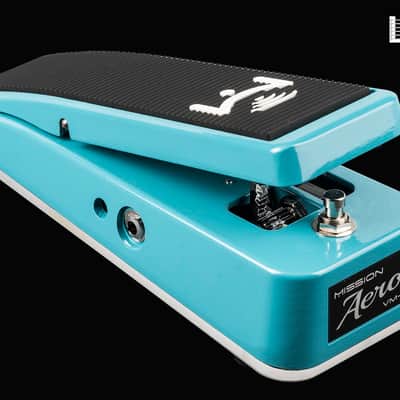

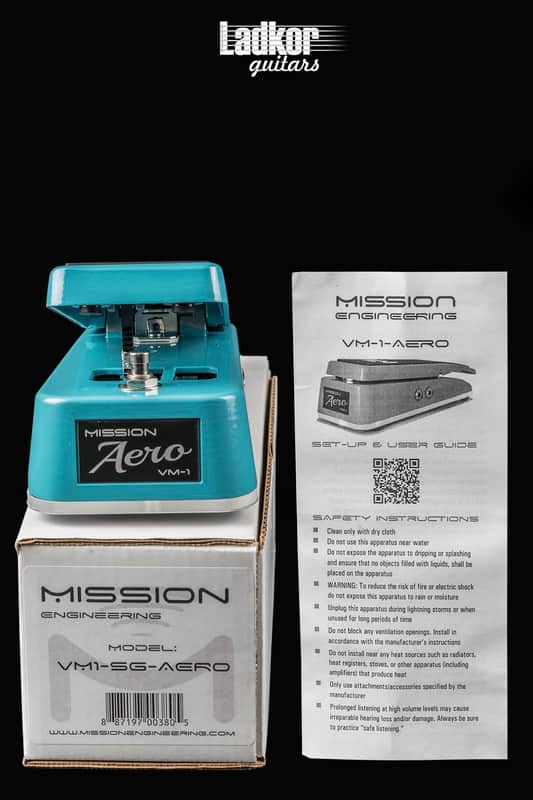

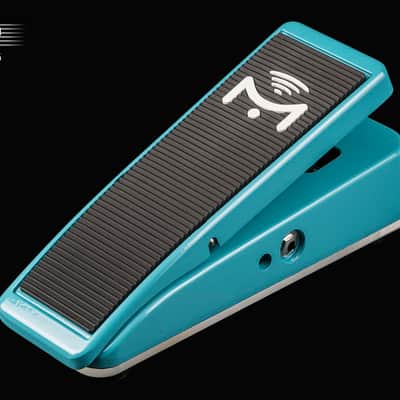

Mission Engineering VM-1 Aero Surf Green Volume Pedal

Mission Engineering VM-1 Aero Surf Green Volume Pedal

Model - VM1-SG-AERO

Color - Surf Green

The extended sweep of the Aero design and switchable tuner mute, make this a great all round guitar volume pedal

The rear cut away and extended length curved surface are ergonomically designed for comfortable use in either standing or sitting positions.

With a passive ‘no tone suck’ circuit, the VM-1 Aero features an isolated tuner output and integrated mode switch. All VM-1 Aero models also include Missions illuminated base. Visible from any position, the transparent acrylic base illuminates indicating the selected mode.

Active Mode
Main Output is active with zero volume at heel down and max volume at toe down. Tuner output is disconnected to avoid tone suck. Base illuminates green by default but can be changed to blue (using an internal switch).

Tuner Mode
Tuner output is enabled. The main output is attenuated providing reduced volume at toe down, and zero volume at heel down allowing tuning silently, or with a small amount of audio. Base illuminates red.

The VM-1 Aero is intended for use first in the signal chain with passive electric guitar pickups only. For other applications, we recommend the Mission VM-PRO

Illumination requires a 9V battery (included) or external power supply (not included) 9VDC 2.1mm center pin negative. Power required for LED’s only. Volume controls will function as normal without power.

Input Impedance:
470K Ohm

Current draw, nominal:
20mA (180mW) at 9VDC

Battery Life, typical:
20 hours

Pedal dimensions are 11″ x 4″ x 3″
Weight is 4.0lb
