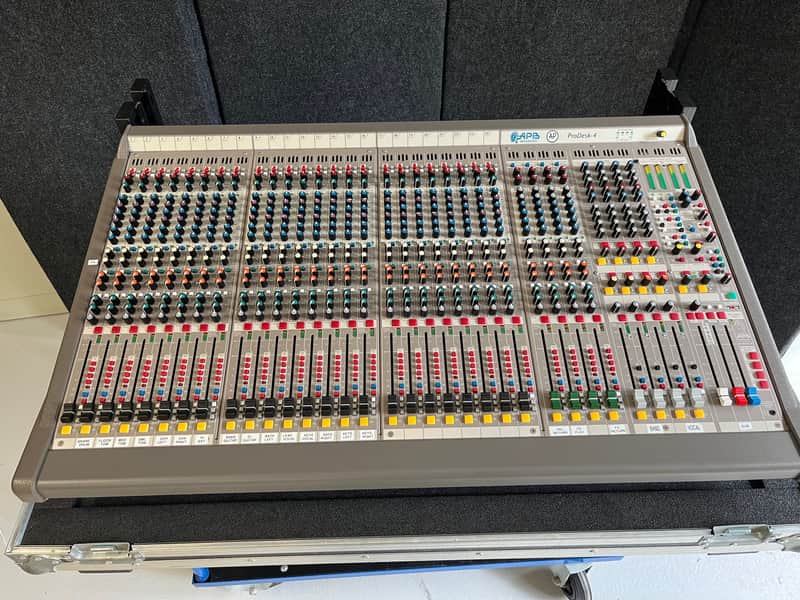

APB-Dynasonics Prodesk 4 analog console 2015 - grey

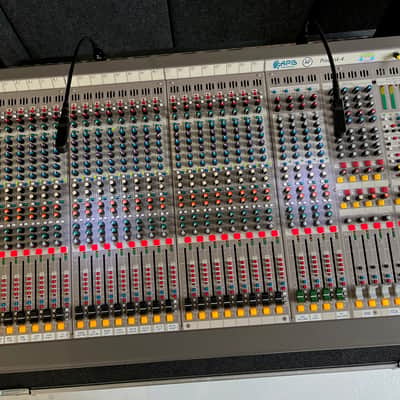

APB-DynaSonics' ProDesk-4 small-format front-of-house consoles incorporate a wealth of professional features derived directly from the companies APB Spectra Series of consoles. Intended for use in Production, AV and Contracting applications, ProDesk-4 stresses simple operation while providing uncompromised audio quality in a compact package.

All versions include 4 Stereo Line input channels with Split Track capabilities.

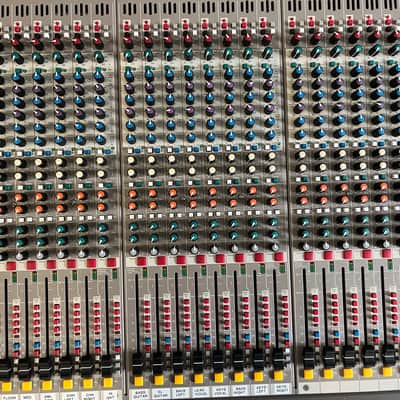

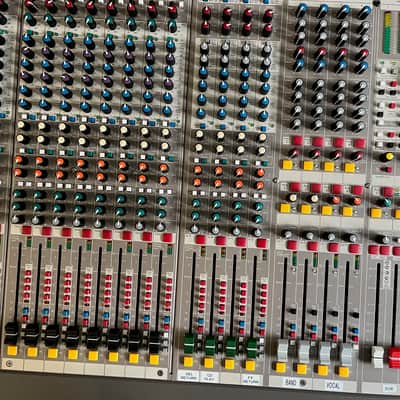

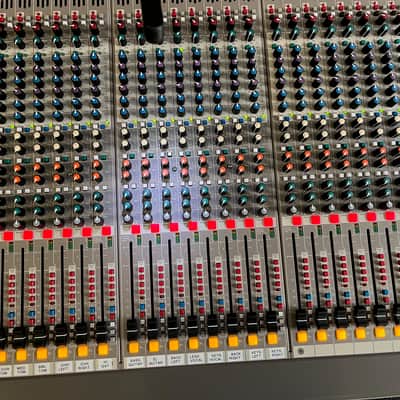

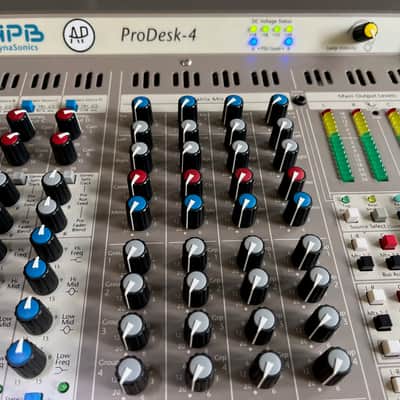

- Input channels include high quality 100mm Faders, Internally illuminated Mute and PFL switches, 6 segment channel metering, 48 Volt Phantom

Power switch with LED, mic/line, Pad and Polarity Reverse switches. .

- 6 Auxiliary sends are switchable pre/post fader in pairs and pre/post EQ as a group and include 1 pair of

auxiliary sends that are switchable between mono and stereo operation,

- 4 band EQ with sweepable mid-frequencies with a 1 octave bandwidth and EQ On switch with LED, Variable High pass filters with a 20Hz-400Hz

with On switch with LED.

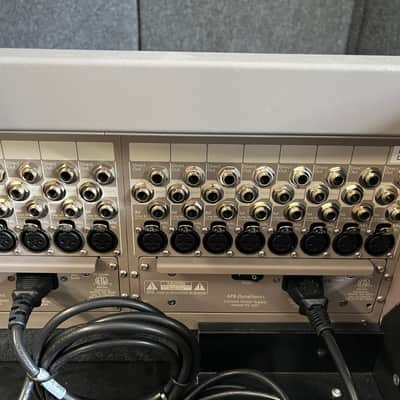

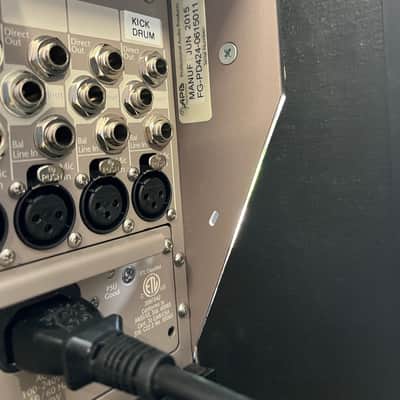

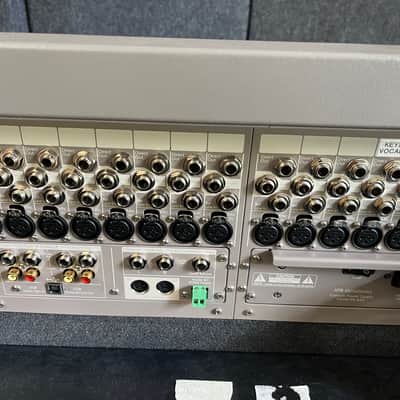

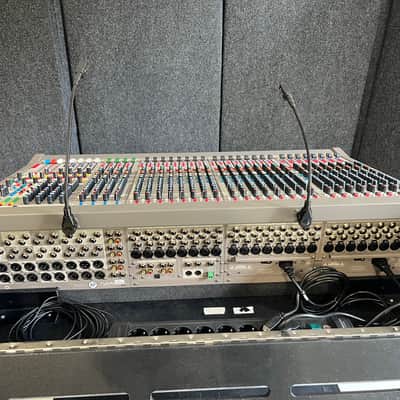

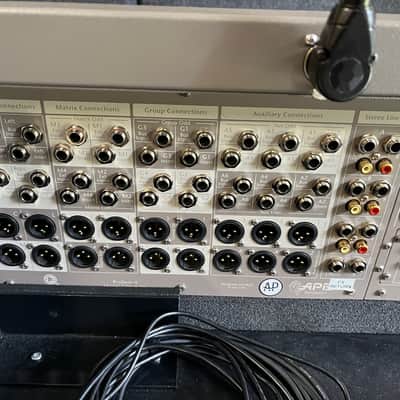

- Outputs include 4 analog subgroups, 4 matrix outputs, Left/Right, Center, and Mono (subwoofer). All include XLR Balanced output connectors,

TRS pre fader insert points, and TRS Balanced bus inputs.

- Digital USB Stereo Input and Record Output.

- Remote muting of all primary outputs using a single Opto Isolated Phoenix connector.

- Spectra derived construction includes the use of mother and daughter board construction for easy service and uncompromised performance.

- Low phase shift direct coupled circuit design and extended bandwidth design.

- 2 Plug in Power Supply (same unist as used on Spectra Consoles) for ultra reliability.

- Depth: 23.5” Height: 8.9” Width: 38.8''

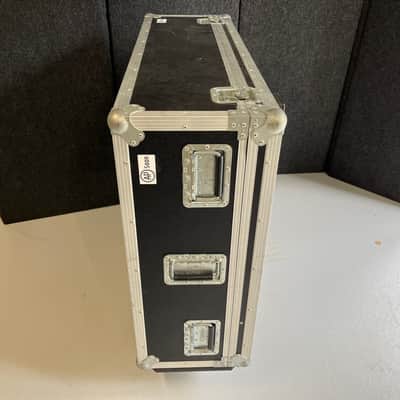

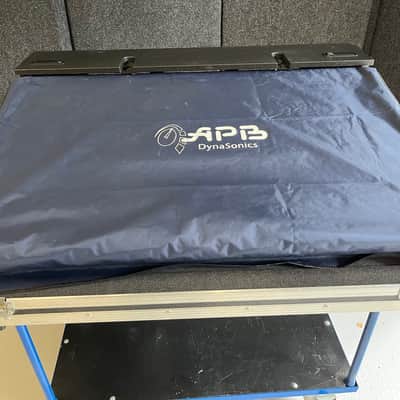

- Road case included.
