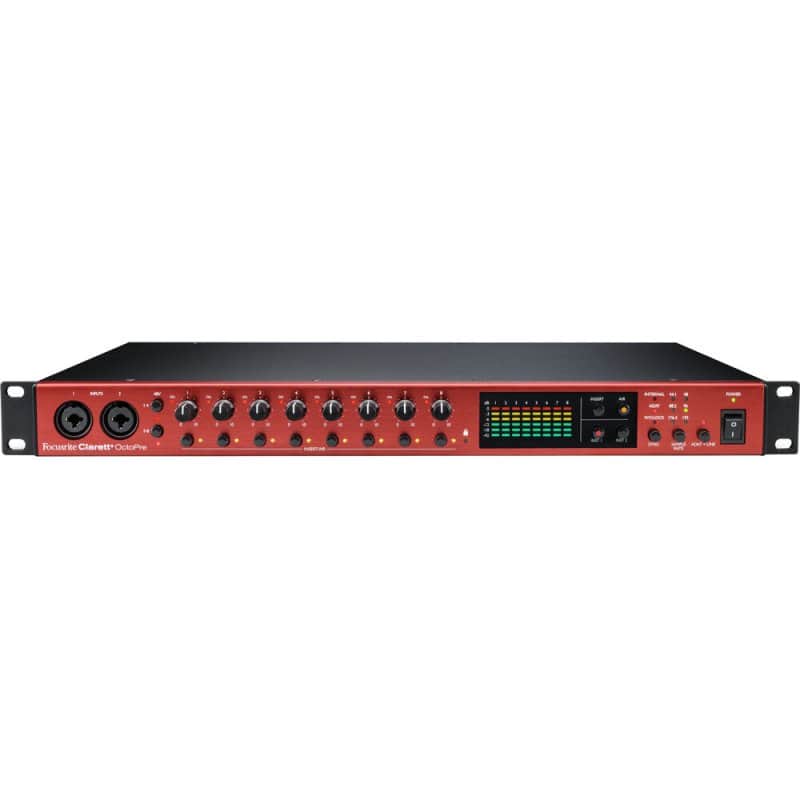

The Focusrite Clarett+ OctoPre is an eight-channel mic preamp with ADAT I/O, designed to expand the channel count of any ADAT-equipped audio interface or digital mixer.
Preamps and Insert Points
Eight Clarett+ preamps, each with the all-analogue Air circuit, provide 57dB of gain with -129dBu EIN and 118dB dynamic range. Channels 1 and 2 include front-panel high-impedance JFET instrument inputs. Switchable insert points on every channel allow inline processing through external compressors or EQs. Eight analogue outputs on a rear-panel DB-25 connector provide simultaneous analogue and digital routing.
ADAT Connectivity
Four TOSLINK connectors handle ADAT I/O: eight channels at 44.1/48kHz via a single cable, eight channels at 88.2/96kHz across two cables (channels 1-4 and 5-8), or four channels at 176.4/192kHz. Word clock I/O ensures tight synchronization in multi-device setups.
Connectivity
2 x XLR/1/4" combo inputs (front panel, channels 1-2 with Hi-Z instrument)
6 x XLR mic/line inputs (rear panel, channels 3-8)
8 x balanced analogue outputs (DB-25)
8 x switchable insert points (1/4" TRS send/return)
4 x TOSLINK ADAT I/O
Word clock I/O (BNC)
Specifications
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic input dynamic range: 118dB (A-weighted)
Output dynamic range: 124dB (A-weighted)
Mic EIN: -129dBu
Mic gain range: 57dB
Phantom power: +48V, switchable in groups (channels 1-4, 5-8)
Form factor: 1U rackmount, 19" x 1.75" x 11.3"
Weight: 9.15 lbs (4.15 kg)
What's in the Box
Clarett+ OctoPre
IEC power cable
Software bundle: Ableton Live Lite, Hitmaker Expansion
PrixC$1,249
Expédition gratuite
Expédition gratuite
depuis Toronto, Canada
Politique de retour de 14 jours
Profitez de votre nouveau matériel en toute sérénité
