About this listing

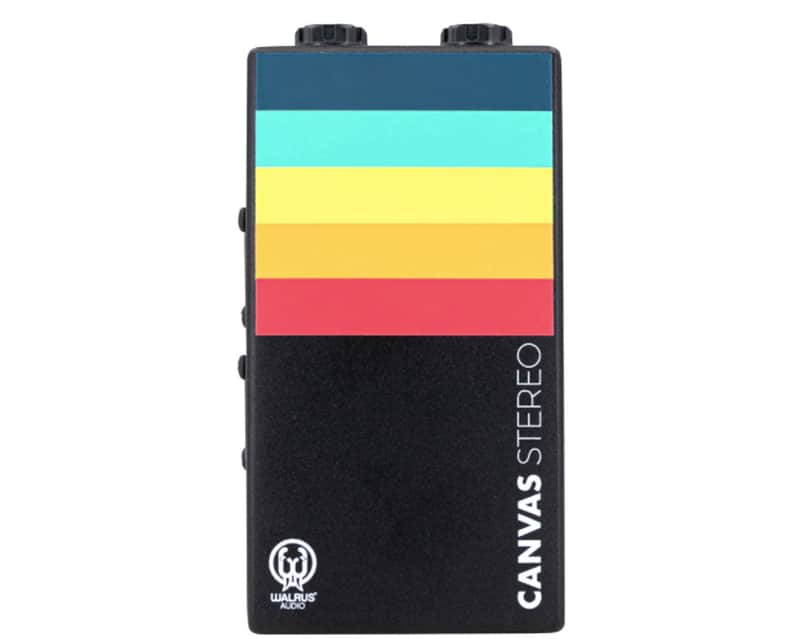

The Canvas stereo is a Direct Box/Line Isolator that features;
Flat frequency response from 20Hz-20kHz
Converts ¼” unbalanced input to XLR balanced output.
Transformer isolated output.
Sum switch
When disengaged (out), the left input connects to the left thru. The right input connects to the right thru allowing the use of stereo amplifiers.
When engaged (in), Sum connects the left and right thru jacks together to combine the signals for running into a single amplifier (use either thru jack).
Pad: Enabled a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimize distortion.
I./L.I.: Choose between Direct Injection or Line Isolator modes (Out for DI, In for LI)
GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
Found Sound Australia Pty Ltd.
110 Albert St
Brunswick East, VIC 3057
Australia
PriceA$402
+ A$18.99 Shipping
