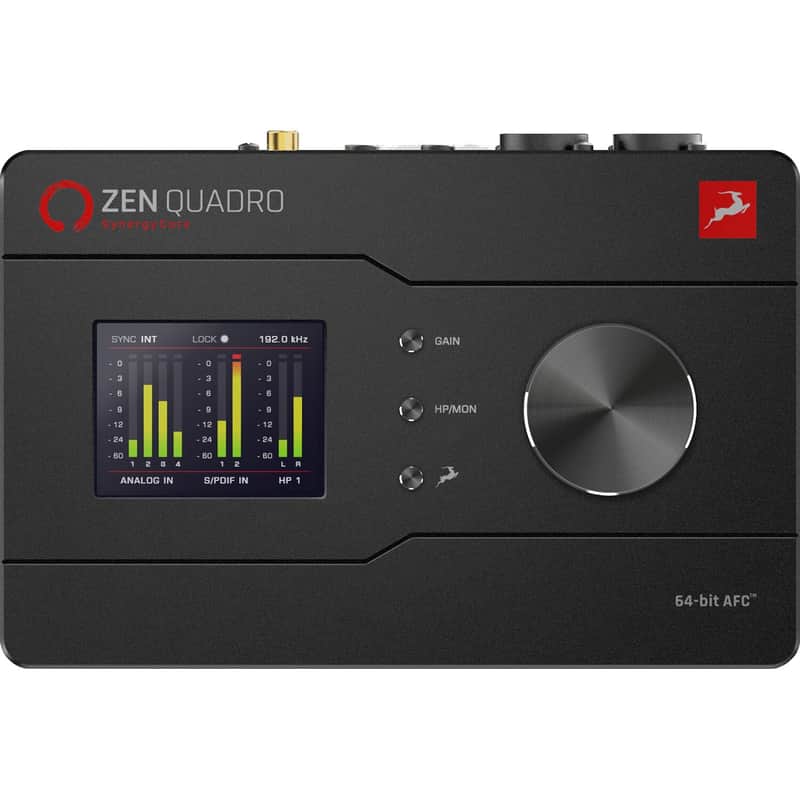

Zen Quadro Synergy Core
The Zen Quadro stretches the limits of modern audio interface technology by implementing top-shelf components into an affordable price and portable bus-powered form factor.
Taking the AD/DA chips from Antelope Audio’s flagship Galaxy range, along with console-grade Discrete preamps with 75dB gain, the Zen Quadro provides creators of all kinds with the same uncompromising sound quality enjoyed by the world’s premiere recording studios.
Synergy Core real-time effect processing and enhanced standalone functionality are only part of the additional features packed into it, while the revolutionary dual-USB design allows simultaneous playback and recording on two systems – making it a no-brainer for all budding producers, musicians, and streamers looking to power up their production setup.
High-fidelity conversion with up to 130dB headroom, paired with 64-bit AFC™ clocking technology for increased sound width, separation, and detail
Four Discrete console-grade 6-transistor preamps for crystal-clear recordings
Real-time Synergy Core processing, for tracking, monitoring and streaming with near-zero latency through faithful digital recreations of legendary studio equipment
Includes 37 effects modeled after vintage analog compressors, EQs, guitar amps, modulation effects and more
Dual-USB design, with secondary USB-C port (OTG) for simultaneous playback and recording on two systems
Easy access to routing and mixer settings, device control and preset recall via large color display provide complete standalone functionality
DC-coupled inputs and outputs for controlling synths via control voltage (CV) signals
Unparalleled AD/DA Conversion and Clocking
Zen Quadro Synergy Core packs the latest gen converters, with up to 130dB dynamic range at 24-bit/192 kHz, outperforming competitors at several times the cost. Paired with Antelope Audio’s proprietary 64-bit AFC™ clocking technology, the interface provides you with a new level of detail in your recordings and wider soundstage for an exceptional stereo image in audio playback – allowing you to make the best decisions for your mix.
Crystal Clear Preamps
The Zen Quadro’s four Discrete preamps are built with a 6-transistor topology inspired by the British and American analog console designs of the eighties and nineties, offering maximum noise reduction and precise sound capture. With extremely low noise and up to 75dB gain, the Zen Quadro can handle even the quietest dynamic and ribbon mics.
Synergy Core: The Magic of Real-time DSP and FPGA Processing
Antelope Audio engineers combined DSP with FPGA chips to model each and every individual component of analog hardware. This ensures sound and behavior that’s virtually indistinguishable from the real thing—with near-zero latency, and zero strain on your computer’s CPU.
Zen Quadro comes with 37 legendary compressors, EQs, guitar amps and cabs, modulation effects and more, that can be applied in real-time during recording, streaming or live performances. Up to 48 mono effect instances can be loaded on 6 input chains simultaneously, putting the power of a complex multi-rack setup on your desktop.
At any time, you can expand your collection with more real-time effects such as Antares’ Auto-Tune Synergy and Grove Hill's Liverpool, available as additional purchases.
Revolutionary Dual-USB Design
The Zen Quadro’s dual USB-C ports unlock a new world of possibilities for creators of all kinds. It’s like having two interfaces in one – freely route signals and create mixes between the two USB connections, using Mac, PC, iOS (USB-C) or Android devices together. The convenient loopback makes it great for streaming, and the secondary port can charge your mobile device while the primary port provides power for the Zen Quadro.
Enhanced Standalone Functionality for Live and Touring
Take the studio on the road with bus-powered USB-C connectivity alongside a durable metal enclosure.
With complete standalone operation, you can easily access routing and mixer controls through the color display, and recall settings and real-time FX chains, making it ideal for live performances. The secondary USB-C port even allows collaboration between duo live acts that are using two computers on stage!
Flexible Connectivity for Your Entire Studio
Four mic/line inputs, two instrument inputs, ADAT input and S/PDIF I/O are at your disposal to record a total of up to 14 inputs simultaneously. On top of the monitor outs, you also get an additional pair of line outs to connect a second pair of speakers or use them for outboard processing. The second headphone out has an independent mixer, so 2 people can listen to different cue mixes at the same time. The DC-coupled I/O can also send and receive control voltage (CV) signals and allow the Zen Quadro to be part of a modular synth setup.
Features
Conversion & Clocking
Class-leading AD/DA conversion with up to 130dB of headroom
Recording, mixing and playback at up to 24-bit/192kHz
Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology & Jitter Management algorithm delivering increased sound width, separation, and detail
Connectivity
4 × Discrete 6-transistor preamps with 75dB of gain
2 x monitor outs and 2 x line outputs via TRS
Two stereo headphone outputs with separate gain control and mix
Two independent USB-C ports (OTG)
ADAT Input (up to 8 ch) and S/PDIF I/O (2 ch)
DC-coupled inputs and outputs for CV control of modular synths
Workflow-Enhancing Features
Direct monitoring with Synergy Core effects processed in real-time
Easy routing via color display
Simultaneous playback and recording with two computers or computer + mobile device
Flexible loopback options for streaming
Customizable presets for routing, levels, mixer, and FX
Customizable monitoring mixes with panning and reverb
Class-compliant with macOS and iOS – no drivers required
Standalone mode via USB power adapter
Remote control over local network
Real-Time Effects Processing
37 included Synergy Core effects modeled after vintage gear
Up to 48 real-time effects instances across 6 input chains
Mic Modeling Engine for pairing with Edge mics and using classic emulations
In-the-Box Content
Zen Quadro Synergy Core
USB-C cable
USB-C to USB-A adapter
Get started guide
Included Real-Time Effects
22 Guitar Amps & Cabs (e.g. Bluelux 1x12, Tube Guitar Amp)
5 Compressors & Limiters (e.g. Stay-Levin, FET-A76, VCA160)
4 Equalizers (e.g. VEQ-1A, VMEQ-5)
2 Preamps (Gyraf Gyratec IX, BA-31)
2 Special Processing Effects (Expander, Noise Gate)
1 Reverb (Auraverb)
1 Guitar Tuner (A-Tuner)
Full List of Effects
Gyraf Gyratec IX
VCA160
Stay-Levin
FET-A76
VEQ-1A
VMEQ-5
X903
PowerFFC
Clear Q
Power EX
VEQ-HLF
Auraverb
BA-31
Power Gate
A-Tuner
Plexi 59 (UK)
Bass SuperTube VR
Darkface 65 (US)
Top30 (UK) Bright
Tweed Deluxe (US)
Overange 120 (UK)
BurnSphere (DE) Lead
Marcus II (US) Lead
Modern (US) CH3
Rock 75 (UK)
Rock 22.10 (UK)
Darkface 65 2x12
Top30 2x12
Modern 4x12
Green 2x12
Vintage 4x12
Green 4x12
Caliper 50 1x10
Bluelux 1x12
Clst 1x12
England 4x12
Bass Tube 1x15
PriceC$985
