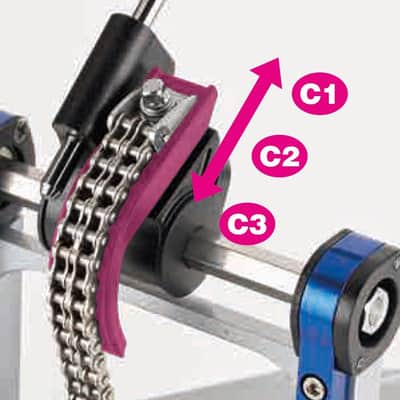

<Quick Adjusting Cam/Link for Chain Drive>

The double chain drive provides even tension with each pedal step. By changing the cam to C1, C2, or C3 (please refer to the image), it is possible to set it to lighten the action at the beginning of stepping.

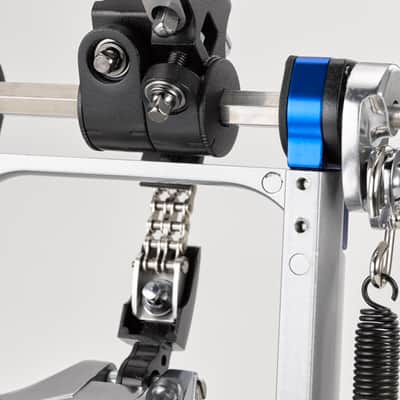

<High-precision split frame structure>

A blue part processed with high precision is adopted as a ball bearing insertion part. By combining the blue parts with a frame that has been subjected to flat processing, the blue parts with built-in ball bearings are arranged with high accuracy. By arranging the rocker shaft accurately and straight, it prevents rattling of the ball bearings and realizes smooth operation. Thorough pursuit of precision in detail enables smoother rotation of ball bearings and rocker shafts. Accurately responds to foot pedal work of various playing styles, and strongly supports the performance of drummers.

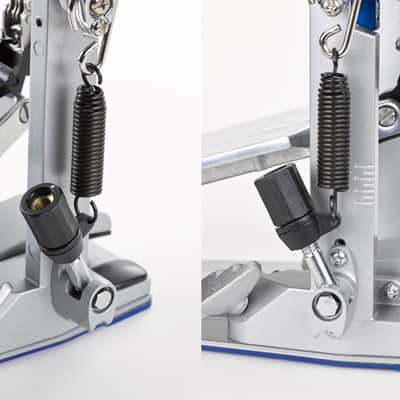

<Auto lock spring tension>

By making the spring tension adjustment part upward, it is possible to easily adjust the spring tension while the drummer is sitting on the stool. The adjustment knob locks every 90 degrees of rotation to prevent loosening while playing. In addition, the adjustment part swings to achieve a more natural expansion and contraction of the spring.

<Original Beater / Dedicated Weight>

A dedicated weight can be attached to the bottom of the FP9 original beater. By attaching the included aluminum (3g) and brass (9g) special weights, you can expand the range of sound makeup and performance.

<High-precision, low-position heel structure / heel spike>

Adopted a design that lowers the heel position. The hinge part is equipped with a cover (blue part) processed with high precision to improve the stability of the footboard. It enables smooth pedal work.

In addition, spikes are mounted on the footboard heel. This prevents the foot pedal from slipping while playing and improves stability and operability.

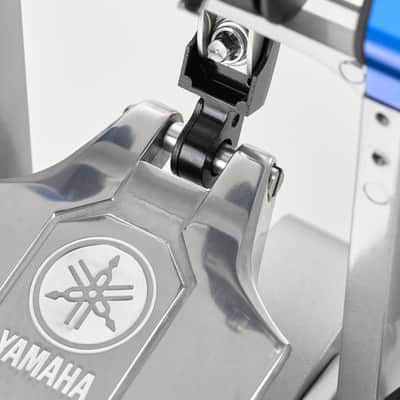

<Ball bearing for drive connection>

A ball bearing is installed in the part that connects with the drive at the tip of the footboard. I realized smoother playability.

<Footboard/beater angle adjustment>

Adopted a design that separates the footboard and beater angle adjustment parts. It is possible to set at any angle. In addition, it has a memory line that allows you to check the angle, so you can easily reproduce your favorite settings at any time.

<Carrying case>

All FP9 models come with a dedicated compact semi-hard case.
