About this listing

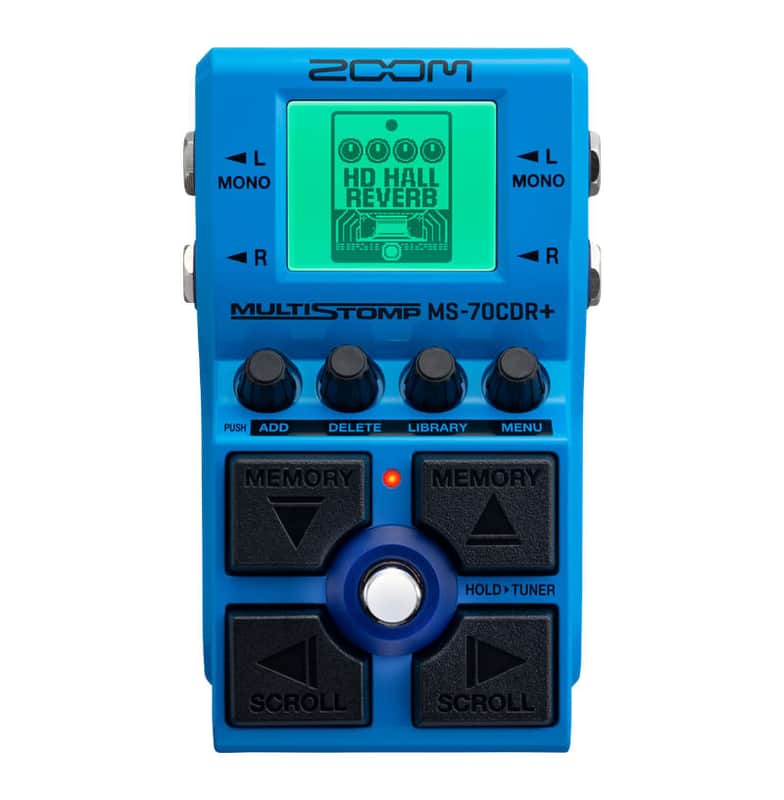

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.
140+ guitar and bass effects, including modulation, chorus, delay, and reverb
Use up to 6 effects at the same time
100 Patch slots with 80 presets
Analog circuit with minimal sound deterioration
Single stompbox design
Stereo input and output supports effects like stereo chorus and delays
4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
Improved UI for easier navigation and control
Color coded LCD backlight for selected effect category
Runs on 2 AA batteries or AC Adapter
Specifications
Maximum number of simultaneous effects
6 effects
User patch memories
100
Sampling frequency
44.1 kHz
A/D conversion
24-bit 128× oversampling
D/A conversion
24-bit 128× oversampling
Signal processing
32-bit
Frequency response
20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display
160×128 dot-matrix LCD
Inputs
L/R
Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs
L/R
Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N
122 dB
Noise floor (residual noise)
L/R
–100 dBu
Power
AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation times
• These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions."
Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input)
USB
Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions
133 mm (D) × 79 mm (W) × 61 mm (H)
Weight
368 g (excluding batteries) 415 g (including batteries)
