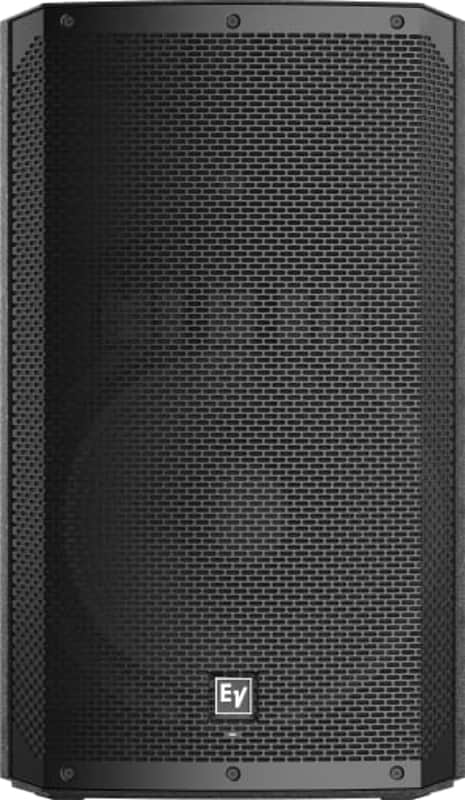

Shipping Policy: Please note that we currently ship within Canada only. Offers and orders from outside Canada will not be accepted.ELX200-15P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (15-inch EVS-15M woofer coupled with a DH-1C 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The ELX200 series offers professional Electro-Voice audio quality, precision control, and robust, EV-engineered components in an ultra-lightweight package a truly potent blend of performance and portability.
Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
Perfect for both portable and installed applications
Lightweight package with heavyweight performance
QuickSmartDSP provides best-in-class processing via EV’s signature single-knob user interface with LCD
Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance
Speaker Dimensions (18")
Height: 19.70"
Width: 16.80"
Depth: 15.50"
Weight: 41.70 lbs
Available Color
Black
Connector Type
(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Coverage (Nominal -6 dB) H
90 °
Coverage (Nominal -6 dB) V
60 °
Crossover Frequency
1600 Hz
Depth
384 mm
Enclosure Material
Polypropylene
Family
ELX200
Frequency Range (-10 dB)
48 Hz – 19 kHz
Frequency Response (-3 dB)
55 Hz – 16 kHz Hz
Grill
18 AWG steel with powdercoat
Height
710 mm
HF Transducer
DH-1C 1-inch titanium compression driver
LF Transducer
EVS-15M 381 mm (15 in)
Max. SPL/1m (calc)
132 dB
Power Consumption
100 - 240 V~, 50 - 60 Hz, 1.8A
Power Rating
1200 W
Powered or Passive
Powered
Shipping Weight
21.8 kg
Speaker Type
Full-Range
Suspension
(3) M10 suspension points
Where to buy
Musicredone.com
Weight Net
18.9 kg
Width
423 mm
Woofer Size
15 inch
PriceC$1,379
Only 1 left
