Brand new - Closed Box
We are Millennia Media distributors, among 100 other excellent brands.

Note: For specific shipping rates outside Europe please message us before buying.

Note 2: We sell without taxes anywhere outside Europe and to valid VAT ID companies inside Europe. Please ask us your price without Tax in those cases.

NOTE 3: ships direct from factory. Allow 10 to 15 days for shipping.

Over 130 Optimized Signal Topologies

• Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state
• Twin NSEQ-2 Mastering-Grade Parametric EQs — vacuum tube or discrete solid state
• Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive
• Twin Opto De-Esser Paths — vacuum tube or discrete solid state
• Vacuum tube or discrete solid state line level paths
• Input coupling with or without MIT-01 audio transformer
• 1/4” vacuum tube DI input — route via tube or solid state gain path
• Effortless, lifelike musical performance at all levels
• Musically rich vacuum tubes available
• Gold audio connectors, tube sockets, relays and switches
• 3/8“ thick radius extruded aluminum face plate
• Durable black mirror-gloss anodized finish
• Mil spec 16 gauge cold-rolled steel chassis
• Ultra-clean toroid power supply: internal sub-chassis
• Hand machined aluminum knobs, illuminated IT&T pushbuttons
• Mogami Neglex OFC audio wiring
• Silver Teflon power wiring

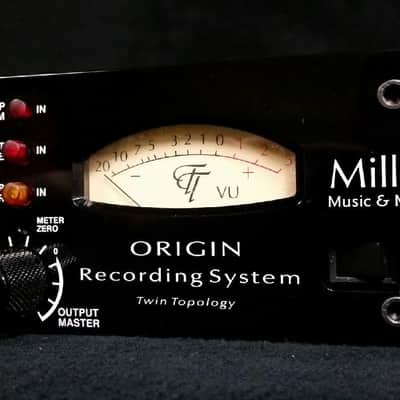

• True audio VU meter for output level or dynamics gain reduction

Specifications

Microphone Preamplifiers & General:

Twin Topology Mic Preamplifier Selection Switchable, Vacuum Tubes or Solid-State

Twin Topology EQ & Compressor Switchable, Vacuum Tubes or Solid-State

Twin Topology Input Coupling Switchable, Transformer or Transformerless

Maximum Output Level (Balanced) + 32 dBu

Frequency Response (+0 / -3 dB (S/S)) sub 5 Hz to beyond 300 kHz

Equivalent Input Noise -131 dBu (SS, Common Source, Direct Out)

THD + Noise (20 Hz - 22 kHz) (S/S) < .05 %, typ < .003 %

Common Mode Rejection Ratio (S/S) > 40 dB, Typ > 70 dB @ 60 Hz

Input Impedance (Mic) 6,200 ohms

Input Impedance (Line) 2,200 ohms (x2)

Input Impedance (DI - Instrument) > 1 megohm

Output Impedance (Balanced) 24.3 ohms (x2)

Parametric Equalizer:

Maximum EQ Boost/Cut Range (21 Step Detented) +/- 15 dB

EQ Frequencies,Low Range Switch (Centers - Peak/Shelf Selectable): 20, 34, 56, 100, 180, 270

Low Mid Sweep: 20 Hz - 220 Hz or 200 Hz - 2.2 kHz.

10X Range switch selectable

Hi Mid Sweep: 250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz.

10X Range switch selectable

High Range Switch (Centers - Peak/Shelf Selectable) 4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k

“Q” Range Q = 0.4 to 4.0 Adjustable on middle ranges

  Q = 1.0 Fixed on low & high ranges

Optoelectronic Compressor/Limiter

Threshold Range Infinite to +20 dBu

Attack Range 2 ms to 100 ms

Release Range 80 ms to 3.0 s

Compression Ratio Range minimum 1.4 : 1, maximum 30 : 1

De-Essing Frequency Switch OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k

Power Consumption 50 watts maximum

Power Requirements Selectable: 100-120, 200-240 V ac, 50/60 Hz

Dimensions/Shipping Weight 19” W x 3.5” H x 15.5” D, 25 lbs.
